4.4.10 Parallel ID setting

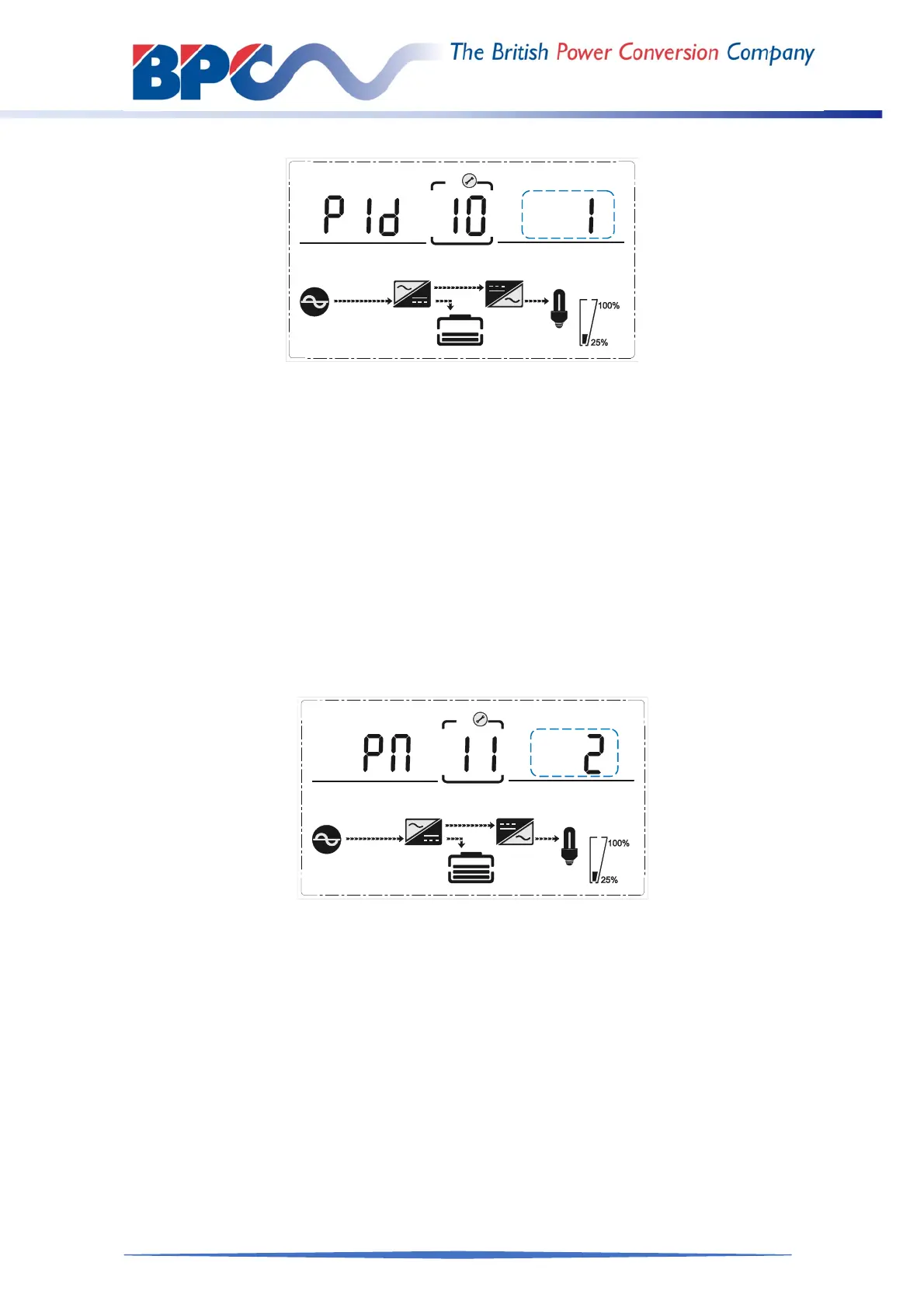

Parallel ID setting
(Note: Inside the broken-line is the flashing part.)
When under the bypass voltage lower limit setting press DOWN or when under parallel
quantity setting press UP, it goes to the parallel ID setting. The parallel ID flashes as in
above picture.
Use button ENTER/ON to set the different parallel ID. The parallel ID range is
1~4.
Press ESC/OFF button to exit the parallel ID setting (save the parallel ID setting)
and goes to bypass lower limit setting or parallel quantity setting.
NOTICE! Parallel cable cannot be connected when setting the parallel parameters.
4.4.11 Parallel quantity setting
Parallel quantity setting
(Note: Inside the broken-line is the flashing part.)
When under the parallel ID setting press DOWN or when under parallel redundancy
quantity setting press UP, it goes to the parallel quantity setting. The parallel quantity
flashes as in above picture.
Use button ENTER/ON to set the parallel quantity. The parallel quantity range is
2~4.
Press ESC/OFF button to exit the parallel quantity setting (save the parallel
quantity setting) and goes to parallel ID setting or parallel redundancy quantity
setting.
