Bradley EFX 8 User Manual

Bradley EFX 8 Thermostatic Mixing Valve with Optional Cabinet
Model S19-2000 Series Installation and Maintenance Instructions
10 Bradley Corporation • 215-1291 Rev. L; EN 07-903A
5/14/08

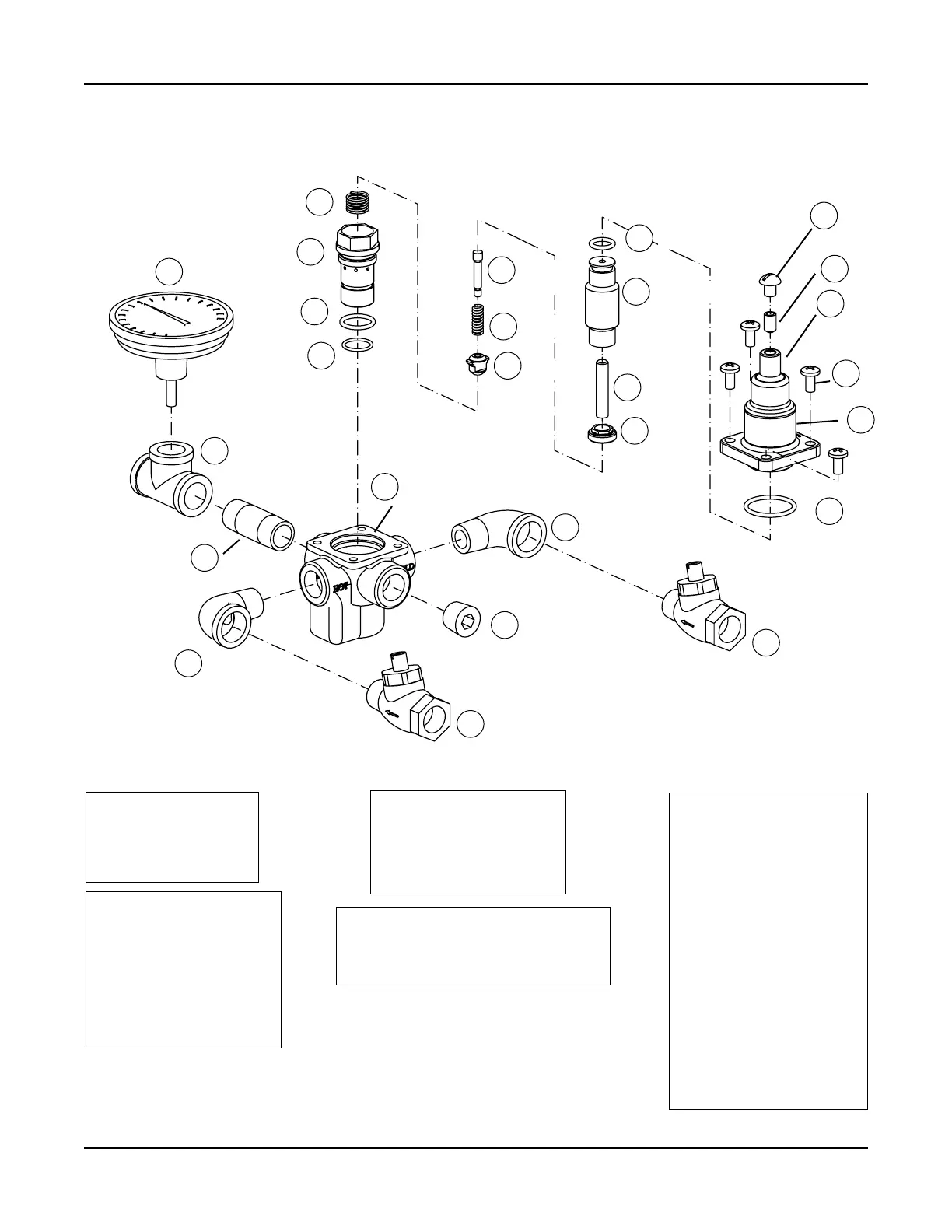

EFX 8: Parts Breakdown and Service Kits (S19-2000)
Thermostat Kit S65-171
Item Qty. Description
12 1 Thermostat
13 1 O-Ring
14 1 O-Ring
O-Ring Kit S65-170
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
13 1 O-Ring
14 1 O-Ring
Flexible Connection Lines for S19-2000EFX.
When used with S19-292 order P/N 269-653
(3 supplied with unit).
Piston & Liner Kit S65-172
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
4 1 Liner
5 1 Spring
7 1 Piston
8 1 Spring
9 1 Overheat Screw
NOTES: As of November 2001, the piston (Item 7) has replaced the
seal holder and seal as a direct replacement.
As of June 2008, the brass control cap (item 15) has been
replaced by a plastic cap. All internal components are identical.
Center Section Kit S65-303
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
4 1 Liner
5 1 Spring
7 1 Piston
8 1 Spring
9 1 Overheat Screw
10 1 Upper Seat
11 1 Pushrod
12 1 Thermostat
13 1 O-Ring
14 1 O-Ring
15 1 Control Cap
16 1 Set Screw
17 1 Label
18 1 Screw
27 4 1/4 Screw
NOTE: Kit numbers for rough brass finish
and standard range thermostat. Contact
Bradley for other configurations.
1
Valve Body
2
O-Ring
3
O-Ring
4
Liner
5
Spring
7
Piston
8
Spring
9
Overheat
Screw
10
Upper
Seat
11
Pushrod
12
Thermostat
13
O-Ring
14
O-Ring
15
Control
Cap
17
Label
18
Screw
20
Thermometer
21
Brass Tee (1/2")
22
Nipple 2" (1/2")
23
Supply Stop
23
Supply Stop
24
Pipe Plug
25
Street Ell (1/2")
25
Street Ell (1/2")
27
1/4" Screw
(4X)
16
Set Screw
