Bradley S19-2100 User Manual

EFX 25/S19-2100 Installation
8
11/26/2012
2
3
4
5
6
7
8
9
13
10
11
12 15
14
16
17
18
19
20
21
26
31
36
22
27
32
23
28
33
24
29
25
30
35
46

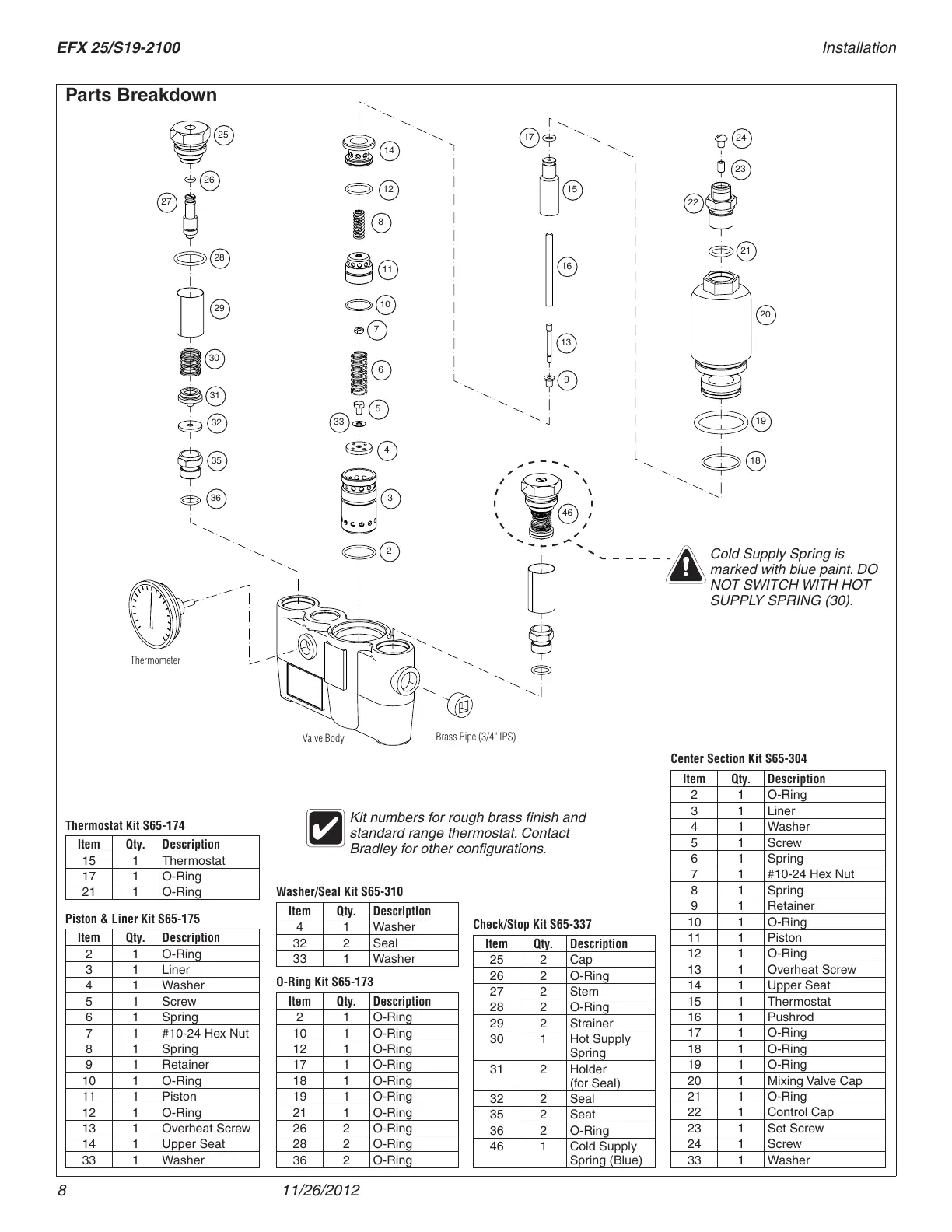

Parts Breakdown
Item Qty. Description
4
1 Washer
32 2 Seal
33 1 Washer
Washer/Seal Kit S65-310
Item Qty. Description
2
1 O-Ring
10 1 O-Ring
12 1 O-Ring
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
21 1 O-Ring
26 2 O-Ring
28 2 O-Ring
36 2 O-Ring
O-Ring Kit S65-173
Item Qty. Description
25
2 Cap
26 2 O-Ring
27 2 Stem
28 2 O-Ring
29 2 Strainer
30 1 Hot Supply
Spring
31 2 Holder
(for Seal)
32 2 Seal
35 2 Seat
36 2 O-Ring
46 1 Cold Supply
Spring (Blue)
Check/Stop Kit S65-337
Item Qty. Description
15
1 Thermostat
17 1 O-Ring
21 1 O-Ring
Thermostat Kit S65-174
Item Qty. Description
2
1 O-Ring
3 1 Liner
4 1 Washer
5 1 
6 1 Spring
7 1 #10-24 Hex Nut
8 1 Spring
9 1 Retainer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 
14 1 
33 1 Washer
Piston & Liner Kit S65-175
Item Qty. Description
2
1 O-Ring
3 1 Liner
4 1 Washer
5 1 
6 1 Spring
7 1 #10-24 Hex Nut
8 1 Spring
9 1 Retainer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 
14 1 
15 1 Thermostat
16 1 Pushrod
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
20 1 
21 1 O-Ring
22 1 Control Cap
23 1 
24 1 
33 1 Washer
Center Section Kit S65-304
Kit numbers for rough brass finish and
standard range thermostat. Contact
Bradley for other configurations.
Cold Supply Spring is
mar
ked with blue paint. DO


Brass Pipe (3/4" IPS)
Valve Body
Thermometer
netzerotools.com
netzerotools.com
