Control Panel
46

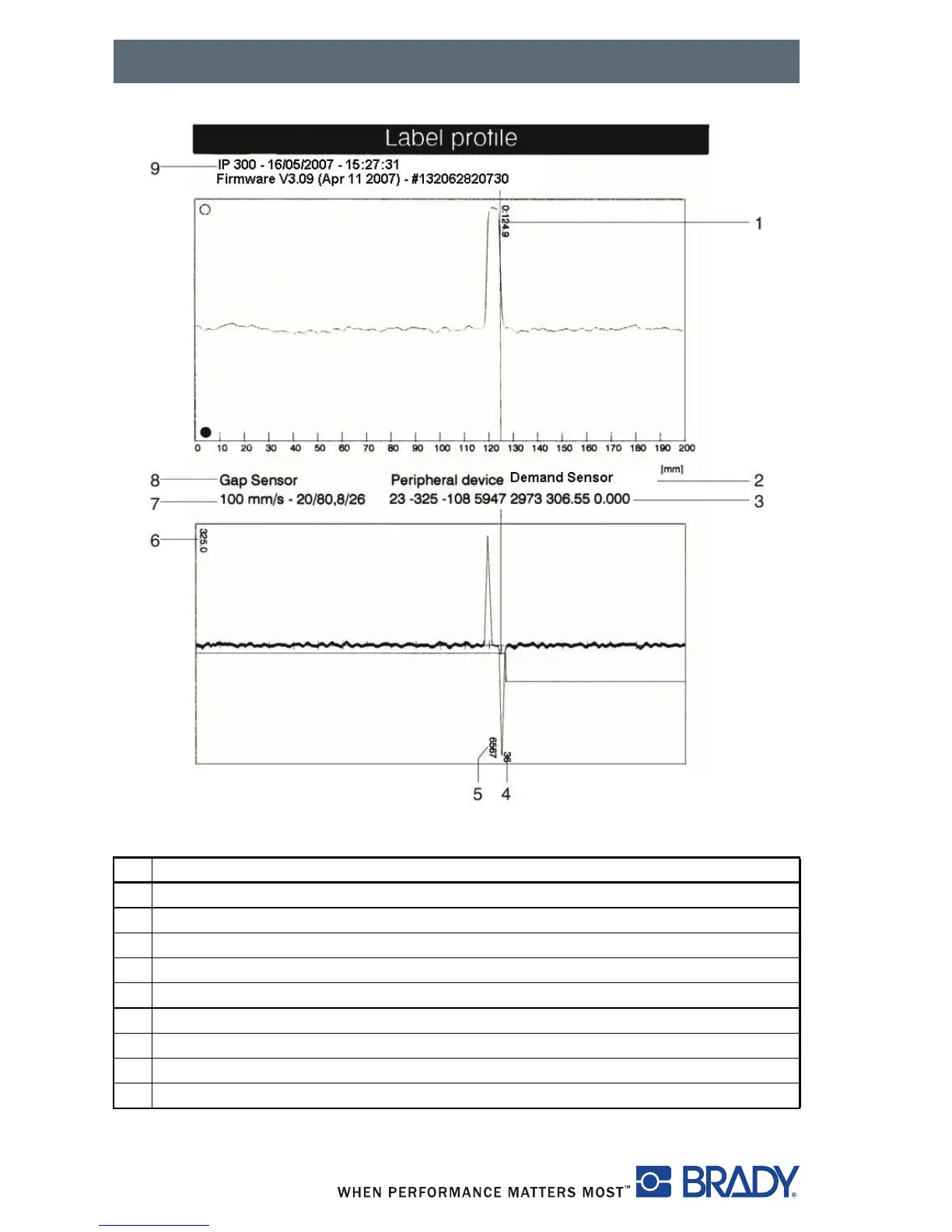

Figure 33, Typical Label Profile Graph
Description of Label Profile Graph
1 Direction of paper flow at which the label start was detected
2 Type of peripheral device connected
3 Information for the firmware developer
4 Width of the negative derivative in motor increments
5 Stroke between start and end of the negative derivative
6 Scale factor for the derivative diagram
7 Service information for adjusting the label sensor
8 Method of label detection (transmitted light/reflex bottom)
9 Device name and current firmware version
