Braeburn 1025NC User Manual

3
Install your new Braeburn thermostat in 5 basic steps:
1 InstalltheSub-Base
2 ProvidePower
3 ConnectYourWires
4 SetInstallerSwitches
5 AttachThermostattoSub-Base
Install the Sub-Base:
•Removethesub-basefromthebodyofthethermostat.

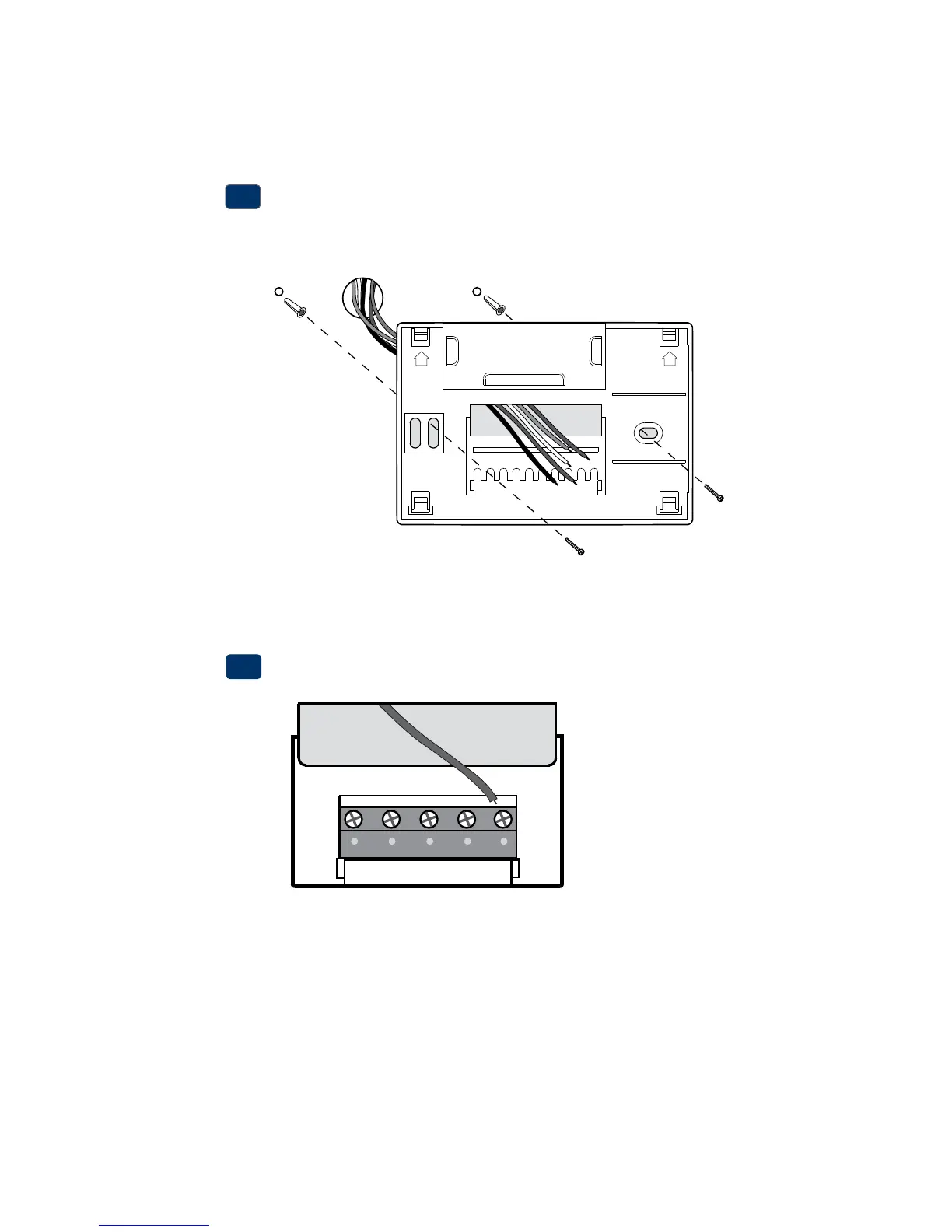

•Mountthesub-baseasshownbelow:
1
Drill 3/16” pilot holes in
your desired location.
Use supplied anchors for
drywall or plaster.
NOTE: After sub-base installation, you may insert the quick reference card
into the slot on the top of the base.
Provide Power
•For 24 Volt AC power,youmustconnectthecommonsideofthetrans-
 formertotheCterminalonthethermostatsub-base.
•For primary or back-up power,insertthe2supplied“AA”typealkaline
 batteriesintothebatterycompartmentlocatedintherearhousingofthe
 thermostat.MakesuretopositionthePositive(+)andNegative(-)sides
 ofthebatteriescorrectlywiththe+/-symbolsinthebatterycompartment.
24VAC Power
Terminal (C)
2
UP UP
C

Braeburn 1025NC Specifications

General

Brand	Braeburn
Model	1025NC
Category	Thermostat
Language	English
