Braeburn 3000 Owner's Manual

cont.
6
5.2
Setting Temperature Differential cont.
NOTE: Once you have finished setting the temperature differential you can
wait 10 seconds and the thermostat will automatically return to the normal
operating mode. Otherwise, you can press both the and buttons at the
same time again to return you to normal operating mode.
NOTE: To erase all user program settings, gently press RESET button using
a paperclip or a small pencil tip. This will return all thermostat settings to their
default values.
7
ADDITIONAL
OPERATION FEATURES
CONTINUES ON PAGE
6

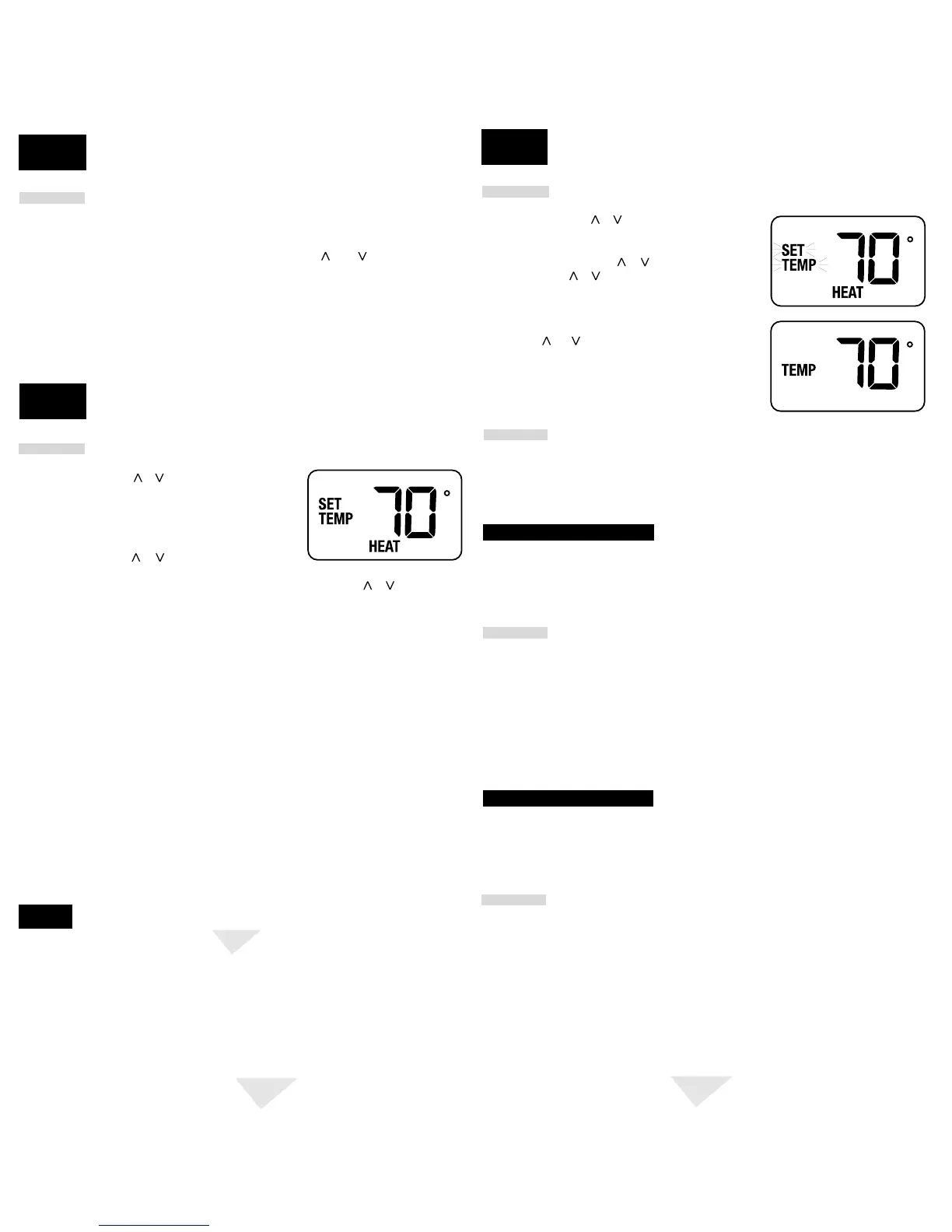

6.1
Review Set Temperature
1. Press and hold or buttons. The current
setpoint temperature will be displayed in the
place of the current room temperature, and the
indicator SET TEMP will be displayed.
2. The display will return to normal operating
mode when the or buttons are released.
The TEMP indicator will be showing in the display indicating that the current temperature
shown in the display is the room temperature. Continuing to hold the or buttons for
3 seconds or longer will allow the user to change the current setpoint temperature
(See Changing Set Temperature).
ADDITIONAL
OPERATION FEATURES
6
PROGRAMMING
USER SETTINGS
5
7
NOTE: The installer can reset the thermostat and bypass the compressor protection
feature by pressing the RESET button. This will erase all user program settings and
should only be used during installation for testing purposes or to reset a thermostat to
regain normal operation. This will return all Thermostat settings to their default values.
6.2
Changing Set Temperature
1. Press and hold or button at the same
time for 3 seconds. The entire display will
flash once and the SET TEMP indicator will be
flashing. Release the or button and
press the or button again as desired to
adjust the set temperature.
2. The display will return to normal operating
mode after 10 seconds or you can press both
the and buttons at the same time to
return you to normal operating mode.
3. The TEMP indicator will be showing in the
display indicating that the current temperature
shown in the display is the room temperature.
6.5
Compressor Protection Feature
6.3
High Temperature Safety Switch
This thermostat includes an automatic compressor protection feature to avoid potential
damage to the cooling system from short cycling. This thermostat automatically provides a 5-
minute delay after turning off the cooling system output to protect the compressor. This
protection is also present in the heat mode of operation on single stage heat pump systems
to protect the compressor.
While the thermostat is in the HEAT mode of operation (selector switch in the HEAT position),
the thermostat will mechanically turn-off if the room temperature raises higher than 99˚F
(37˚ C). There is also a software feature that will automatically turn-off the thermostat in
HEAT mode if the temperature raises higher than 93˚ F (34˚ C).
WARNING!
Read BEFORE proceeding
Press RESET button using a paper clip or a small pencil tip. This will reset the
thermostat and return all settings to their default values. Verify your thermostat is
controlling your system, (see Testing Your New Thermostat). If problems still persist, call
a professional service technician immediately to verify proper system operation.
6.4
Low Temperature "Freeze" Protection
While the thermostat is in the HEAT mode of operation on standard heating (non-heat pump)
applications, the thermostat will mechanically initiate a call for heat if the room temperature
drops to less than 41˚F (5˚ C). The system selector switch must be in the HEAT position for
this feature to be active. This feature will allow the thermostat to initiate a call for heat on
standard heating (non-heat pump) applications, to provide a minimum amount of heat, even
if the batteries are dead or missing. Call a Professional service technician immediately to
verify proper system operation. This feature is only active on standard heating (non-heat
pump) applications and is not available on single stage heat pump applications.
WARNING!
Read BEFORE proceeding
Replace the batteries immediately and verify that the thermostat is properly controlling
the heating system by testing the thermostat operation (see Testing Your New
Thermostat). If problems still persist, call a professional service technician immediately
to verify proper system operation.
ADDITIONAL
OPERATION FEATURES
6
cont.

Braeburn 3000 Specifications

General

Power Source	Battery Powered (2 AA Batteries)
Stages	1 Heat / 1 Cool
Programmability	Non-Programmable
Filter Change Alert	No
Type	Non-Programmable
Compatibility	Single Stage Systems
Hold Feature	Yes
