TECHNICAL DOCUMENTS OPA-100
TECHNICAL DOCUMENTS 15/22 MS0100-06-0_service_manual.doc

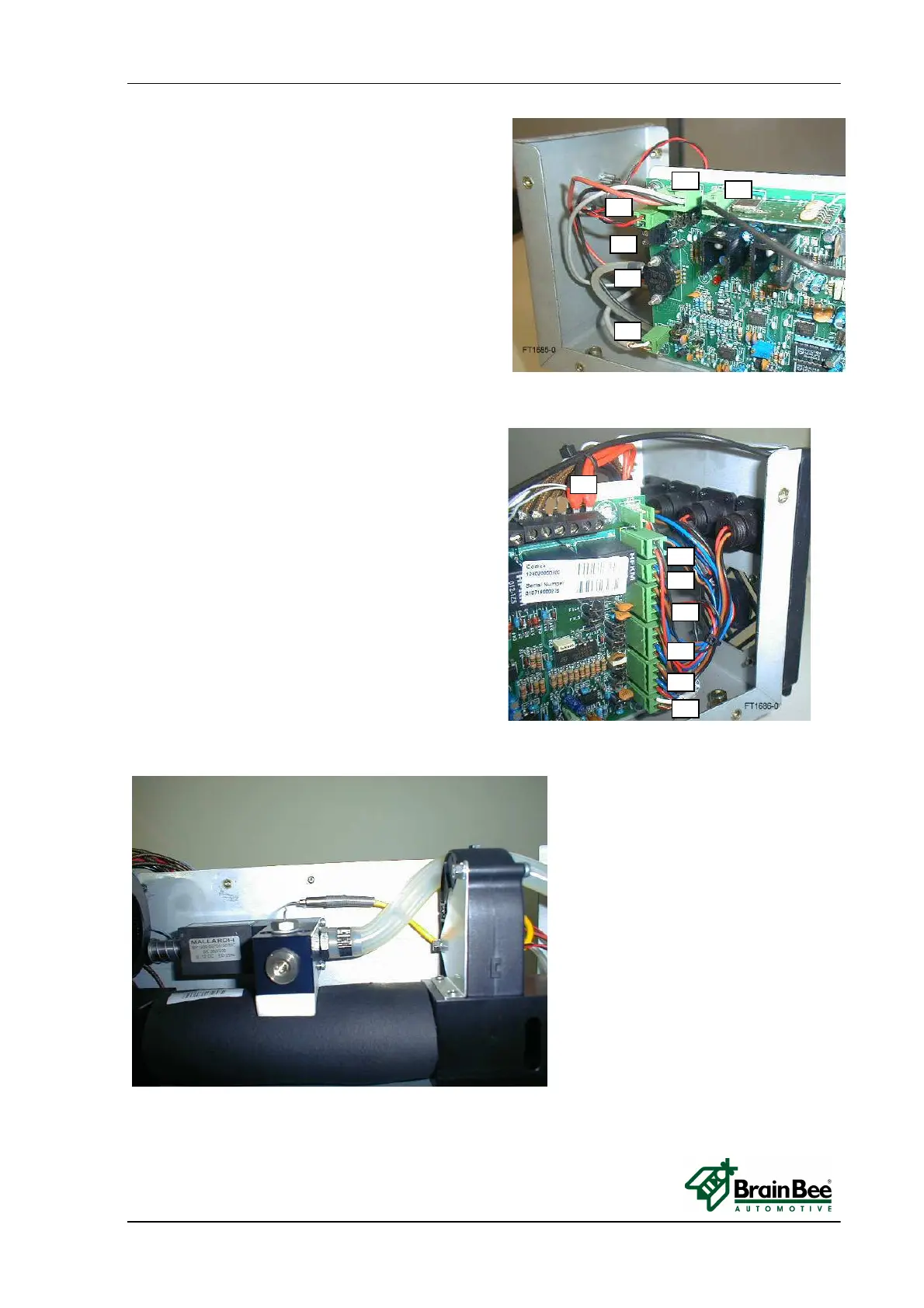

1. 125010000900 antenna cable;
2. 124010000900 LM35 temp. chamber sensor);
3. 125010002400 cable Fan Emission Side;
4. Thermocouple cable;
5. Tube T4S0205 from measurement chamber
6. 124010001000 Cable for Led .
1. 124010001700 cable for Power supply;
2. 125010002400 cable Fan Receiver Side;
3. 124010001700 cable for RS485 network;
4. 124010001600 cable for RS232;
5. 124010000800 RPM Piezo input;
6. 124010001500 Temperature probe;
7. 124010001100 Cable for Photodiode
.
Thermocouple smoke temperature
1
2
3
4
5
6
7
1
2
3
4
5
6
