9. CLUTCH

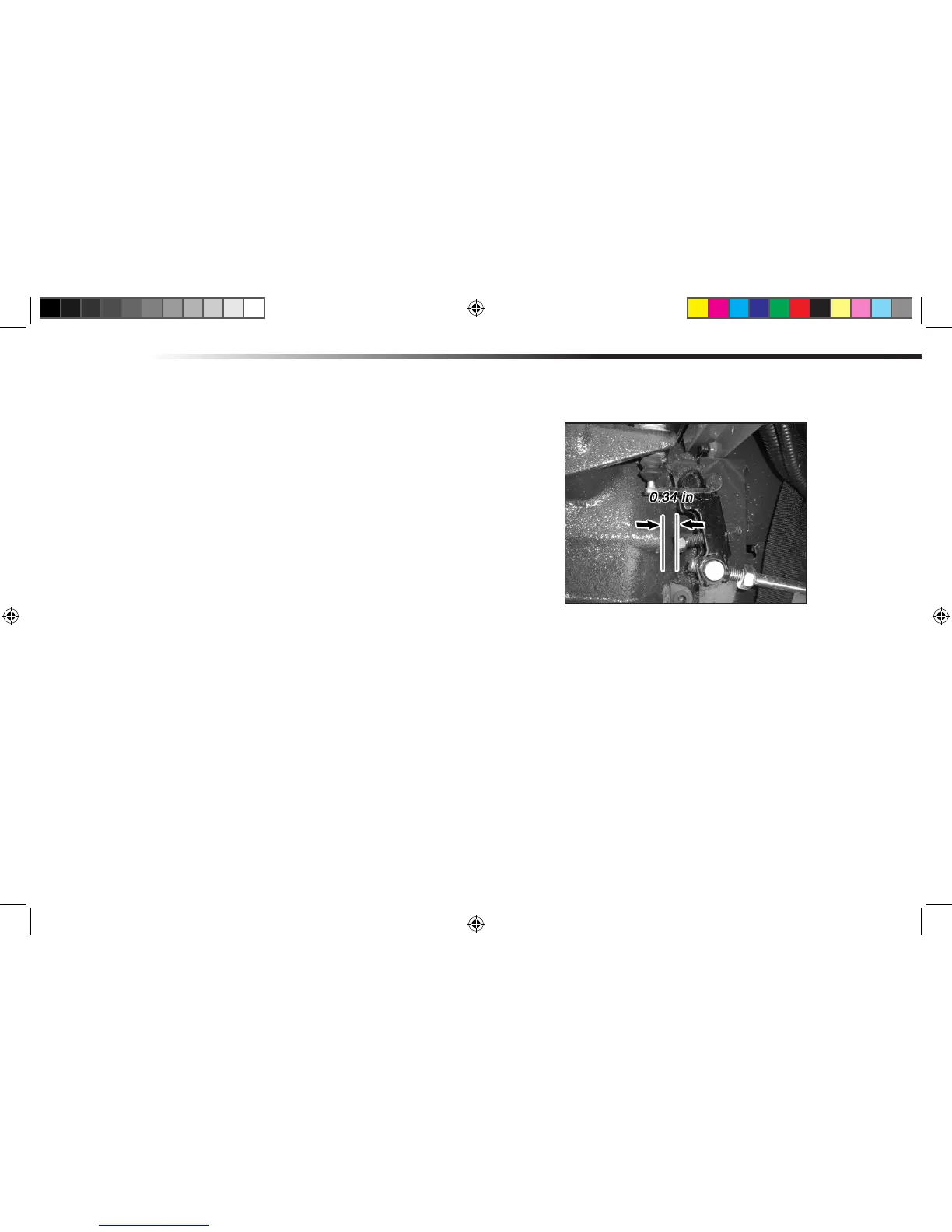

Adjust clutch pedal as follow
1. Stop the engine and remove the key
2.Slightly depress the clutch pedal and measure free
play at top of pedal stroke.
3.If adjustment is needed, loosen the lock nut and turn
the clutch rod to adjust the rod length within acceptable
limits.
4.Retighten the lock nut.
5.After adjusting, release the clutch pedal and check the
clearance with bolts if adjustment is needed. (0.34in)
* Clutch pedal free paly : 0.8~ 1.19 in)
PERIODIC MAINTENANCE & ADJUSTMENT
