AUX. HYDRAULICS

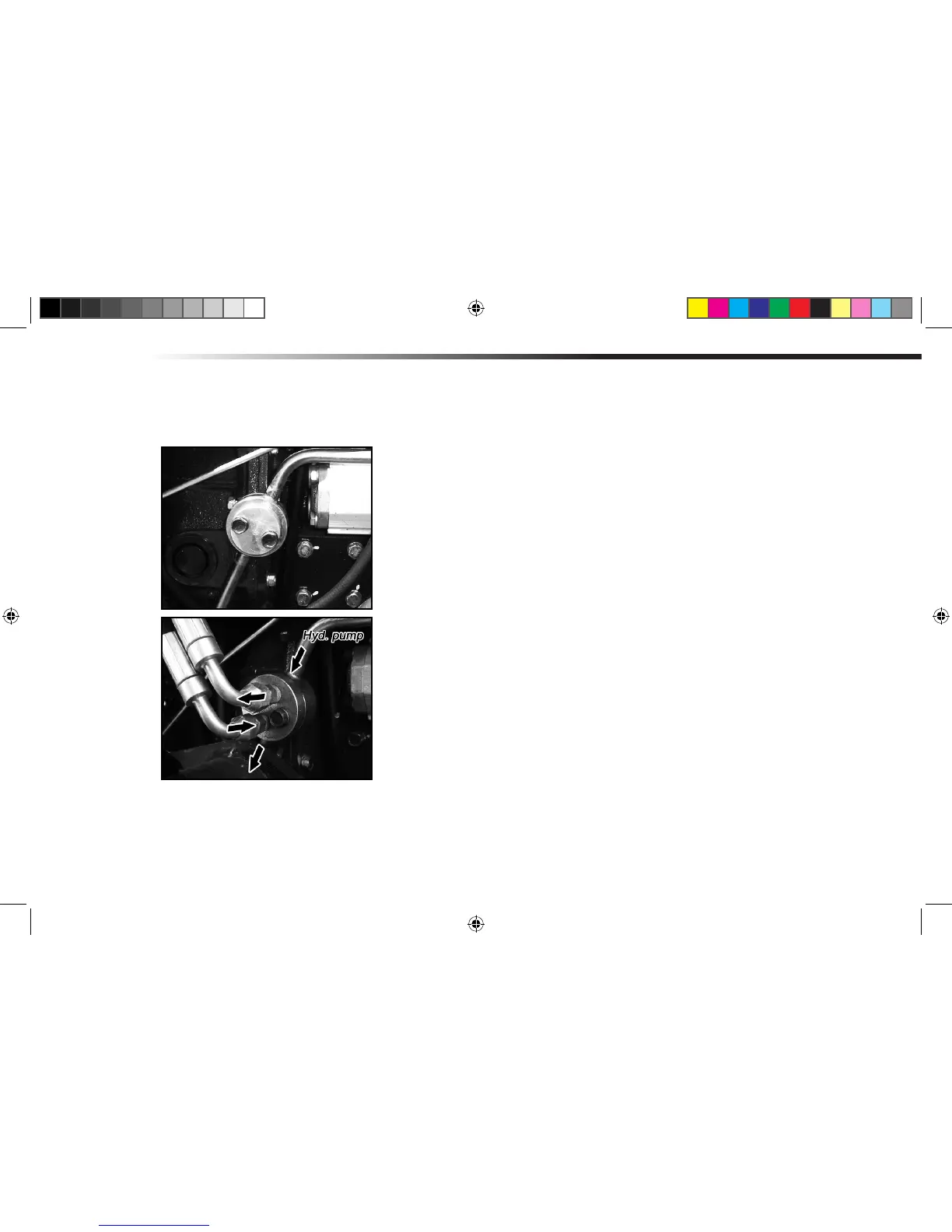

Hydraulic block type outlet is useful when adding hy-
draulic operated equipment such as front loader, etc.
When implement is attached
1.Remove the block cover.
2.Attach the implement inlet and outlet.
[Note]
1.For hydraulic block type outlet, be sure to use the
control valve “Power beyond type” with relief valve that
has a third line return to tank for the operation of hydrau-
lic block.
2.The “tank” port ow from implement should be con-
nected to the located on the right hand side of transmis-
sion case.
3.If the implement control valve has a relief valve, the
tank port ow from implement should be connected to
the port located on the right hand side of transmission
case.
