Page 5

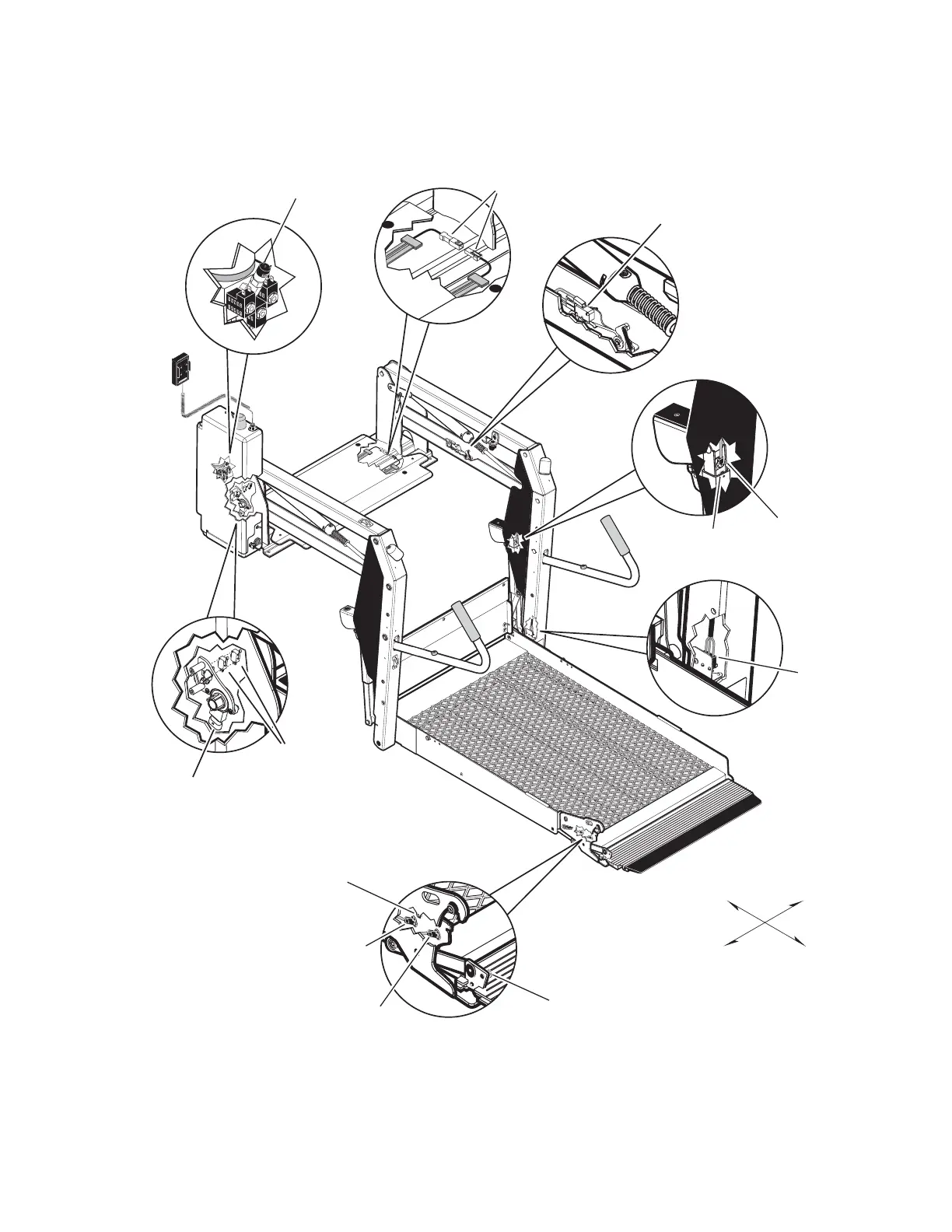

Switch and Sensor Locations
*Bridging
Microswitch
31010FA
Pressure Switch
31199
Threshold Strip Switch
31221A (Qty. 2)
Outer Barrier Raised
Magnetic Sensor
32645NA60
Outer Barrier Latched
Magnetic Sensor
32645NA60
Outer Barrier Raised
Magnet
30662
Outer Barrier Latched
Magnet
30662
*Note: Mirror image for
right (front) pump lifts.
Inboard
Outboard
Right
Left
*IB Raised
Magnetic Sensor
31030A15
*IB Occupancy
Microswitch Assy.
32642A
*IB Raised
Magnet
30662
*Rotary
Position
Sensor
31094A
*Stow
Microswitch
23184 (Qty. 2)
U
N
FOL
D
F
OL
D
DOWN
U
P
