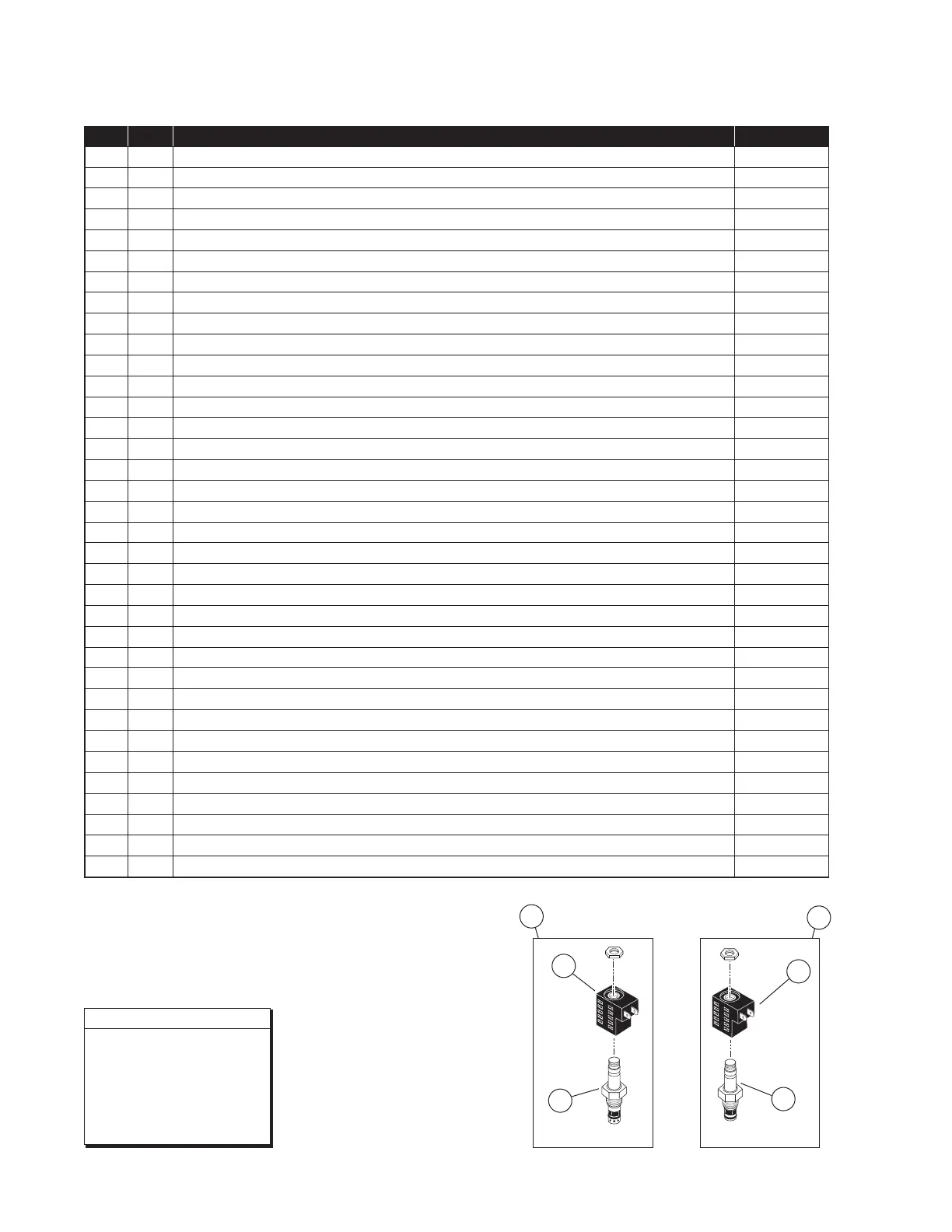

Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M-268-0114) 120G / 12V / Triple Relief 32915-12V
2 1 Clamp, Reservoir - H-48 (M259) 17069
3 1 Solenoid, 4-Post - Trombetta (Flat Mount) 31374
4 1 Motor, Pump - 12 Volt - Low RPM 31350
5 2 Valve Assembly, “Outer Barrier Fold Relief and Fold Relief” (complete) 31120K
6 2 Cartridge (only), “Outer Barrier Fold Relief and Fold Relief” Valve - (shown below) 31121
7 4 Coil (only) - (shown below) 31122
8 2 Valve Assembly, “Outer Barrier Down and Down” (complete) 31348K
9 2 Cartridge (only), “Outer Barrier Down and Down” Valve - (shown below) 26078
10 3 Screw, 1/4-20 x 2-1/4", Allen Head 26080
11 1 Hand Pump (Backup) with O-Rings (Item 12) 34397
12 4 O-Ring (only), Hand Pump Mounting 17351
13 1 Reservoir, Hydraulic Fluid 30160
14 1 Cap, Reservoir Filler - Screw On 30167
15 1
Fitting, 90° - 1/8" NPT x 1/8" Barb - Plastic 87563
16 1 Connector, Plastic “Y”, 1/8” O.D. 18877
17 1 Hose, Thermal Plastic - Black, 1/8" I.D.
23742R*
18 1 Handle with Grip 17206A
19 2 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
20 1 Elbow, 7/16-20 JIC 37 Female Swivel (1) - 7/16-20 JIC 37° Male (2) 26579
21 1 Hose Assembly, 1/8" (Opposite-Pump-Side) 16004A-086
22 1 Hose Assembly, 1/8" (Pump-Side) 16004A-046
23 2 Elbow, 90°, 7/16-20 SAE O-Ring Male - 7/16-20 JIC 37° Male, Orifice 26667
24 2 Cylinder ✓
C1514.3-0408N
25 2 Elbow, 90°, 1/4 NPT Male to 1/4" Barbed 15150
26 1 Cylinder, Rollstop w/Breather Vent (Complete 915-3318NA Includes Items 29 & 30) 25309NA
27 1 Fitting, 90° - Male 9/16-18 SAE O-Ring to Male 7/16-20 JIC 37° 87622
28 1 Nut, 1/2-20 Hex Jam 83022
29 1 Breather Vent, 1/4” NPT 26200-2
30 1 (Rear Pump) Hose Assembly, 139" x 3/16" Dia. w/Two Guards
915-2601-139
31 1 (Front Pump) Hose Assembly, 92.5" x 3/16" Dia. w/Two Guards
(Complete 915F5604A-179)
915-5602-92.5
32 1 (Front Pump) Hose Assembly, 86.5" x 3/16" Dia.
915-5603-86.5
33 1 Diode Assembly, Up Solenoid 73906A
34 1 Kit, Hydraulic Port Service Cap 27049K
✓ Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
* Raw material items ordered and priced per inch (order specified length).
6
Cartridge
#31121
7
Coil
#31122
“Outer Barrier Fold Relief
and Fold Relief” Valve
(complete)
5
9
Cartridge
#26078
7
Coil
#31122
“Outer Barrier Down
and Down” Valve
(complete)
8
Hydraulic Fluid
When adding or changing
hydraulic fluid, use Braun
32840-QT (Exxon
®
Univis
HVI 26) hydraulic fluid (do
not mix with Dextron III or
other hydraulic fluids).
