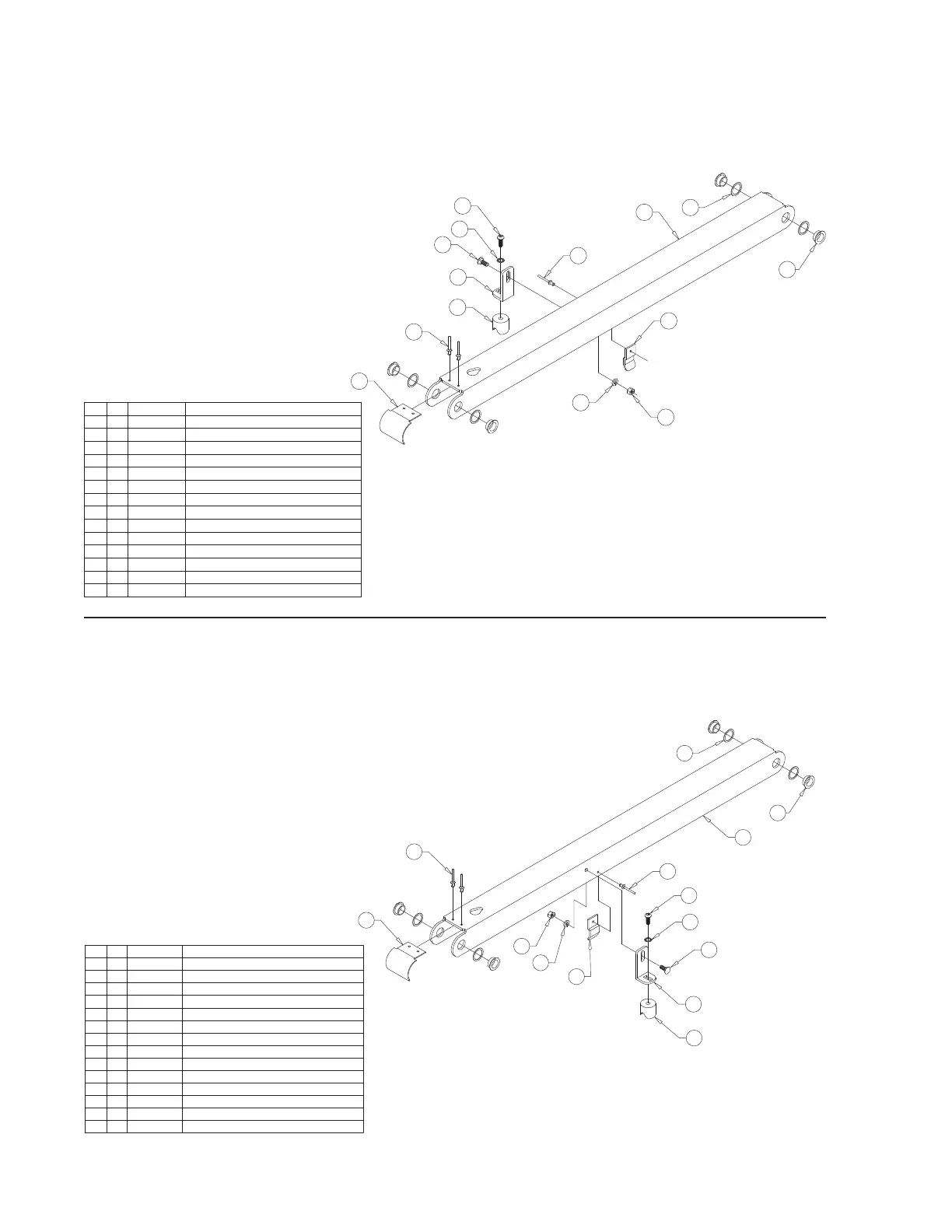

Exploded Views and Parts Lists
Top Parallel Arm Assembly - Front
Top Parallel Arm Assembly - Rear
2
1
4
5
3
6
7
9
8
12
10
11
13
14
DESCRIPTION
2401142
PART NO.
1
QTY.
1
ITEM
945-0419FNKS
BEARING-FLANGE-3/4" X 3/8"-12FDU06
ARM-PARALLEL/TOP-FRONT (Incl. Items 2-7)
3 4 31771 SHIM WASHER-0.906"IDx1.156"ODx.030"T/SS
4
5
1 996-0449 CAP-PARALLEL ARM
2 11513 RIV-POP-SD64BS-3/16"-.13/.25/AUTO-BK
6 1 915-0703 BRACKET-INNER SIDE PANEL GUIDE
7 1 14993 RIV-POP-SD66BS-3/16"-.25/.38/AUTO-BK
28593A19
18 955-2392
ASSY-BLOCK-GUIDE-PLATFORM-STOW
BKT.-QUIET-RIDE MTG.-955
10 1 24440 BOLT-5/16-18 X 3/4-BHSC/AUTO-BK
11
12
1 16368 WASHER-5/16" EXTERNAL TOOTH
1 15858BK BOLT-CARR 5/16-18 X 3/4/AUTO-BK
13 1 10068 WASHER-5/16" LOCK/AUTO-BK
14 1 10058 NUT-5/16-18 HEX/AUTO-BK
2
4
5
3
10
7
1
11
12
8
9
14
13
6
DESCRIPTION
2401142
PART NO.
1
QTY.
1
ITEM
945-0419RNKS
BEARING-FLANGE-3/4" X 3/8"-12FDU06
ARM-PARALLEL/TOP-REAR (Incl. Items 2-7)
3 4 31771 SHIM WASHER-0.906"IDx1.156"ODx.030"T/SS
4
5
1 996-0449 CAP-PARALLEL ARM
2 11513 RIV-POP-SD64BS-3/16"-.13/.25/AUTO-BK
6 1 915-0703 BRACKET-INNER SIDE PANEL GUIDE
7 1 14993 RIV-POP-SD66BS-3/16"-.25/.38/AUTO-BK
28593A19
18 955-2392
ASSY-BLOCK-GUIDE-PLATFORM-STOW
BKT.-QUIET-RIDE MTG.-955
10 1 24440 BOLT-5/16-18 X 3/4-BHSC/AUTO-BK
11
12
1 16368 WASHER-5/16" EXTERNAL TOOTH
1 15858BK BOLT-CARR 5/16-18 X 3/4/AUTO-BK
13 1 10068 WASHER-5/16" LOCK/AUTO-BK
14 1 10058 NUT-5/16-18 HEX/AUTO-BK
