Bray DC24 Series - Page 10

10
DC(M)24-(44/88) Series - Installation, Operation & Maintenance Manual Continued

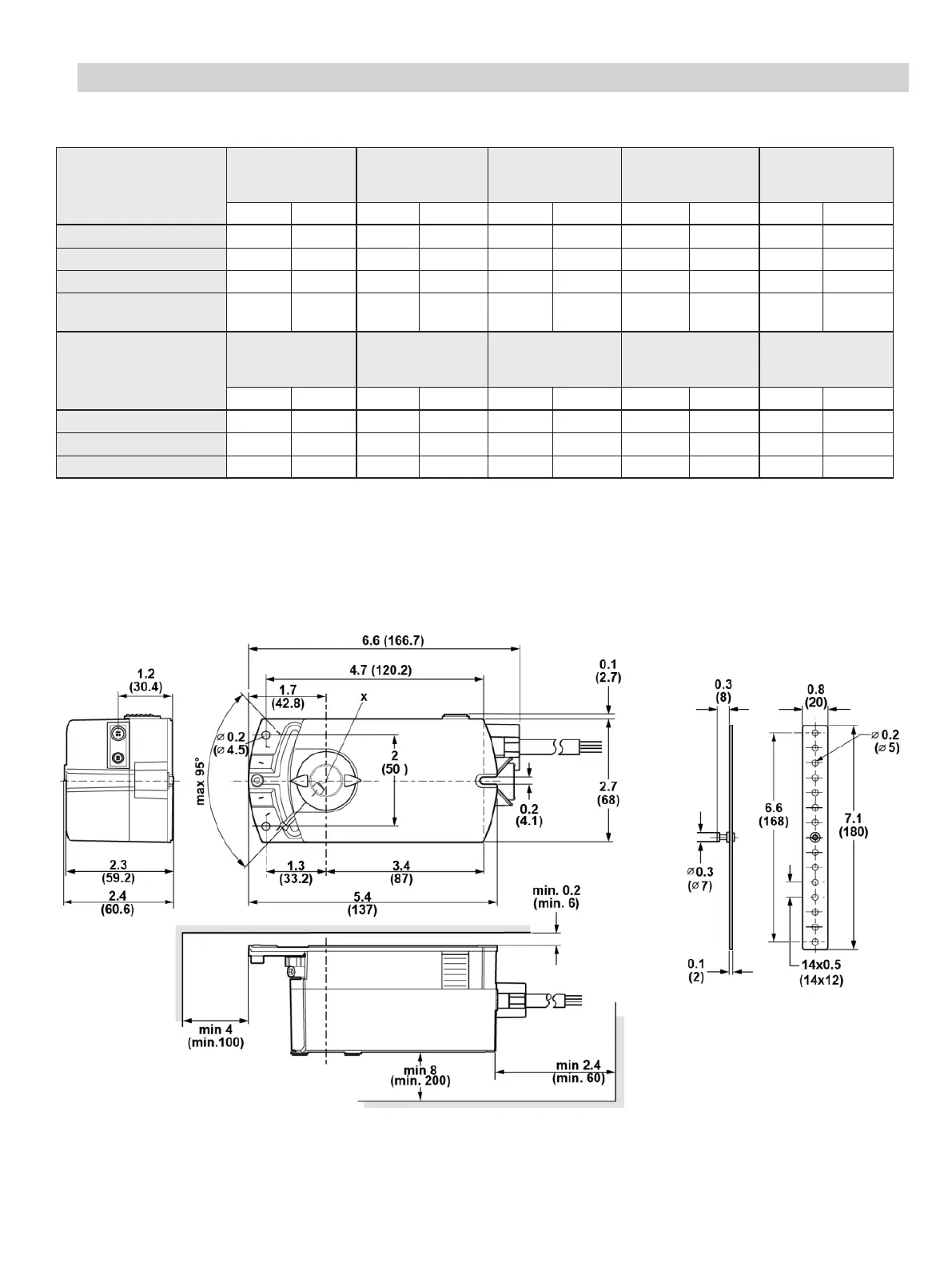

Retrofit Wiring
Dimensions
Modulating Control
(0-10V)
Function
Bray
DCM-44 Series
DCM-88 Series
Siemens
GDE Series
GLB Series
Belimo
LMB Series
NMB Series
Honeywell
MN7505 Series
MN7510 Series
Johnson
M9104 Series
M9109 Series
Color Number Color Number Color Number Color Number Color Number
Supply (24V) Red 1 Red 1 Red 2 Red 1 Red 2
Common Black 2 Black 2 Black 1 Black 2 Black 1
0(2) to 10 VDC Input Gray 8 Gray 8 White 3 Brown 3 Gray 3
0-10 V
Feedback
Pink 9 Pink 9 Orange 5 Blue 5 Orange 4
Floating Control
Function
Bray
DC-44 Series
DC-88 Series
Siemens
GDE Series
GLB Series
Belimo
LMB Series
NMB Series
Honeywell
MN7505 Series
MN7510 Series
Johnson
M9104 Series
M9109 Series
Color Number Color Number Color Number Color Number Color Number
Common Red 1 Red 1 Black 1 Black 2 Black 1
24V CW
Violet
6
Violet
6
Red
2 Red 3
Red
2
24V CCW Orange 2 Orange 7 White 3 White 4 Orange 3
