Bray DC24 Series - Wiring Diagrams; Control Method

8
DC(M)24-(44/88) Series - Installation, Operation & Maintenance Manual Continued
Wiring
All wiring must conform to NEC and local codes and
regulations.
Use earth ground isolating step-down Class 2 transformers.
Do not use autotransformers.
Determine the supply transformer rating by summing
total VA of all actuators used. It is recommended that
one transformer power no more than 10 actuators.

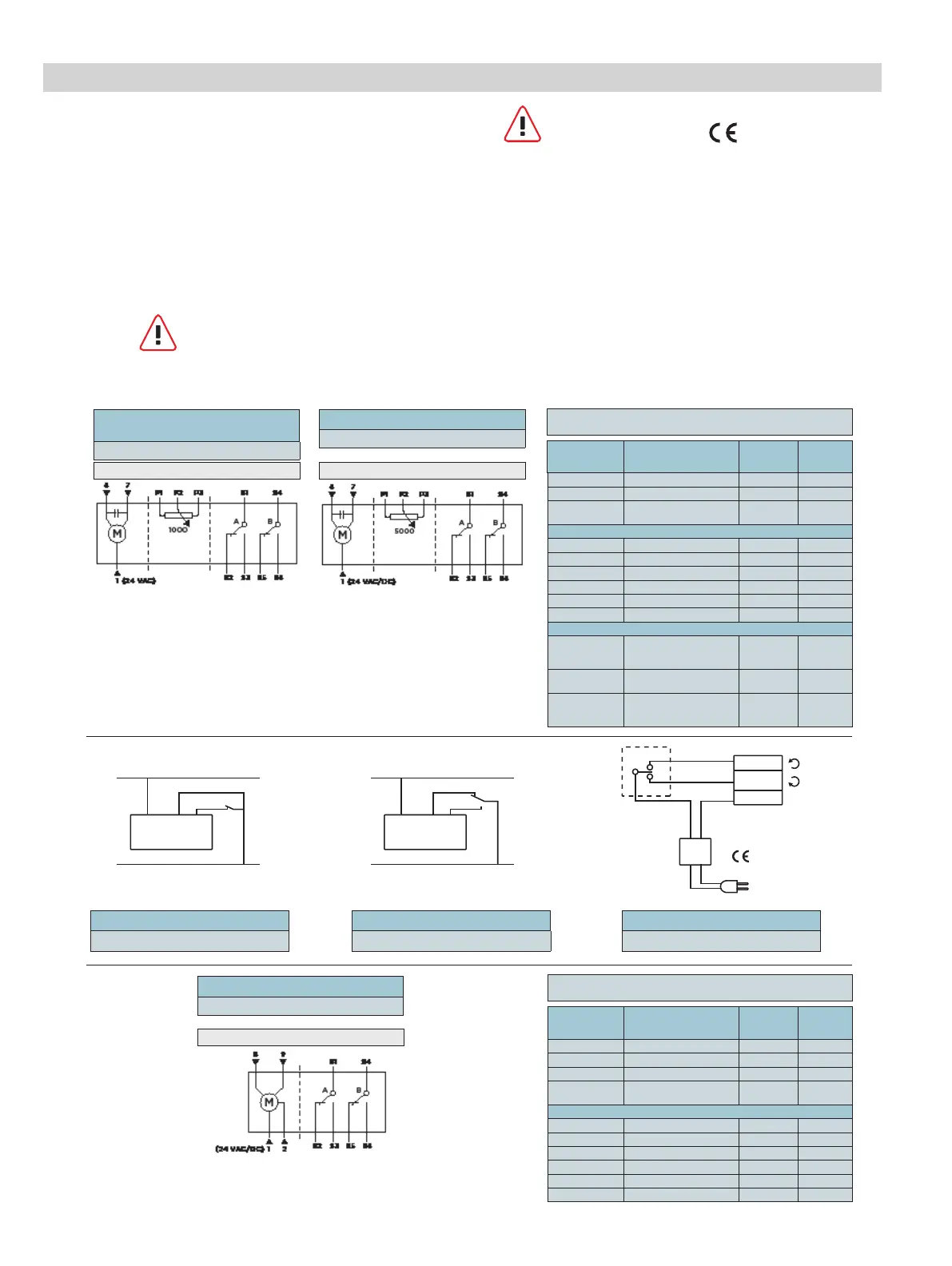

Wiring Diagrams
Wiring DC24-44 Series
• All wiring for CE rated actuators must only be separated
extra low voltage (SELV) or protective extra low voltage
(PELV) per HD384-4-41.
• Use safety-isolating transformers (Class III transformer)
per EN 61558. They must be rated for 100% duty cycle.
• Overcurrent protection for supply lines is maximum 10A.
WARNING
Installations requiring Conformance
CAUTION
Do not wire dierent types of actuators (such as Floating & Modulating) in parallel.
2-POSITION/FLOATING CONTROL
Standard
Symbol
Function
Terminal
Designa-
tion
Color
1 Supply (SP) G Red
6 Control Signal clockwise Y1 Violet
7
Control Signal
Counterclockwise
Y2 Orange
Factory-Installed Options
S1 Switch A Common Q11 Gray/Red
S2 Switch A N.C. Q12 Gray/Blue
S3 Switch A N.O. Q14 Gray/Pink
S4 Switch B Common Q21 Black/Red
S5 Switch B N.C. Q22 Black/Blue
S6 Switch B N.O. Q24 Black/Pink
DC24-44-TPTO Only
P1
Feedback Potentiometer
0 to 100% P1 - P2
(0 to 5,000 ohms)
A Black
P2
Feedback Potentiometer
Common
B Black
P3
Feedback Potentiometer
100 to 0% P3 - P2
(5,000 to 0 ohms)
C Black
MODULATING CONTROL
Standard
Symbol
Function
Terminal
Designa-
tion
Color
1 Supply (SP) G Red
2 Neutral (SN) G0 Black
8 0(2) to 10V input signal Y Gray
9
Output for 0-10V
position indication
U Pink
Factory-Installed Options
S1 Switch A – Common Q11 Gray/Red
S2 Switch A – N.C. Q12 Gray/Blue
S3 Switch A – N.O. Q14 Gray/Pink
S4 Switch B – Common Q21 Black/Red
S5 Switch B – N.C. Q22 Black/Blue
S6 Switch B – N.O. Q24 Black/Pink
DC24-44-TP
DC24-44-TAP
PLENUM CABLE
DC24-44-TPTO
PLENUM CABLE
DCM24-44-(A)P
PLENUM CABLE
Floating Control 2-Position/Floating Control
Modulating
G Y1 Y2
0 VAC/DC
24 VAC/24 VDC
G Y1 Y2
NEUTRAL
24
VAC
EARTH GROUND
ISOLATING CLASS 2
TRANSFORMER FOR
24 VAC POWER
SAFETY ISOLATING
TRANSFORMER
PER EN 60742
120 VAC
7 (ORANGE)
6 (VIOLET)
1 (RED)
0 VAC/DC
24 VAC/24 VDC
CONTROL METHOD
2-Position, SPST
(Single-Pole, Single-Throw)
2-Position, SPDT
(Single-Pole, Double-Throw)
Floating Control
24 VAC/DC
