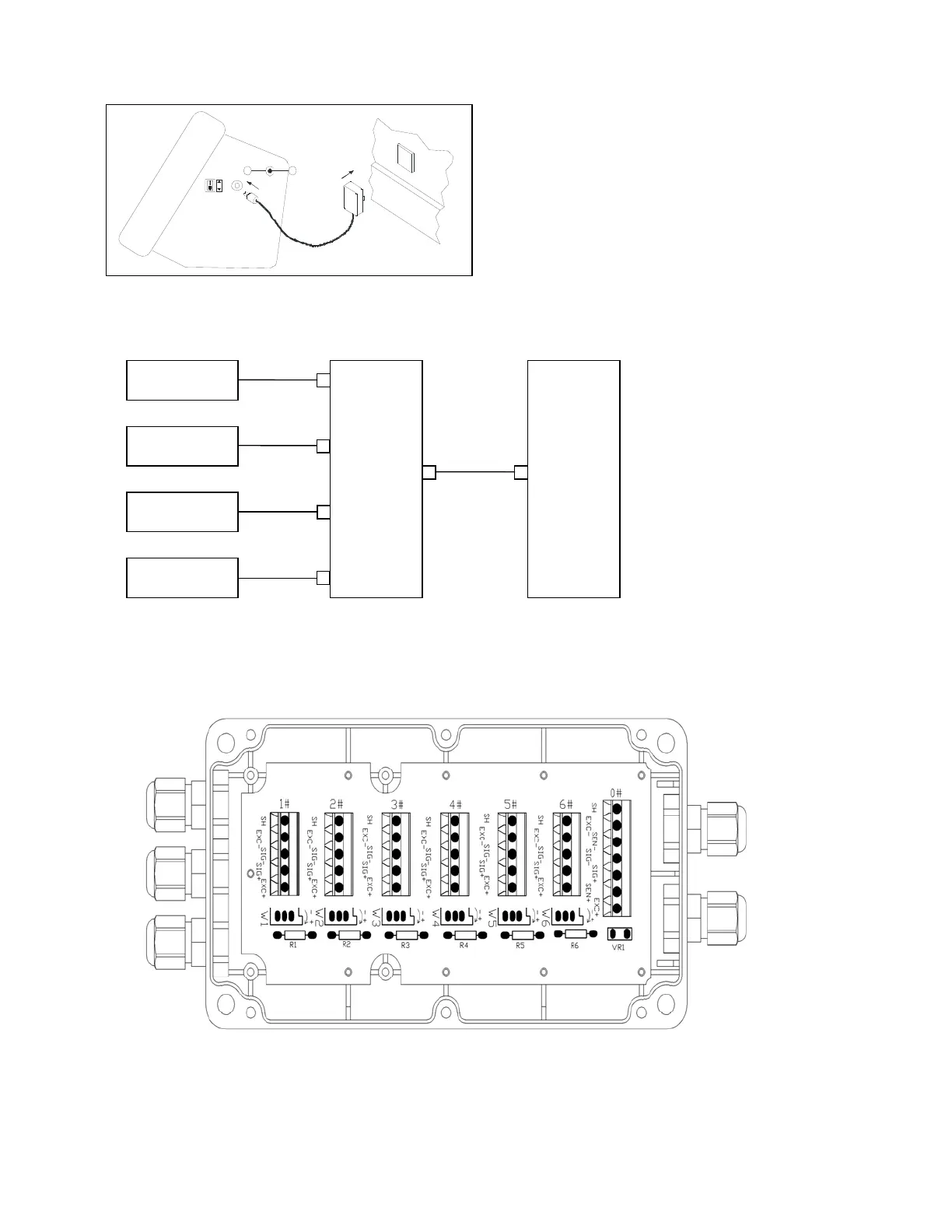

Power Supply
Connecting:
Junction Box:
1. W1-W4: to adjust 4 corner error, W5-W6: not used
2. W0: to adjust scale’s zero-point balance
3. 1#-4# connector: connect to loadcell1---loadcell4, 5#-6#connector: not used
4. 0#connector: connect to indicator
Load cell 1
Load cell 2
Load cell 3
Load cell 4
Junction
box
SBI100
Indicator
-
6V DC - 500mA
+
230V - 50Hz
