5. Connector pins:
SH---shield wire
EXC+ --- Excitation +
EXC- --- Excitation -
SIG+ --- Signal +
SIG- --- Signal -
SEN+ --- Sense +, connect to EXC +
SEN- --- Sense -, connect to EXC -
Platform material:
4mm chequered plate

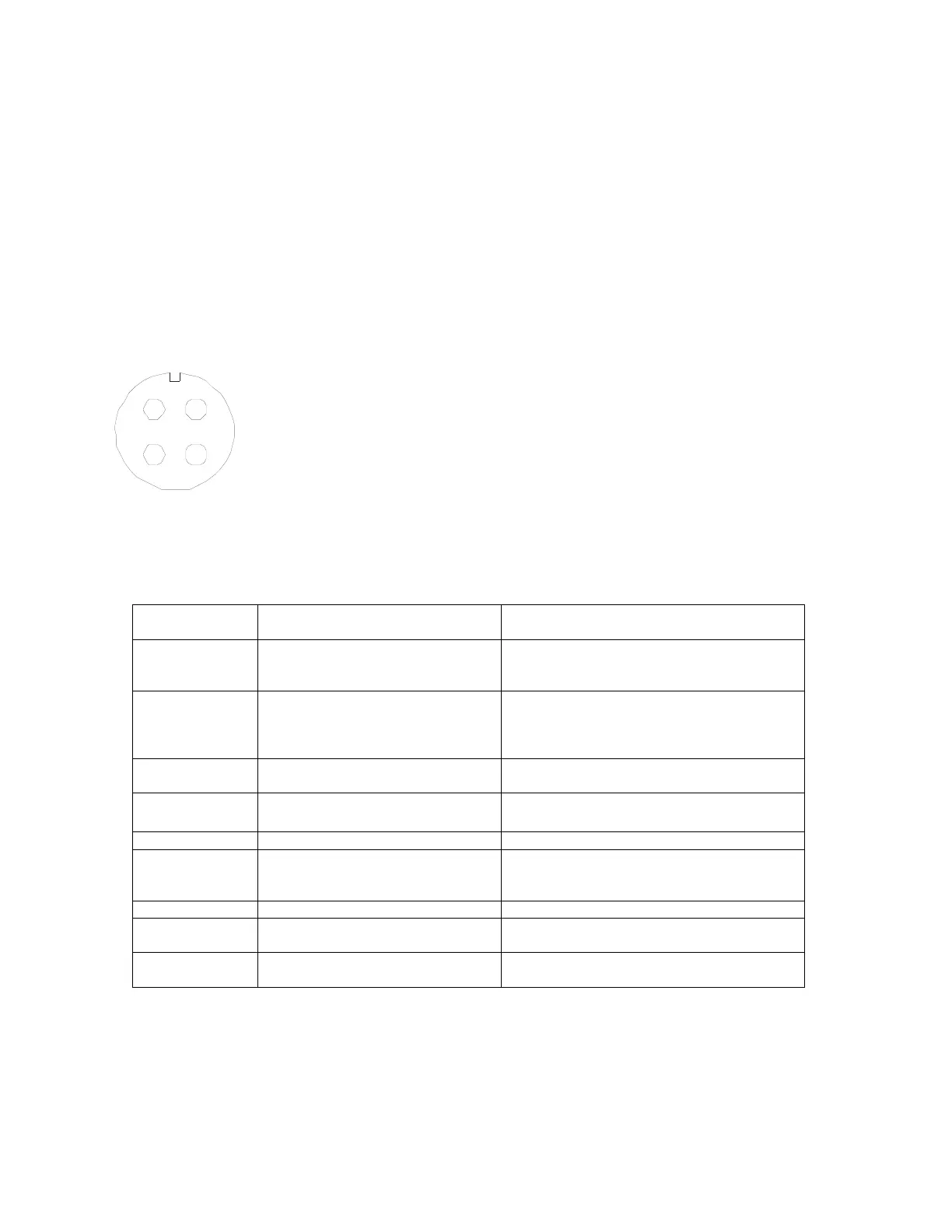

Wire the cable attached to the indicator as shown
4
2
3
1
1RED
2RED
3RED
4RED
1. Red Excitation+
2. Black Excitation-
3. Green Signal-
4. White Signal+
Error Messages
Error Message Definition Required Solution/Troubleshooting
0¯ ¯ ¯ ¯:
Weight above range for calibrated
zero point.
Remove load before zeroing
Or
Recalibrate the scale.
0_____:
Weight below range for calibrated
zero point.
Put platform on scale (if it has been
removed)
Or
Recalibrate the scale.
_____:
Indicates an under range condition Recalibrate the scale.
¯ ¯ ¯ ¯:
Capacity exceeded Remove the load or a scale with a larger
capacity is required.
CAL-Er: Calibration error Restart calibration
Lo.bAt: Low Battery Recharge the battery. Upon initial use, it is
recommended to charge battery for more
than 8 hours prior to use.
EEP.E0 EEPROM can’t be accessed Replace S100 Indicator
EEP.E1 Configuration settings have
changed and not been stored
Reconfigure and calibrate the scale to store
settings
EEP.E2 Configuration settings exceed
scale’s normal range
Reconfigure and calibrate the scale to store
settings
1. Red Excitation +
2. Black Excitation -
3. Green Excitation -
4. White Signal +
