BRIG Eagle 6.7 - Boat Design Overview

Eagle 6.7-2019 236G.01
— 13 —

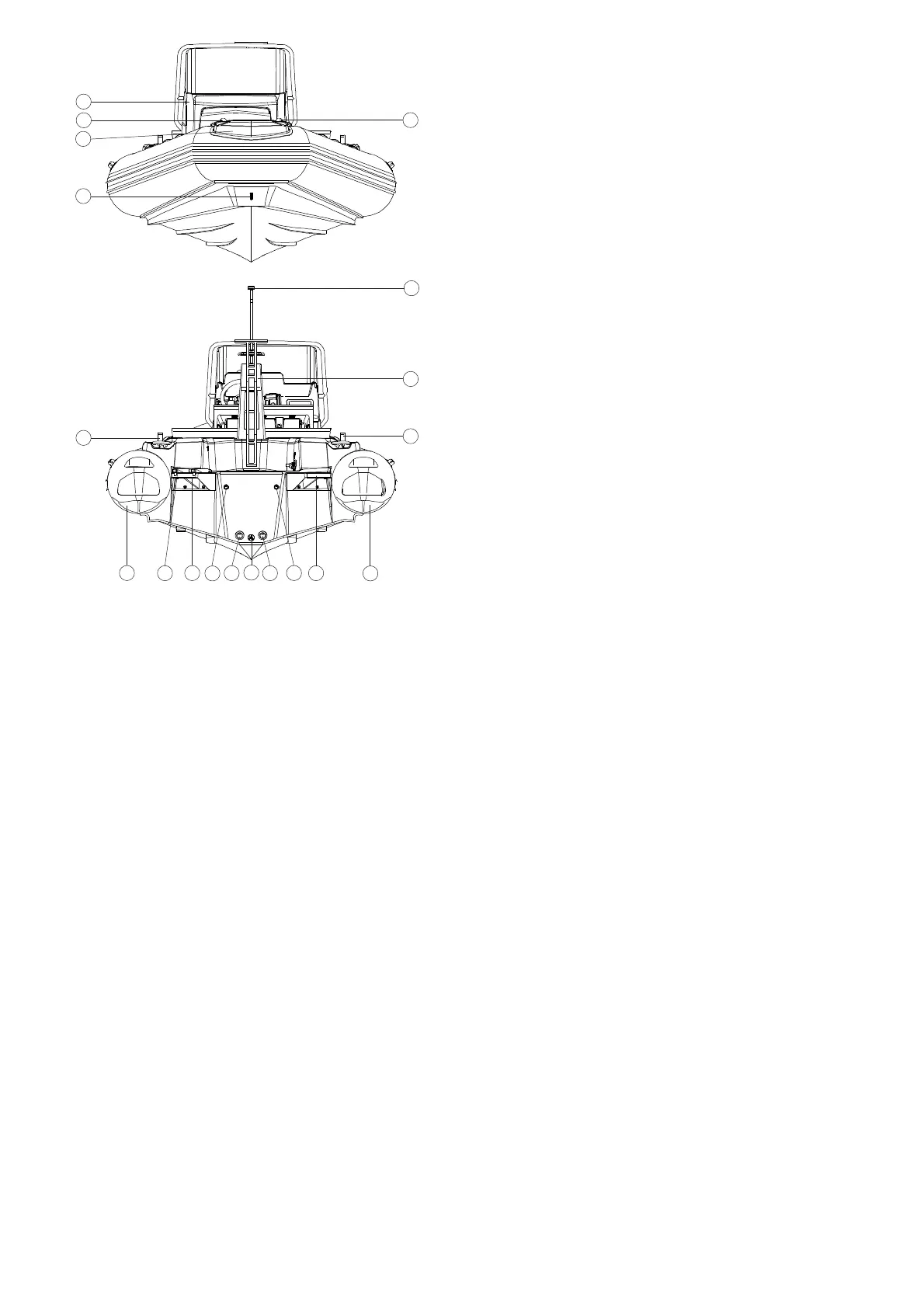

D1
1 — Rigid hull.
2 — Reinforced buoyancy tube.
3 — Doubled rubbing strake.
4 — Safety handle.
5 — Towing bow eye (hull).
6 — Bow step-plate with navigation lights.
7 — Fiberglass tube end (2 pcs.)
8 — Fuel fill.
9 — Box with cap for shower handset.
10 — Air fill valve (5 pcs.).
11 — Stern handhold.
12 — Stern platforms.
13 — Front locker removable cushion (2pcs.).
14 — Drain outlet from the motor recess (2 pcs.).
15 — Cockpit drain system socket (2 pcs.).
16 — Steering console.
17 — Combined pilot seat/bolster.
18 — Stern-part seat with soft back.
19 — Water fill.
20 — Stern mast.
21 — Port running light (red).
22 — Starboard running light (green).
23 — Anchor light (white).
24 — Foldable stainless steel ladder.
25 — Drain plug.
The boat series "EAGLE" E6.7, E6.7H consists of the next main components:
- polyester hull (1);
- reinforced buoyancy tube (2);
- polyester steering console (16);
- combined pilot seat/bolster (17);
- stern mast (20) with anchor light (23).
BOAT DESIGN.
DESCRIPTION:
