BRIG Eagle 6.7 - Stern Mast with Anchor Light; Steering Console; Steering Console Components

Eagle 6.7-2019 236G.01
— 17 —
STEERING CONSOLE.
Steering console is located in the central part of the boat. The console

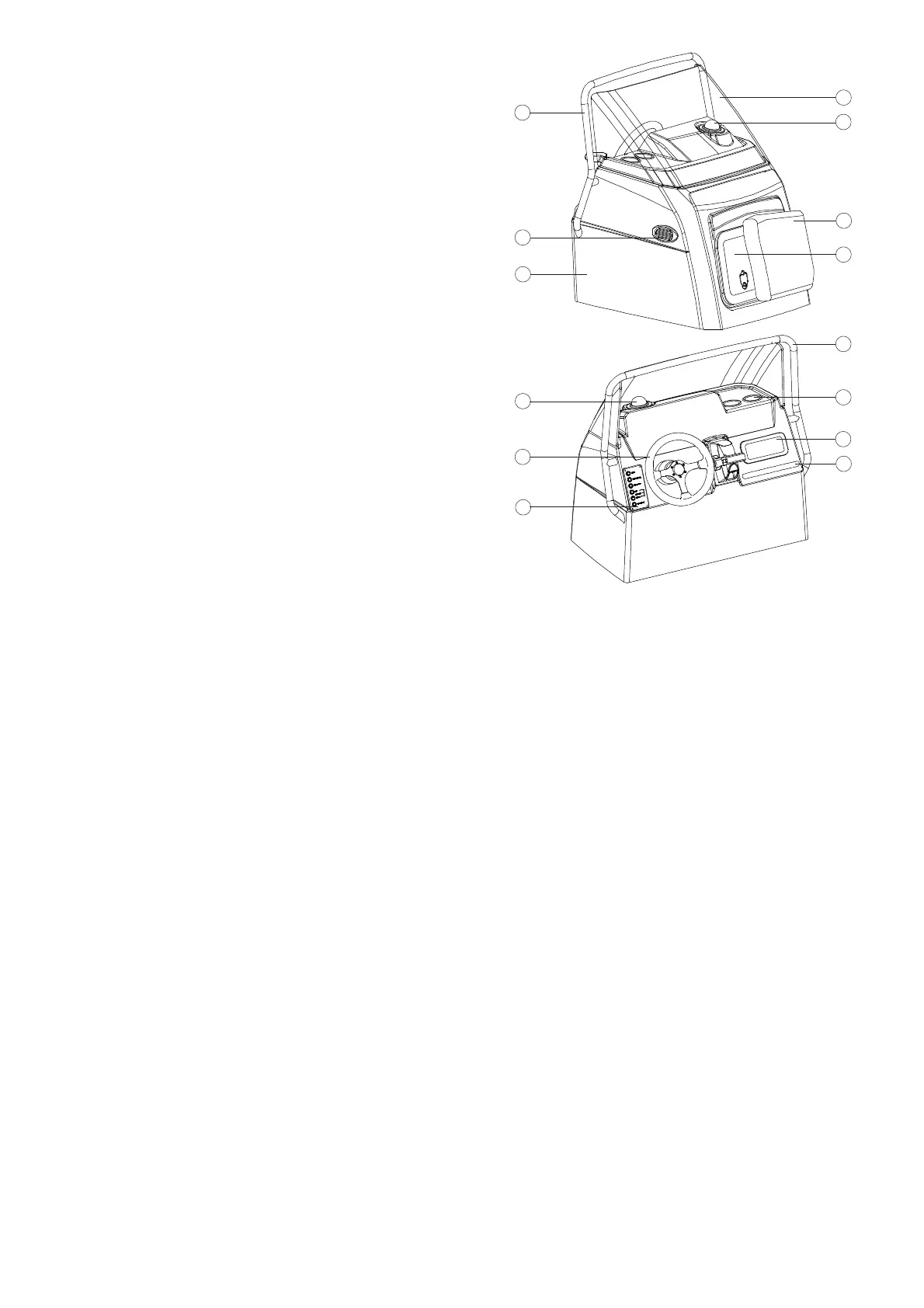

consists of the following components (Fig. D4):
—
console body (1) is installed on the built-in the boat deck console base
— windscreen (2);
— stainless steel railing (3);
— front soft seat ;
— soft seat-back (4);
— hatch (5).
— console recess (6);
— fuel fill (10, Fig. D2a);
— stainless steel handrail (7);
— electric horn (8);
— compass (9);
— steering wheel (10);
— switch panel (11);
— cup holders (12).
D4
1
2
3
7
9
4
5
6
9
3
10
11
Stern mast (20, Fig.D1) is located in the stern part of the boat.
Mast equipment:
— anchor light (white, 23).
STERN MAST WITH ANCHOR LIGHT.
8
12
