BRIG Eagle 6.7 - Console Equipment and Fuse Box; Fuse Box and Warning Lights

— 18 — "BRIG" inflatable boats

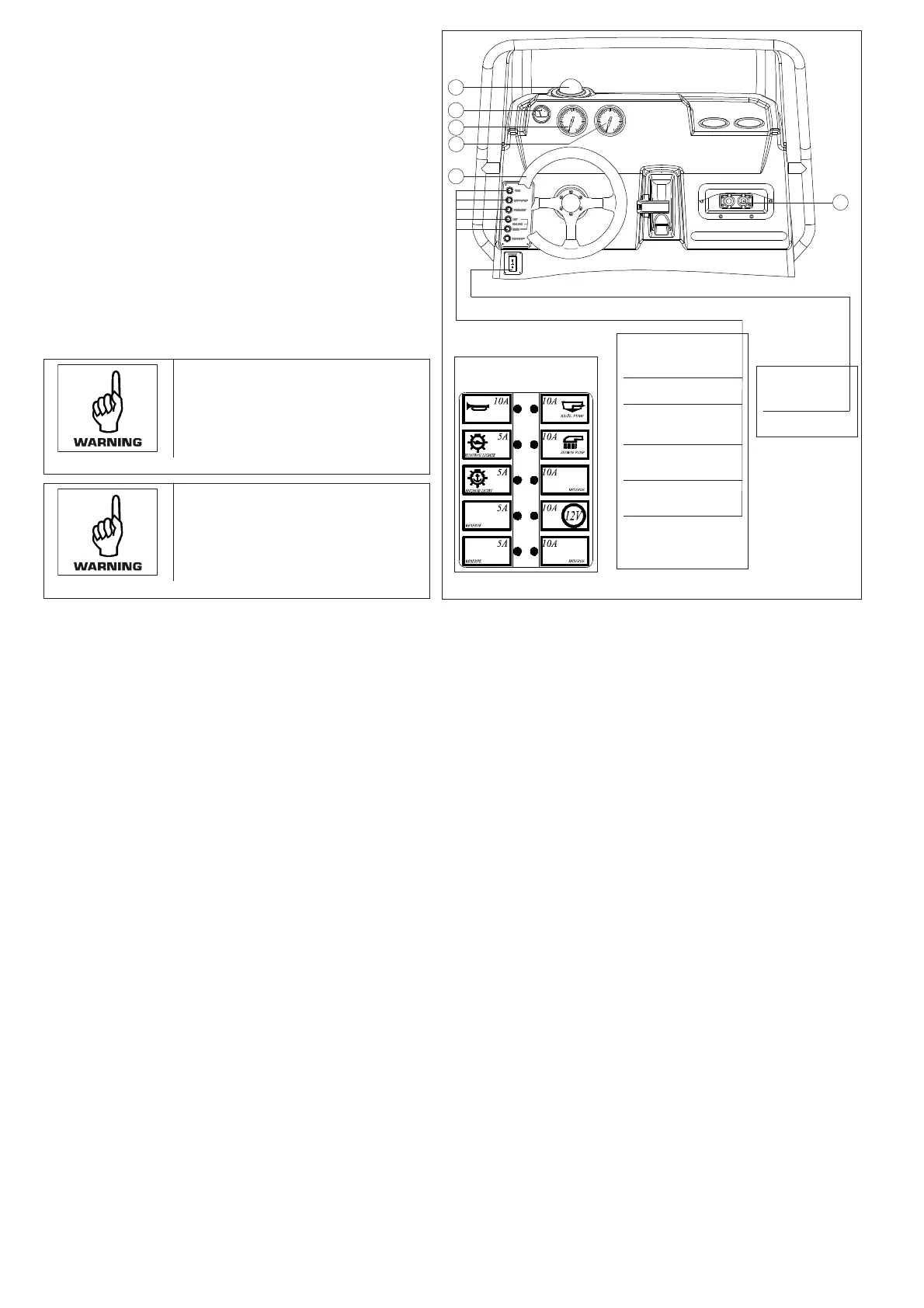

Console equipment (Fig. D5):
— steering system;
— steering cable;
— steering wheel (5);
— compass (1);
— fuel level clock (2);
— speedometer (3);
— tachometer (4);
—
sockets 12V (6);
— fuse holding box with warning lights(Fig. D5)
(inside of the steering console);
— switches:— horn switch (7);
— running lights and meter lamp switch (8);
— anchor light switch (9);
— hull drain pump switch "Manual" (10);
— shower pump switch (11);
— anchor "Up"/"Down" switch (12);
Access to the fuse box - through the hatch (7,Fig.D4)
Always keep a spare set the
fuse in an easily-accessible
location.
Always check the fuse. Burning
red LED display on the fuse box
warns of faulty fuse
5
1
2
3
4
6
Fuse holding box
with warning lights
5
4
10
9
3 8
61
HORN
2
7
8
9
10
11
7
7
8
9
10
11
running lights and
meter lamp switch
anchor light
switch
horn switch
shower pump
switch
hull drain pump
switch
"Manual"
anchor
"Up"/"Down"
switch
Switch panel
D5
12
12
