BRIG Eagle 6.7 - Wiring Diagram

Eagle 6.7-2019 236G.01
— 31 —

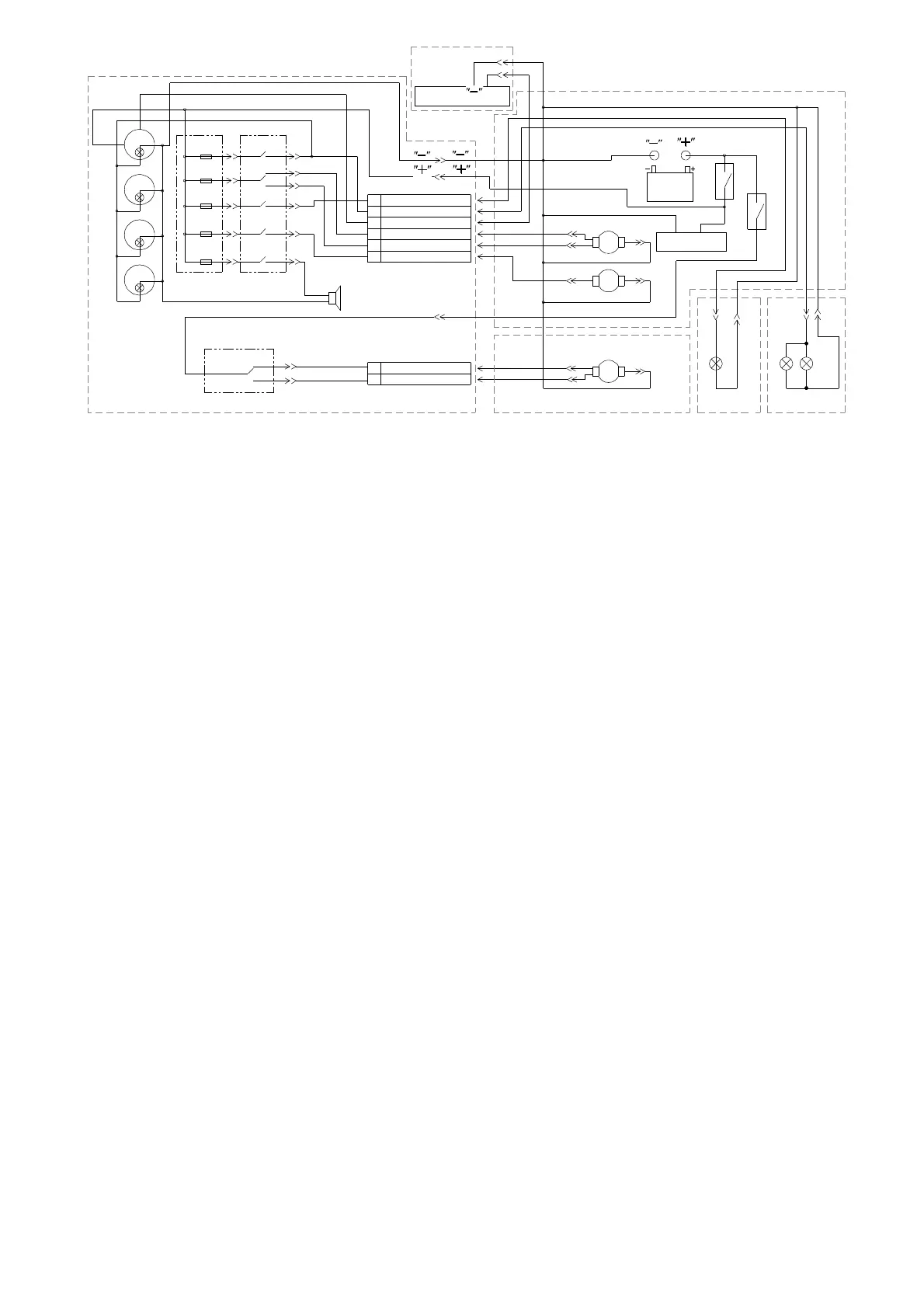

WIRING DIAGRAM.
STEERING CONSOLE
STERN COMPARTMENT
STERN MAST
FUEL TANK
Anchor light
Running lights
Fuel level gauge
Drain pump"Forced"
Drain pump "Auto"
Shower pump
12
5
1
8
6
10
9
11
14
13
15
16
2
4
D12
BOW STEP PLATE
18
17
21
19
20
5A
5A
10A
10A
10A
1 — Battery (provided on the market).
2 — Battery disconnector.
3 — Anchor windlass relay breaker.
4 — Outboard motor (provided on the market).
5 — Automatic bilge pump.
6 — Shower pump.
7 — Anchor windlass.
8 — Anchor light (white).
9 — Port light (red).
10 — Starboard light (green).
11 — Electric horn.
12 — Fuel level gauge.
13 — Fuel level clock
14 — Tachometer.
15 — Compass
16 — Speedometer.
DESCRIPTION:
17 — Switch — meter lamp and running lights switch.
18 — Switch — automatic bilge pump "FORCED" / "AUTO".
19 — Switch — anchor light (white).
20 — Switch — shower pump.
21 — Switch — electric horn.
22 — Switch — anchor "UP"/"DOWN".
12V
3
7
BOW COMPARTMENT
Anchor "UP"
Anchor "DOWN"
1
2
3
4
5
6
7
8
22
