Vertical Models 97700, 99700

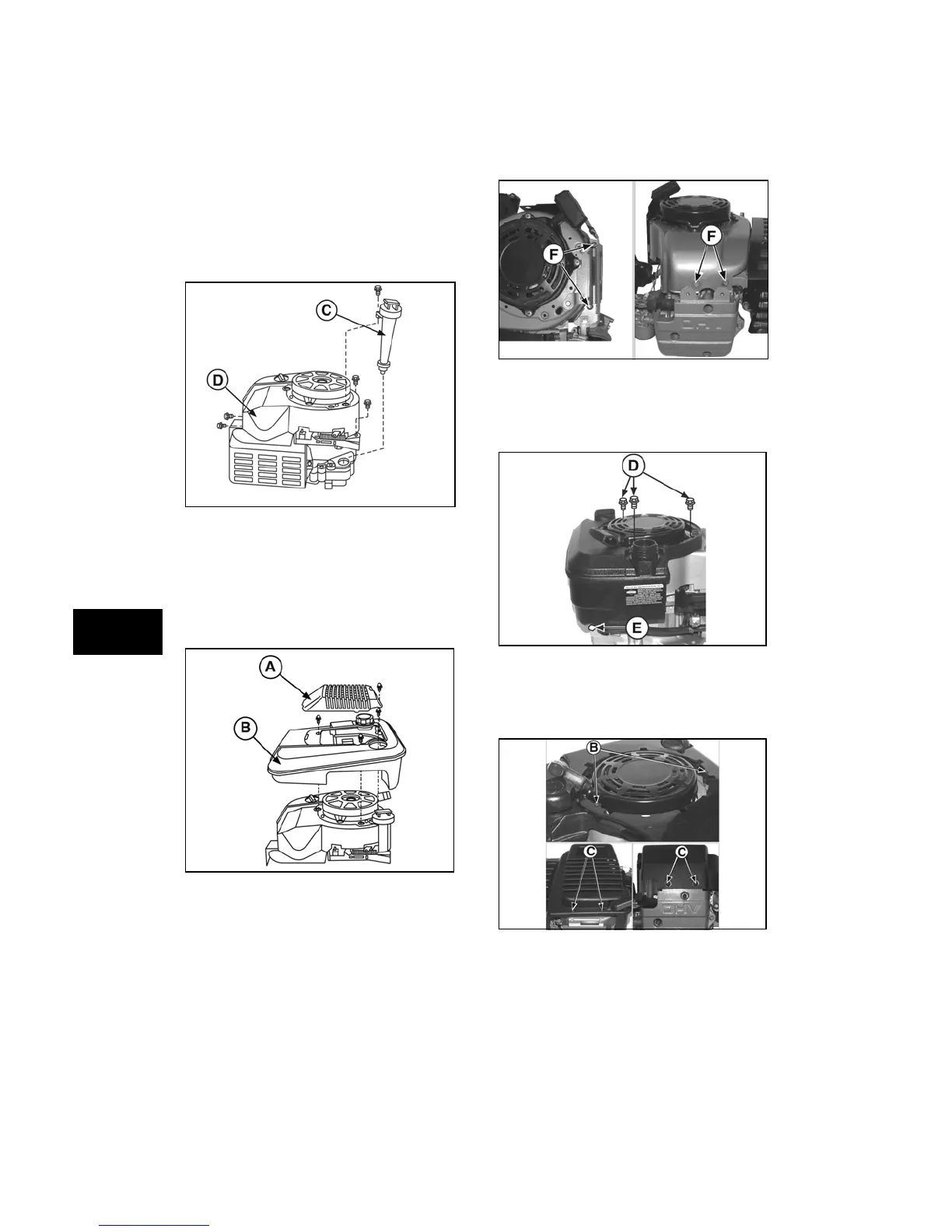

1. Install the screws to the blower housing
(D, Figure 11), torquing screws to values
listed in Section 12 - Engine
Specifications.
2. Install the oil fill tube and dipstick (C).
Figure 11
3. Install the screws to the finger guard
(A, Figure 12) and the fuel tank (B),
torquing screws to values listed in Section
12 - Engine Specifications.
4. Fill fuel tank or open fuel shut-off valve.
Connect fuel hose to carburetor. Connect
spark plug wire.
Figure 12
Vertical Models 110000, 120000
1. Install the oil fill tube and dipstick. Install
the screws (F, Figure 13) and blower
housing.
Figure 13
2. Install screws (D, Figure 14) and spacer
(E), then install tank from engine. Torque
screws to values listed in Section 12 -
Engine Specifications.
Figure 14
3. Install screws (B, Figure 15) to trim plate
or (C) to rewind guard. Torque screws to
values listed in Section 12 - Engine
Specifications.
Figure 15
4. Install air cleaner cover. Press on tab
(A, Figure 16) until finger guard attaches
to engine.
