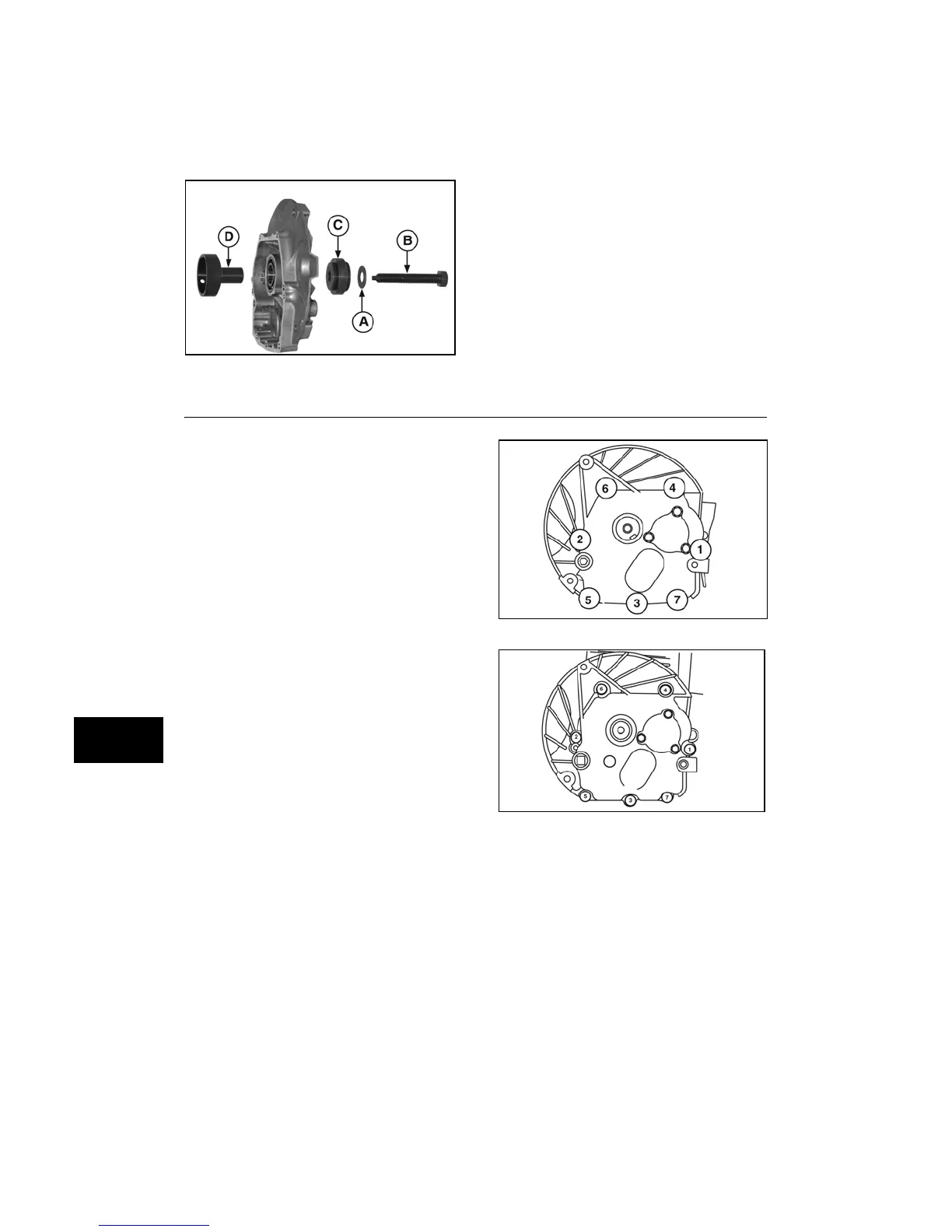

Figure 19
NOTE: Always install new oil seals when engine
is reassembled or when replacing bearings.
Always use the correct seal protector to prevent
damaging the oil seal during installation.
COVERS AND SUMPS
Installation
1. Select correct seal protector for Kit
#19356, to protect oil seal when installing
cover or sump.
2. Make sure mechanical governor gear and
oil pump (when used) is engaged with
cam gear. Do not force cover or sump.
3. Install screws and tighten in sequence
shown:
• Figure 20 - Vertical Shaft Models 97700
and 99700
• Figure 21 - Vertical Shaft Models 110000
and 120000.
• Figure 22 - Vertical Shaft Models 210000,
280000, 310000, and 330000.
• Figure 23 - Horizontal Shaft Models
120000 and 150000.
• Figure 24 - Horizontal Shaft Models
200000 and 210000.
4. Torque screws to values listed in Section
12 - Engine Specifications.
NOTE: To adjust crankshaft end play, see
Section 10 - Crankshafts and Camshafts.
Figure 20
Figure 21
