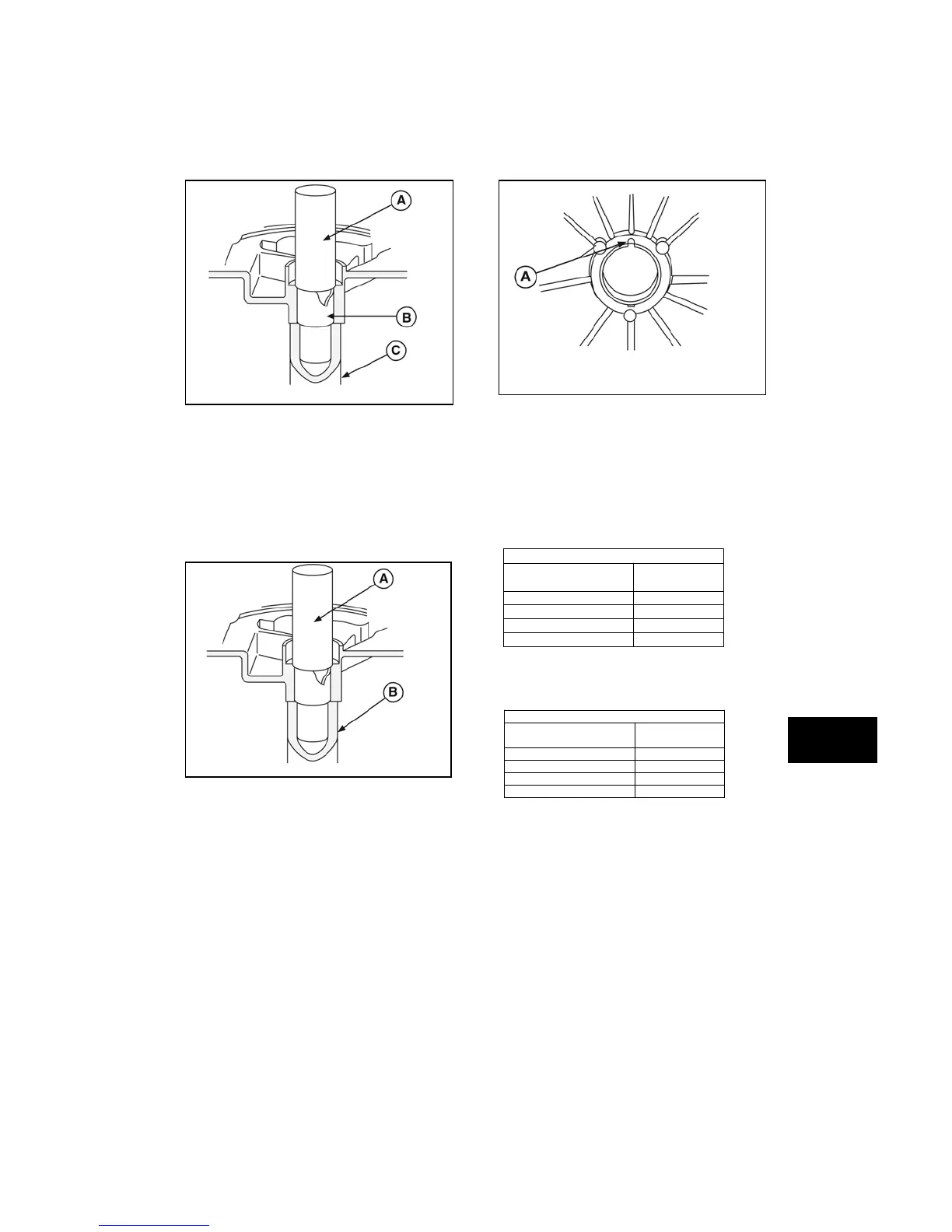

Figure 10
5. Place cylinder or cover/sump on cylinder
support (B, Figure 11) with large opening
facing bearing.
6. Align oil holes in bearing with oil holes in
cylinder or cover/sump, then press in new
bearing to correct depth with bushing
driver (A).
Figure 11
7. Stake bearing into notch (A, Figure 12)
with 1/8” round pin punch to prevent
bearing from turning.
Figure 12
Replace Ball Bearing
Horizontal Models 120000, 150000
1. Select tools needed from charts below.
2. Remove retaining ring and governor idler
gear (A, Figure 13). Remove oil seal.
Bearing Removal Tools
Tool/Part
Description
Tool/Part #
Washer 690582
Puller Screw 19318
Removal Driver 19320
Support 19454
Bearing Installation Tools
Tool/Part
Description
Tool/Part #
Washer 690582
Puller Screw 19318
Installation Driver 19396
Support 19454
