Vertical Models 110000, 120000 with Primer
Carburetors
1. Loosen casing clamp screw
(A, Figure 24, Figure 25).
2. Move throttle lever to fast position.
3. Move casing in direction of arrow until
slack is removed.
4. Tighten casing clamp screw.

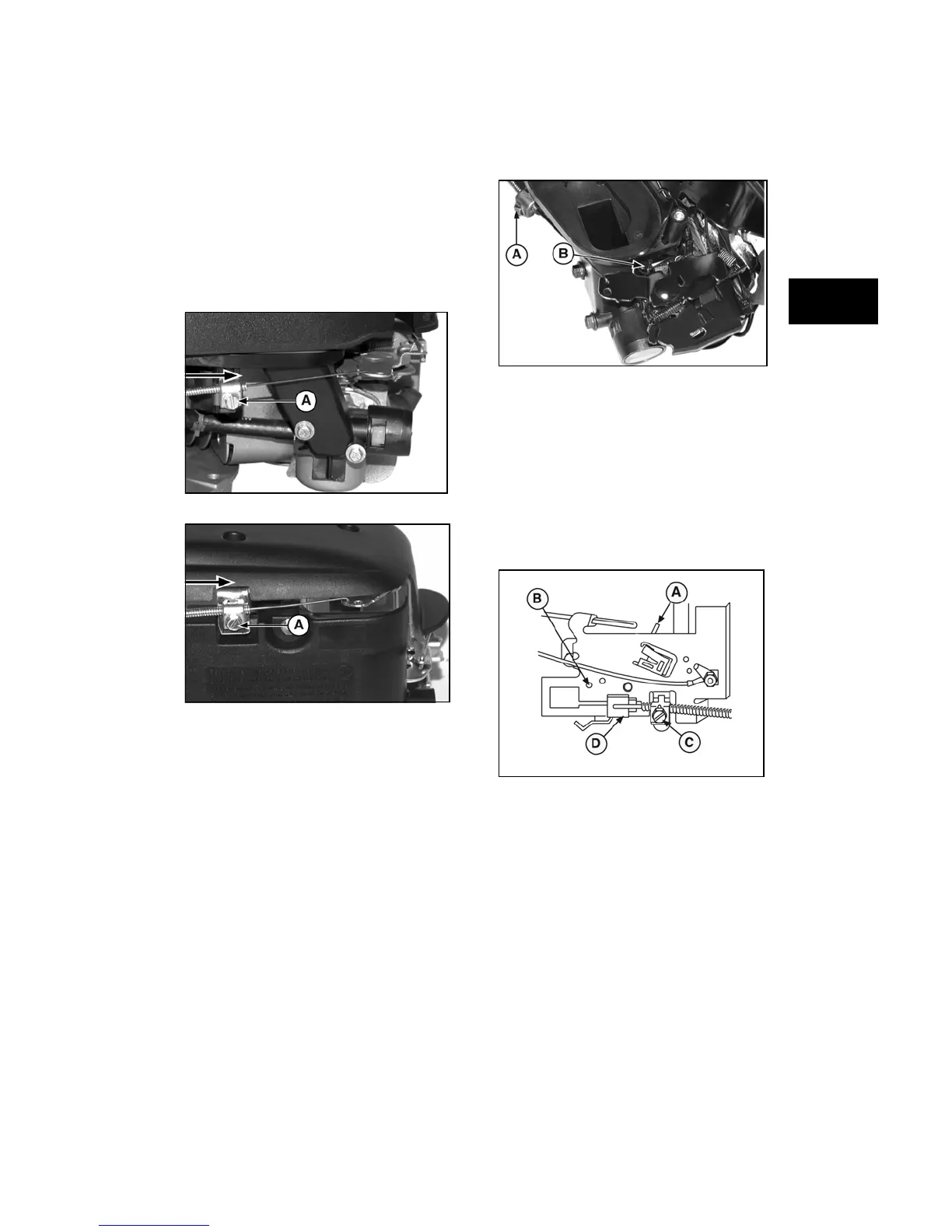

Figure 24
Figure 25
Vertical Models Series 110000, 120000 with
Choke-A-Matic® Carburetors
1. Loosen casing clamp screw
(A, Figure 26).
2. Move throttle lever to fast position.
3. Move casing in direction of arrow until
casing stops moving and choke lever (B)
moves to full choke position.
Figure 26
4. Tighten casing clamp screw.
Horizontal and Vertical Models 200000,
210000, 280000, 310000, 330000
1. Loosen casing clamp screw
(C, Figure 27).
2. Set throttle control to FAST position.
3. Move governor control rack (D) until holes
are aligned (B) between control lever (A)
and the control bracket.
4. Tighten casing clamp screw.
Figure 27
