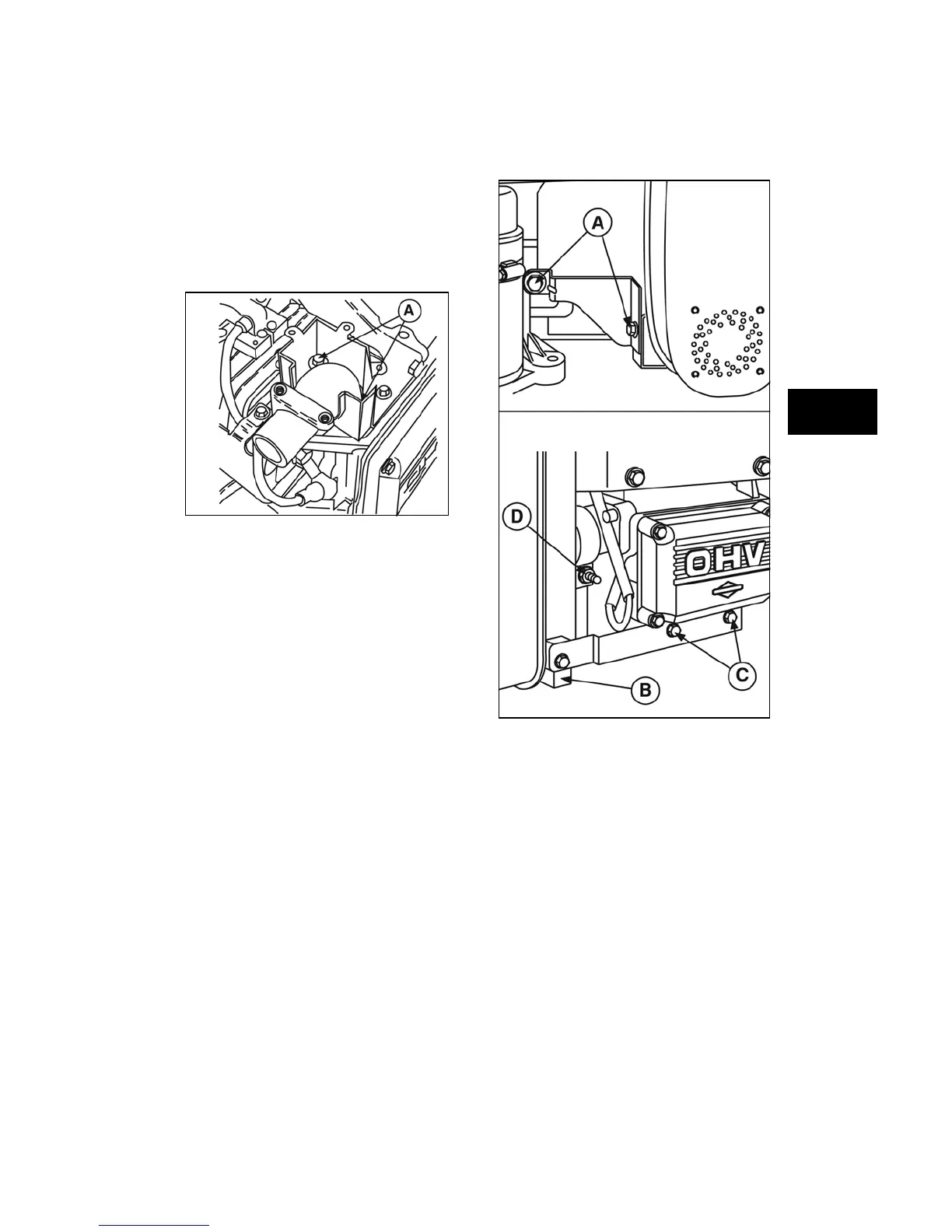

Install Muffler
1. Lightly coat muffler adapter screws with
Valve Guide Lubricant #93963.
2. Install new gasket and adapter. Install
screws (A, Figure 25) and torque to values
listed in Section 12 - Engine
Specifications.
Figure 25
3. Install muffler supports and start but do not
tighten screws (A, B, C, Figure 26).
4. Slide muffler and muffler clamp on
adapter.
5. Torque muffler support screws (A, B, C) to
values listed in Section 12 - Engine
Specifications.
6. Torque muffler clamp (D) to values listed
in Section 12 - Engine Specifications.
Figure 26
