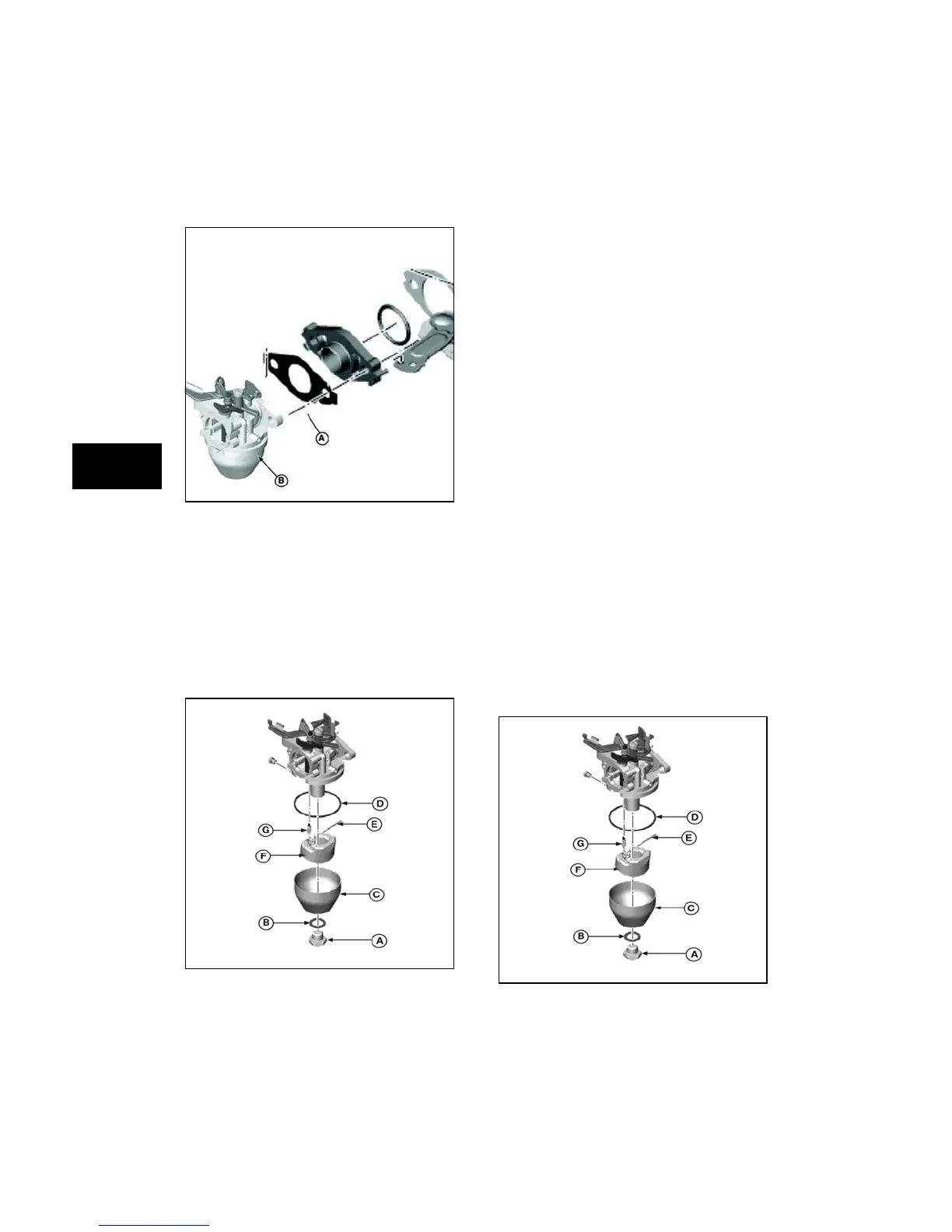

5. Remove gasket (A, Figure 36), spacer,
and o-ring between control bracket and
carburetor (B).
Figure 36
Disassemble Carburetor
1. Remove the fixed main jet (bowl nut)
(A, Figure 37) and fiber washer (B), then
remove the fuel bowl (C) and the bowl
gasket (D) from the carburetor body.
Discard the fiber washer and the gasket.
2. Remove the float hinge pin (E), float (F),
and inlet needle (G). Discard the hinge
pin, and inlet needle.
Figure 37
NOTE: Do not disassemble the carburetor body
or linkages.
Inspect and Clean Carburetor
1. Inspect openings in the carburetor body
for evidence of wear or damage. If found,
replace the entire carburetor assembly.
2. Inspect the choke shaft, choke valve,
throttle shaft, and throttle valve for
evidence of wear or damage. If found,
replace the entire carburetor assembly.
3. Using Carb/Choke Cleaner #100041 or
#100042, clean inside and outside
surfaces of carburetor, then follow with
compressed air to dry.
NOTE: Do not soak the carburetor in carb/choke
cleaner or it will be damaged.
4. If any passages remain plugged after
cleaning, replace the entire carburetor
assembly.
Assemble Carburetor
Consult the Illustrated Parts List to obtain the
appropriate carburetor overhaul kit before
reassembling the carburetor.
NOTE: Always replace air cleaner gaskets and
carburetor mounting gaskets any time the
carburetor has been removed for service.
1. Install new hinge pin (E, Figure 38), float
(F), and new inlet needle (G).
2. Install new bowl gasket (D) with the fuel
bowl (C). Replace the fiber washer (B)
and install the fixed main jet (A).
Figure 38
