6. Place seal protector in oil seal and slide
sump over crankshaft until it seats.
NOTE: It may be necessary to rotate crankshaft
and cam gear to get oil pump (if equipped) to
engage oil pump drive slot in cam gear.

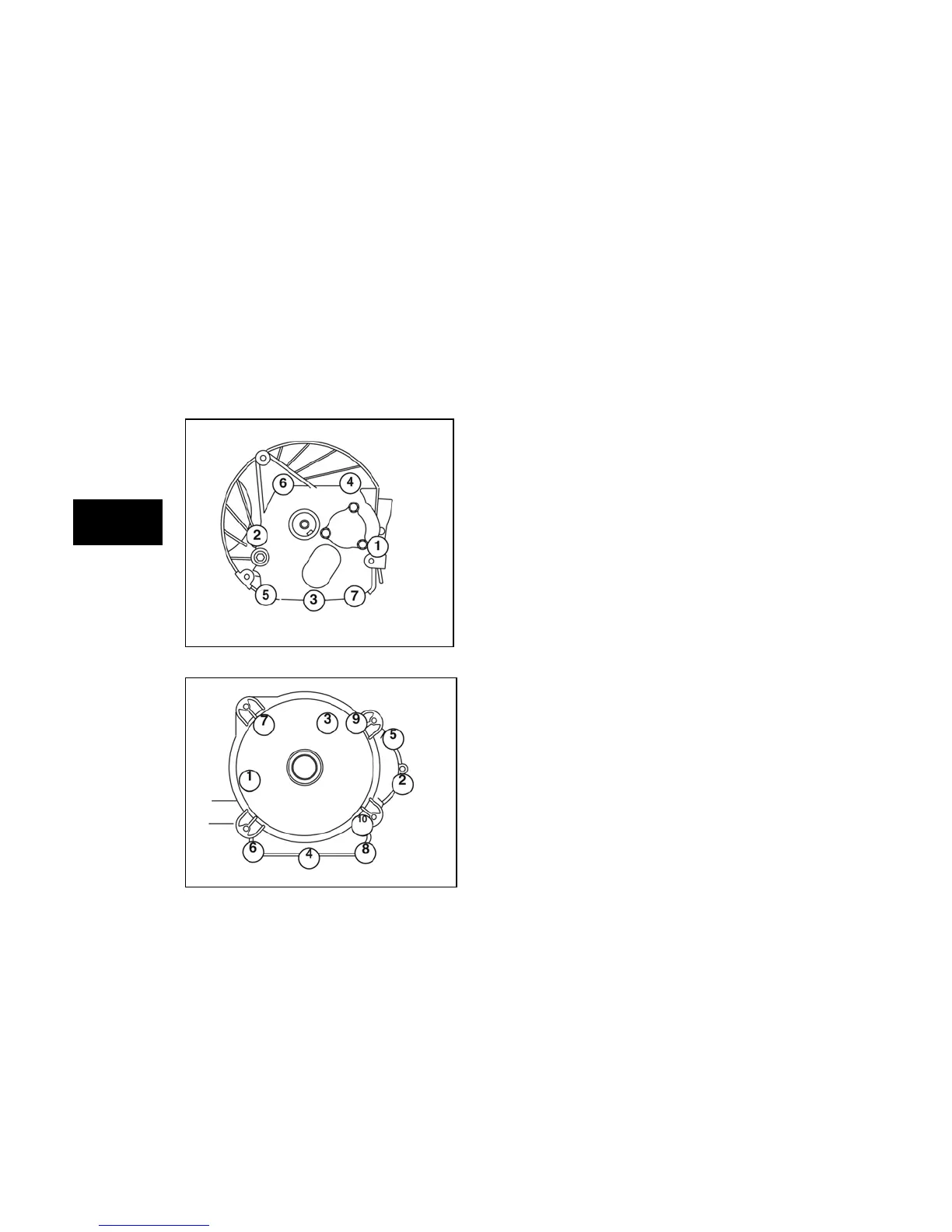

7. Install sump screws in order shown in
Figure 16 and Figure 17. Torque to values
listed in Section 12 - Engine
Specifications.
NOTE: The screw at position four or position
nine (Figure 16 or Figure 17) was factory coated
with sealant. Coat screw with a non-hardening
sealant, such as Permatex® 2 or equivalent,
before installing.
8. Adjust governor system per Section 1.
Figure 16
Figure 17
