Briggs & Stratton 273521 - Horizontal Models 200000, 210000

54
3
3

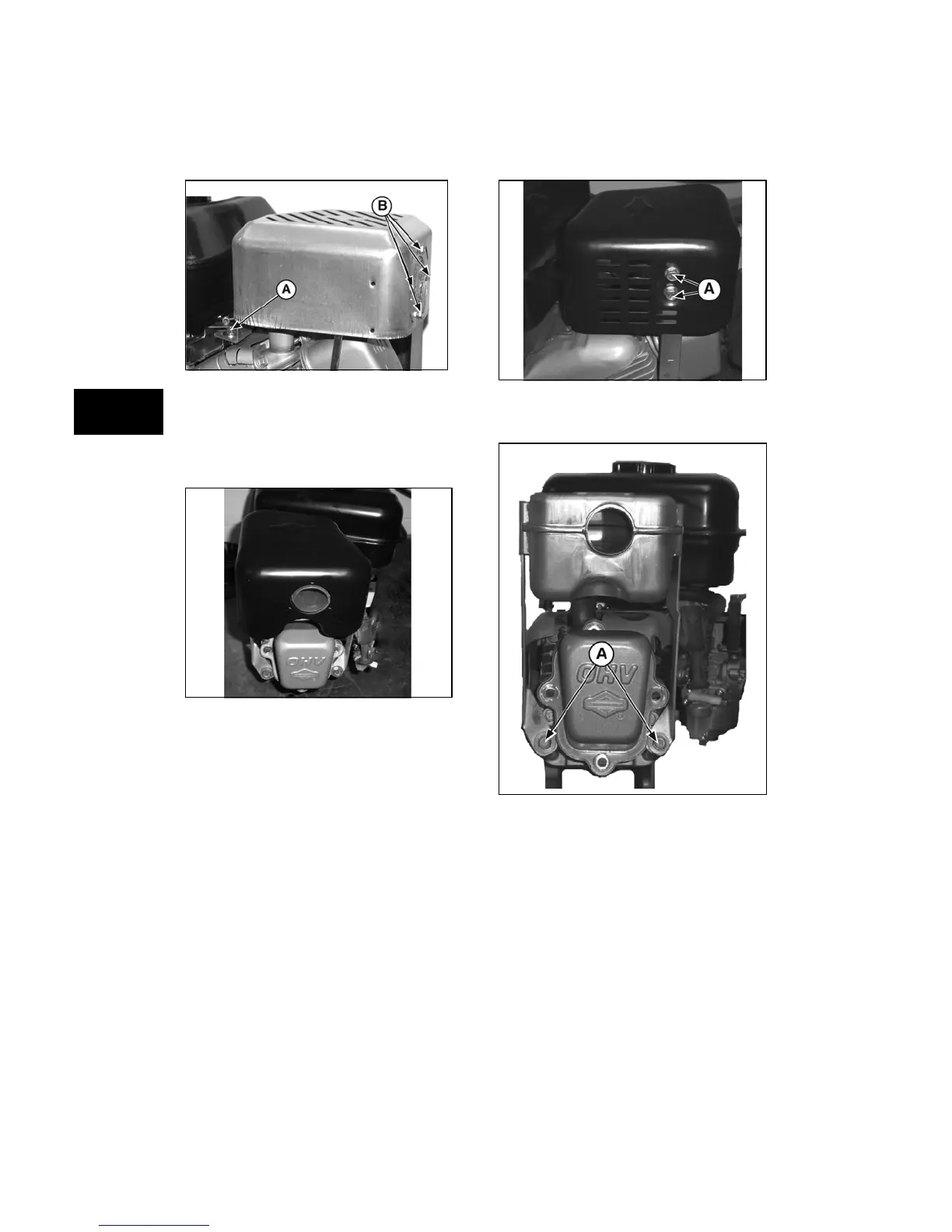

Figure 7
Horizontal Models 200000, 210000
Shown is a typical muffler application (Figure 8).
Figure 8
Remove Guard and Muffler
1. Remove screws (A, Figure 9) holding
muffler guard to muffler.
2. Remove screw holding muffler guard to
control bracket. Remove muffler guard
and set aside.
Figure 9
3. Remove muffler support screws
(A, Figure 10).
Figure 10
4. Remove the exhaust pipe screws, muffler
assembly, and gaskets. Discard gaskets
(Figure 11).
