Assemble Starter Drive - Roll Pin Retainer
1. Place clutch (E, Figure 31) on starter shaft
and rotate clutch until it drops into place.

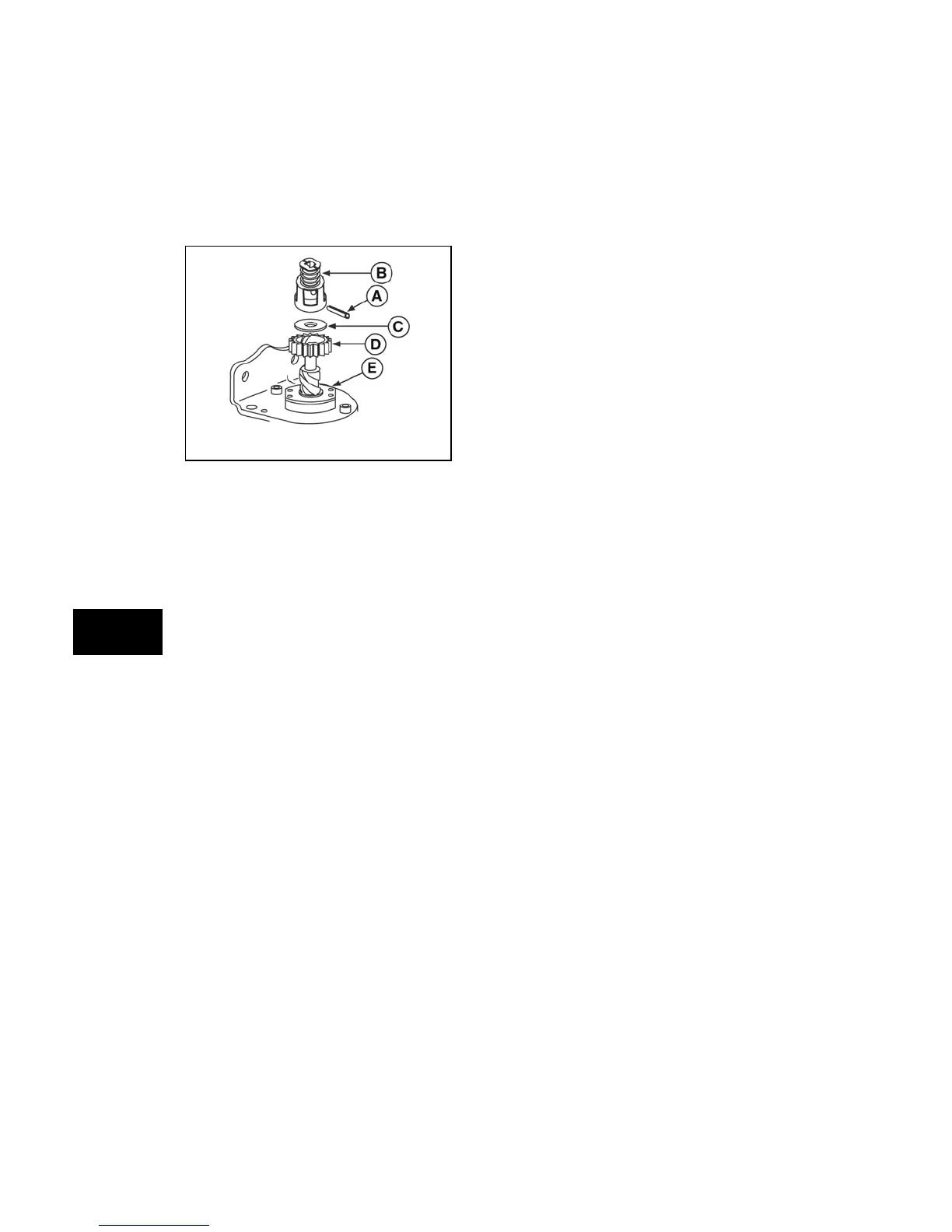

Figure 32
2. Install pinion gear (D) with beveled edge of
teeth up.
3. Place washer (C) and retainer (B) on
starter shaft.
4. Press new roll pin (A) through retainer slot
and starter shaft hole until pin is centered
in shaft.
5. Manually actuate pinion gear on helix to
ensure proper movement.
120-Volt Starters
The 120-Volt AC starter motors are not
serviceable. If a failure occurs, the entire motor/
switch assembly must be replaced. Refer to the
appropriate Illustrated Parts List to obtain
replacement part numbers.
