86
4
4

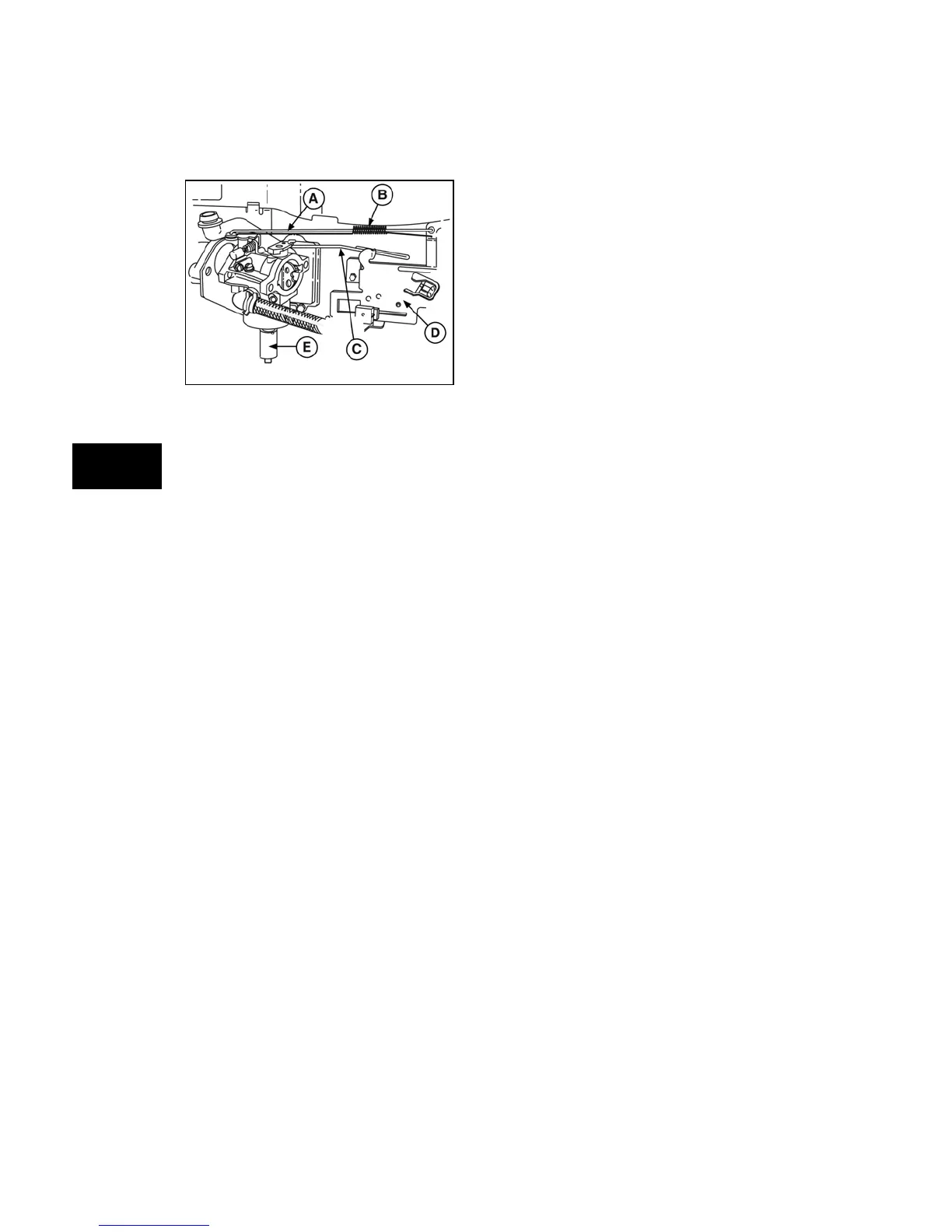

Figure 71
4. Hook choke link (C) into hole in choke
lever.
5. Position carburetor on manifold and install
screws or nuts by hand.
6. Actuate choke and throttle linkages to
ensure proper movement, then tighten
screws per values listed in Section 12 -
Engine Specifications.
7. Attach fuel hose to carburetor and secure
with hose clamp.
8. Using new gasket, install air cleaner
assembly per Section 1.
9. Connect wires to solenoid (E).
10. Adjust carburetor and/or governor settings
per Section 1.
Nikki LP/NG Mixer
Vertical Model 310000 Gaseous Fuel
Briggs & Stratton utilizes the Nikki Gaseous Fuel
Mixer on some of the 310000-Series Single-
Cylinder OHV engines. The mixer is not
serviceable, thus requiring replacement with a
complete assembly.
