GOVERNOR SYSTEMS
Linkage and Spring Orientation
NOTE: Be sure to note hole position of linkage
before removing.

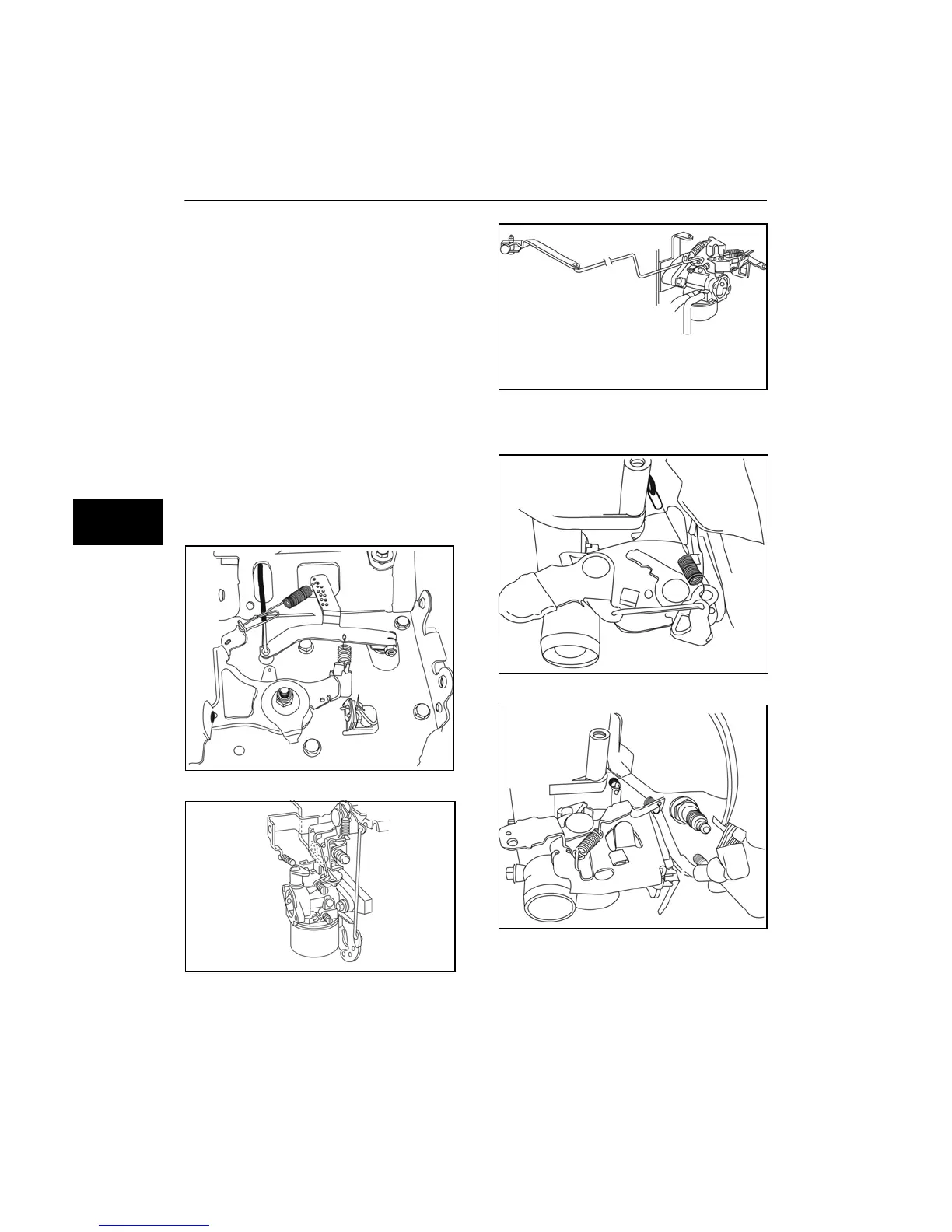

• Figure 1 - Horizontal Shaft Models
110000, 120000, 150000, 200000,
210000.
• Figure 2 - Vertical Shaft Model 97700
• Figure 3 - Vertical Shaft Model 99700
• Figure 4 - Vertical Shaft Models 110000,
120000, 210000 (Primer Carburetors).
• Figure 5 - Vertical Shaft Models 110000,
120000, 210000 (Choke-A-Matic®
Carburetors).
• Figure 6 - Models 280000, 310000,
330000 (Choke-A-Matic® Carburetors).
• Figure 7 - Models 280000, 310000,
330000 (Manual Friction).
• Figure 8 - Models 280000, 310000,
330000 (Manual Choke).
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
