Fuel Tank and Fuel Hose
Slide the two mounting tabs of the fuel tank into the slots of the flywheel guard (Figure 11). Press down until the
tank snaps into the metal bosses of the flywheel guard.

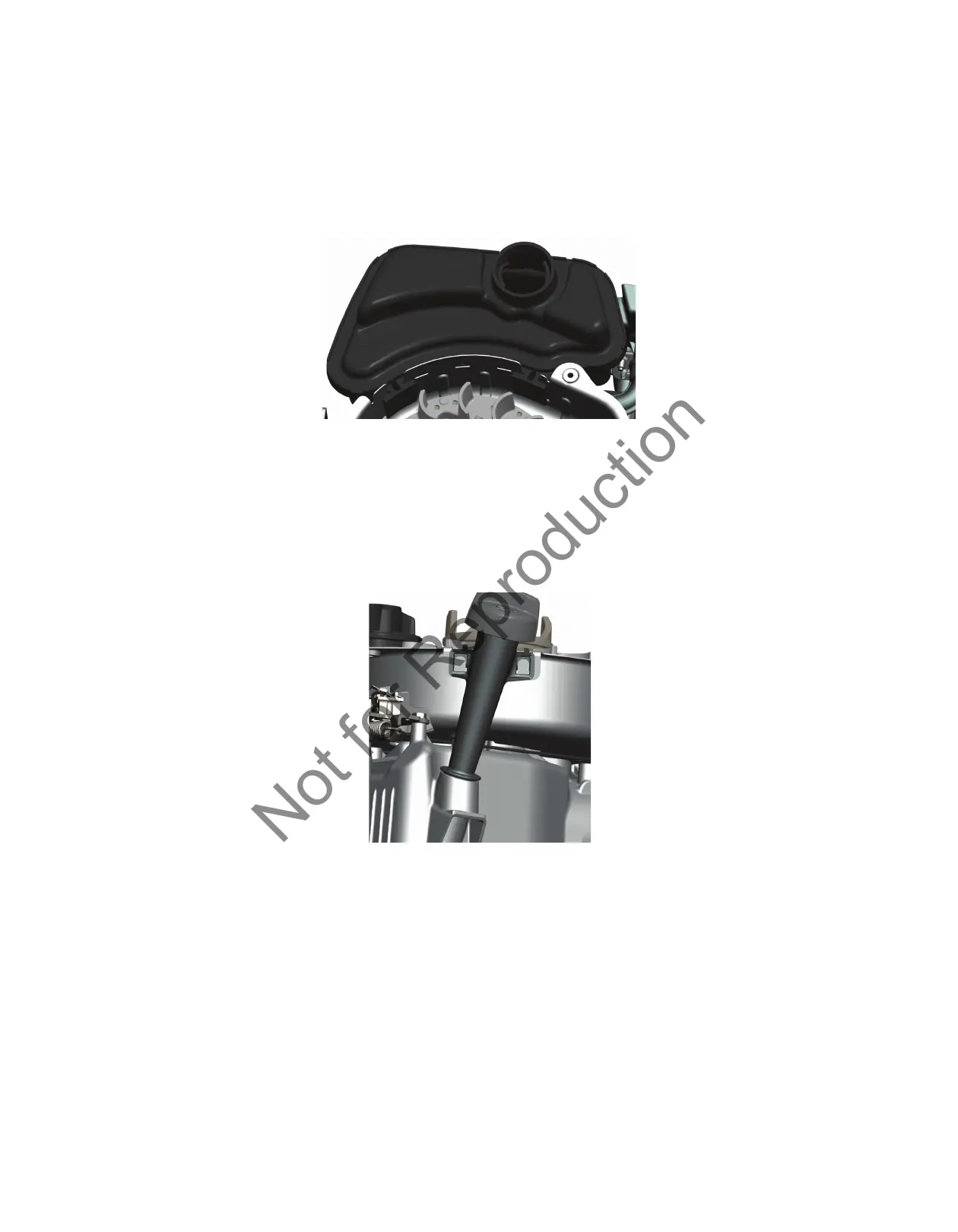

Figure 11
Oil Dipstick and Dipstick Tube
The short oil dipstick screws directly into the cylinder. The extended dipstick tube is pressed into the cylinder
and hooks over the edge of the flywheel guard (Figure 12). The tube is held in place when the blower housing is
installed.
Figure 12
