6.3.2.3LARGE FLANGE DISK POSITION（OPTIONAL）
This position is adapted to the mount of the large tire.
Main shaft large flange plate（fixed on the
main shaft） wheel cone quick nut
Note：The choice on the cone should be adapted to the
rim center hole and pay attention to its direction. Or it
will cause the inaccurate measurement.
6.4 INPUT VALUE

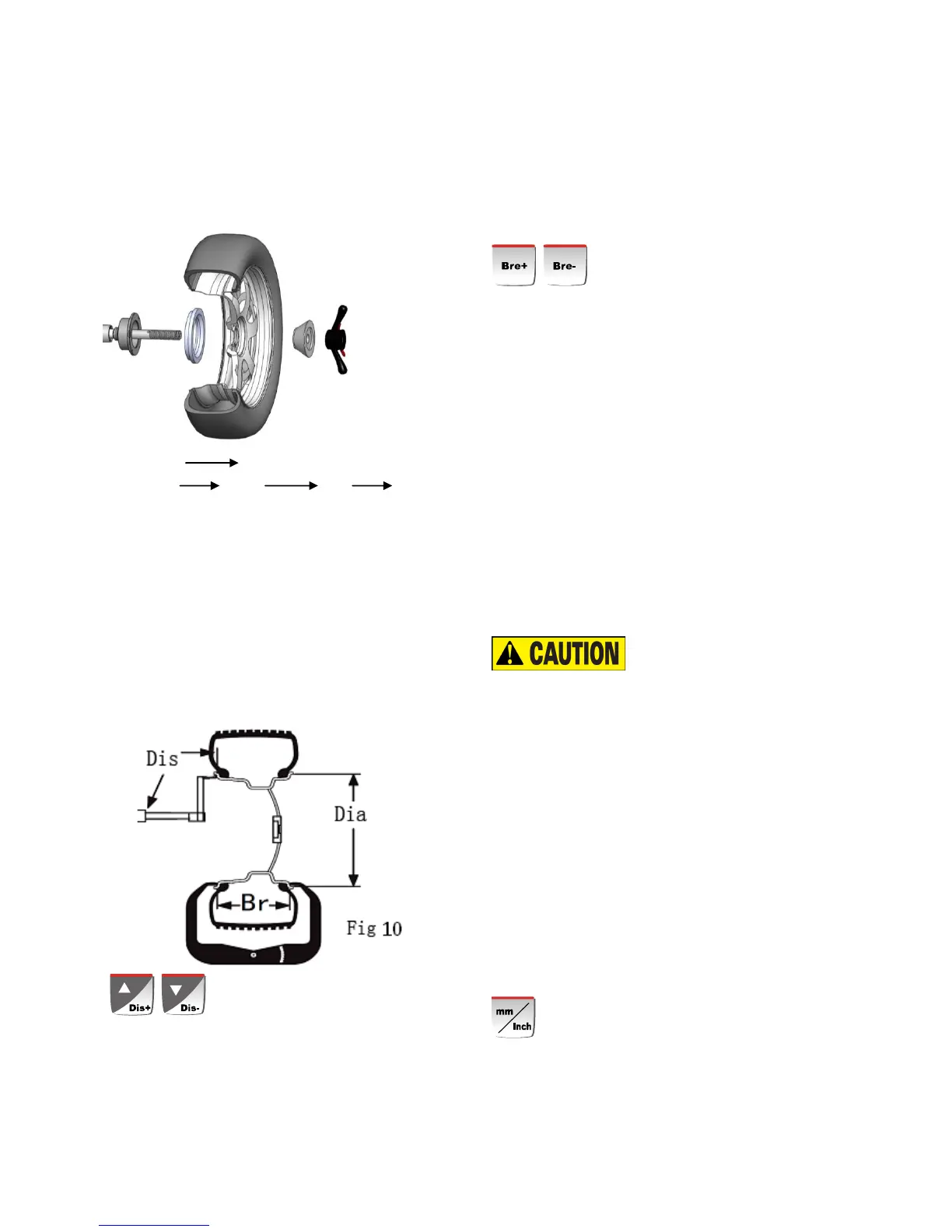

6.4.1 Input Distance
Pull the Dis scale to the position stuck
on the rim. Press the key to input the Di value into the
display. At this moment, the display will display ―Dis‖：
―XXX‖. And we can also adjust this value by rotating the
tyre fixed on the main shaft.
When use the automatic scale, the distance from the
machine frame to the tire can be accessed
by the automatic scale. To reach the measurement
accuracy, you must execute a self-calibration
before operation.
6.4.2 Input (Br) eadth Value
Use the Br caliper of the accessories to measure the
breadth of the rim. Press the key to input the Br value
into the display. And now the display will display ―Br‖：
―XXX‖. And we can also adjust this value by rotating
the tyre fixed on the main shaft.
6.4.3 Input the Tire Diameter Value(Dia)
After confirming the rim diameter, press the key to input
the rim diameter into the display. At this moment, the
display will display ―Dia‖：―XXX‖，And we can also adjust
this value by rotating the tire fixed on the main shaft in
this process we should open this function. The machine
can automatically access the diameter of the rim
tested.
Note：When you balance the tire with the relative larger
diameter（ DIA>23‖ ） ,you can adopt long scale to
automatically measure. It is very conveniently.
The detailed measurement methods: Fist pull the scale
to enter the long scale situation and then pull the scale
to the zero position. At this moment, you will hear the
sound of click and then quickly pull the scale to the
measurement position. When the measurement result
is same to the short scale measurement result, using
long scale to measure the tire of larger diameter is
more convenient.
6.4.4 UNIT CONVERSION SELECTION：
①The unit conversion of the Br of the rim from
inch to mm:
Normally, the display of Br should be in inch. When you
need the unit of the display to be mm, you can use the
