As shown of the above figure, slip the protective cover
into the protective cover support tubeand insert the
socket head screw M10X50. And then lock the
locknut along the reverse direction and loose the 2
hexagon nut to tight the socket head screw.，This can
prevent the protective hood from shaking to influence
the test.
2.2 MAIN SHAFT INSTALLATION
MAINSHAFT INSTALLATION：Before installation,
use the ethyl alcohol and compressed air to clean up

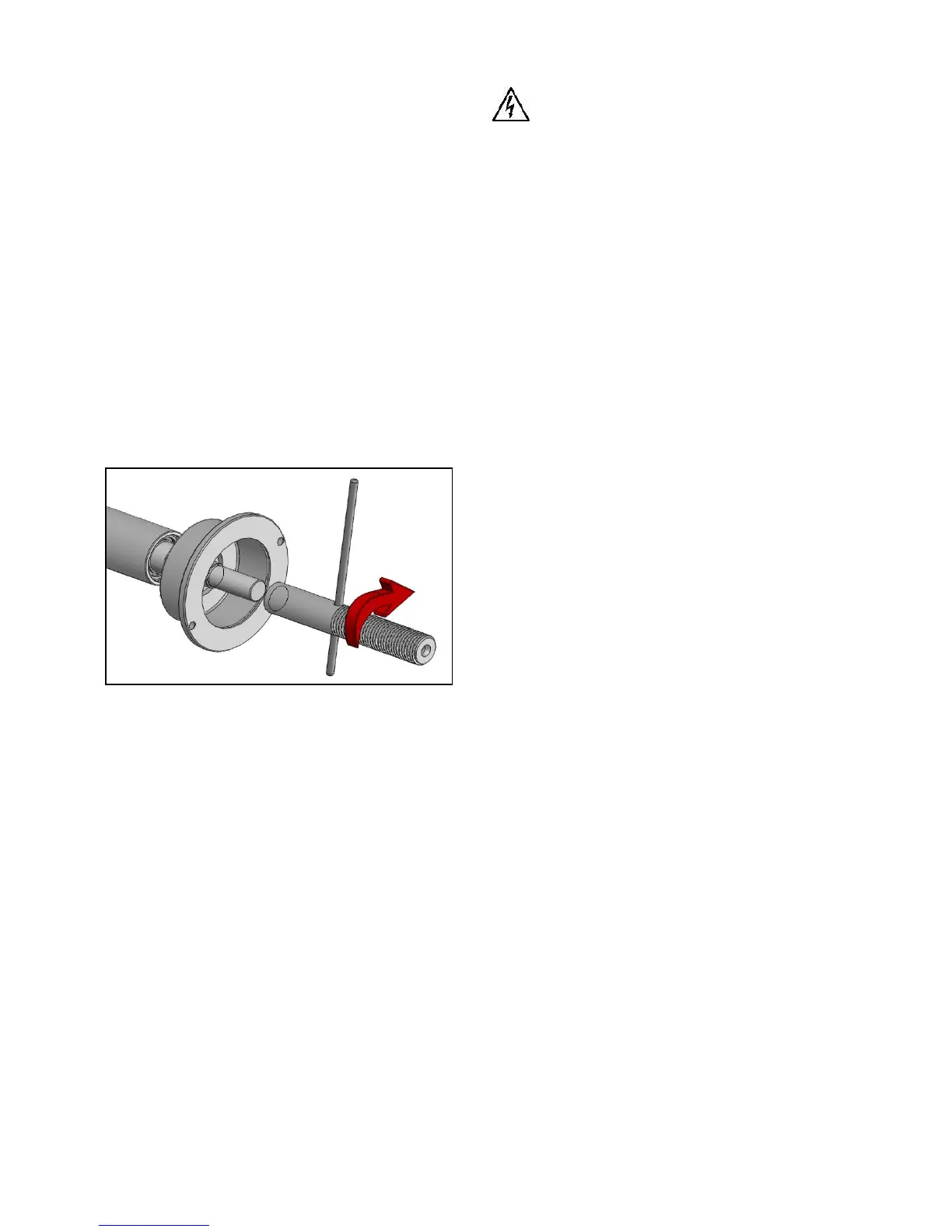

the center hole of the shaft and connect part. Use
spanner and screw to fix the thread shaft on the
balance shaft (Fig2)
2.3 EQUIPPED WITH POWER SUPPLY
ATTENTION! According to the label on the connect
between power cable and body, the power cable
connect socket must be grounded with the reliable
earth wire.
All the electrical devices installation must be done by
the qualified staff. Before installation, please check If
the power system is comply with the technical
parameter marked on the nameplate of the machine.
The wiring of the machine must have the fuse and the
perfect ground protection. And install the electrical
Leakage automatic controls switch in the power
source. And recommend the application of the
stabilizer if the voltage of installation site is unstable.
WARNING
Any electrical connect in the workshop is only done by
the qualified technical staffs and it should meet the
enforced regulation. .
Any electrical connect must be according to the
following:
• Power on the data plate on the machine;
• Voltage decrease can not exceed 4% of the rated
voltage on the data plate when full load (10% when
start)
-Operators must:
• Install the plug;
• install 30ma circuit breaker;
• install power cable fuse;
• provide with effective workshop electrical connect to
ground;
- prevent the authorized operation and pull out the plug
to prolong the working life when not use the machine.
- if the machine directly connected to the power source
through the power board not the plug, we should use
the qualified staffs to operate.
3. ⅢCB958 WHEEL BALANCER
TECHNICAL CHARACTERISTIC
3.1CHARACTERSIC：
－adopts quality computer with the feature of high
intelligence and high stable
－mechanical main shaft adopts high precision bearing
driven, wear-resistant, low noise
－press stop key to realize the emergency stop
－full automatic dynamic/static balance check
－balance 3 ALU rim and 1 motorcycle tire
－self-calibration and full automatic trouble diagnosis
3.2MAIN TECHNICAL SPECIFICATION
－rated voltage 230V 60HZ
－power 250W
－speed 7S（when wheel is about 20Kg）
－accuracy 1g
