Choose a good, cleared assembly area
and get a friend to help you put your grill
together. Lay card board down to protect grill
finish and assembly area. Turn the grill on its
side to begin assembly.

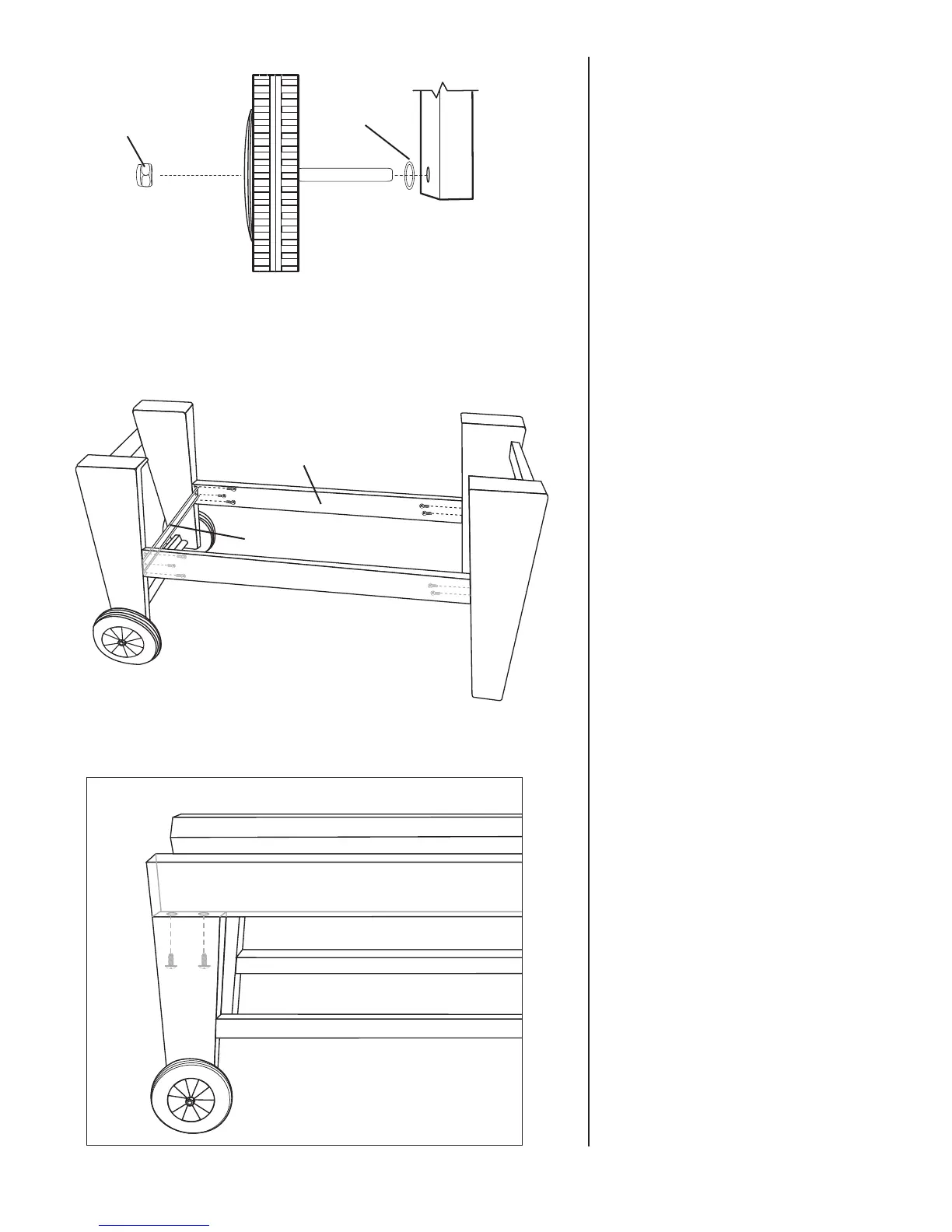

Step 1
Attach the wheels to the left leg. Remove
pre-attached M12 washers and M12 lock
nut from wheel axle. Attach wheel washer
and wheel axle through the leg and tighten
M12 lock nut. Repeat for other wheel.
Step 2
Attach the lower brackets to the left and
right legs using eight M6 X 10 mm bolts.
Step 3
Attach tank block bar to the left legs using
two M6 X 10 mm bolts.
Step 4
Attach the upper brackets to the left and
right legs using eight M6 X 10 mm bolts.
M12 Lock Nut
M12 Washer
Tank Block Bar
Lower Bracket
26
To Next Page
