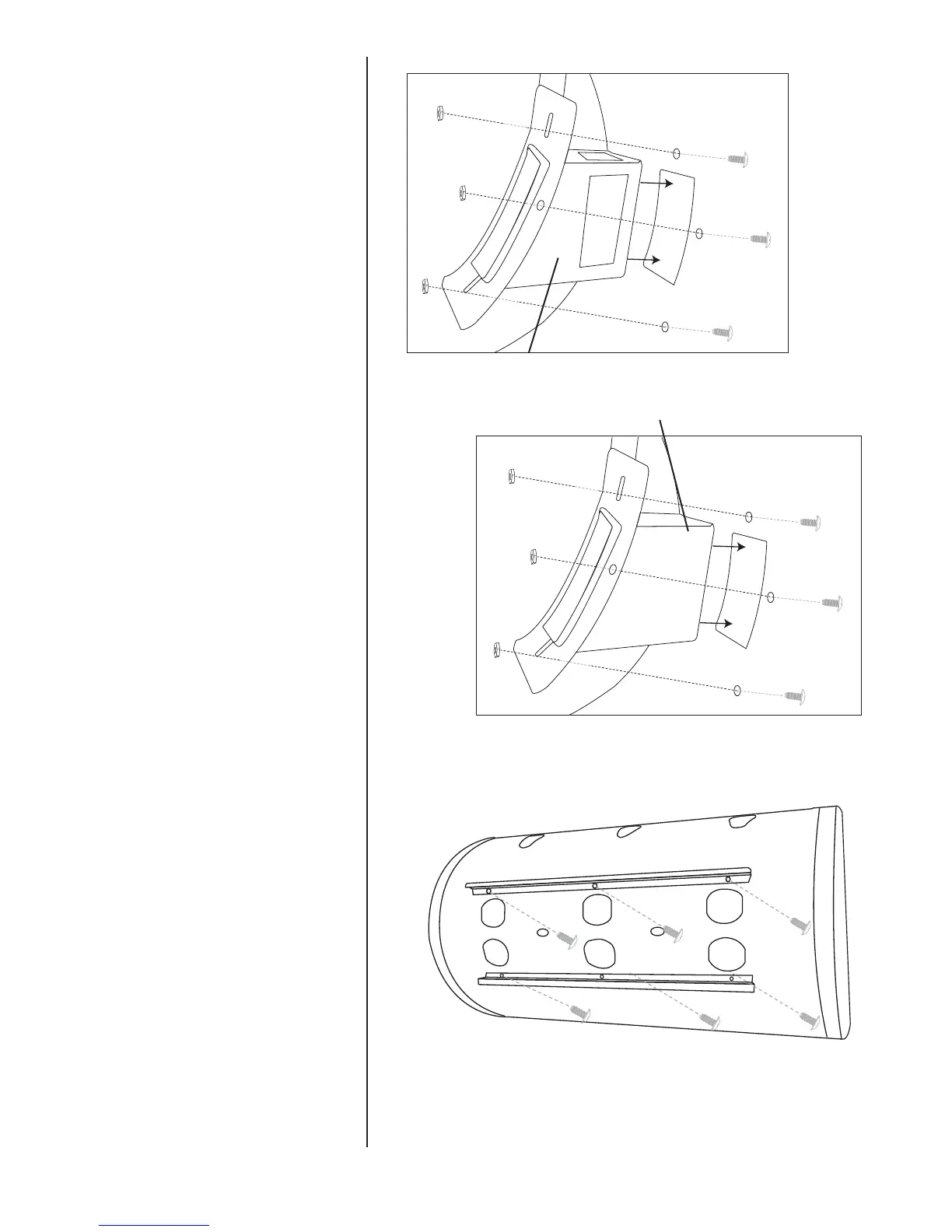

Step 5
Attach gas grill chimneys to gas grill lid
assembly using three M5 X 10 mm bolts
and M5 nuts for each chimney.
Note: Gas grill lid assembly has exhaust
vents in the back.
Step 6
Attach charcoal grill chimneys to
charcoal grill lid assembly using three
M5 X 10 mm bolts and M5 nuts for each
chimney.
Step 7
Attach grease tray brackets to gas grill
bottom using six M6 X 10 mm bolts.
Gas Grill Chimney
Charcoal Grill Chimney
27
