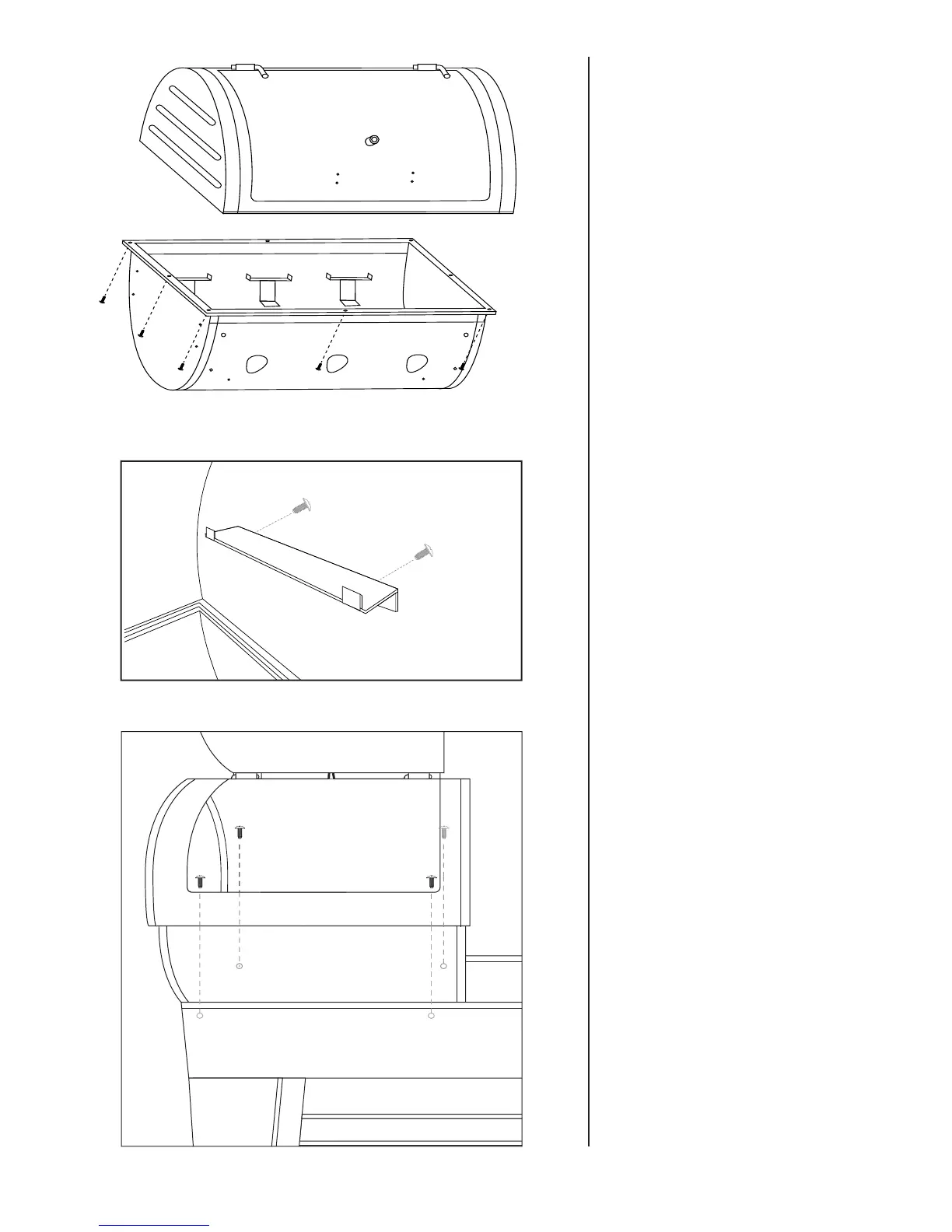

Step 8
Attach gas grill lid assembly to gas grill
bottom using eight M4 X 6 mm bolts.
Repeat for charcoal grill lid assembly.
Note: Gas grill lid assembly has exhaust
vents in the back.
Step 9
Attach two warming rack brackets to the
gas grill lid assembly using two
M4 X 10 mm bolts for each bracket.
Repeat for charcoal grill lid assembly.
Step 10
Attach gas grill assembly to the cart base
using four M6 X 10 mm bolts. Repeat for
charcoal grill assembly.
28
