Front Legs
Clear an assembly area and get a friend to
help you put your grill/smoker together. Lay cardboard
down to protect grill/smoker
finish and assembly area.
WARNING: Remember, your new
grill/smoker weighs more
than 150 lbs. so be extremely careful
during the assembly process.

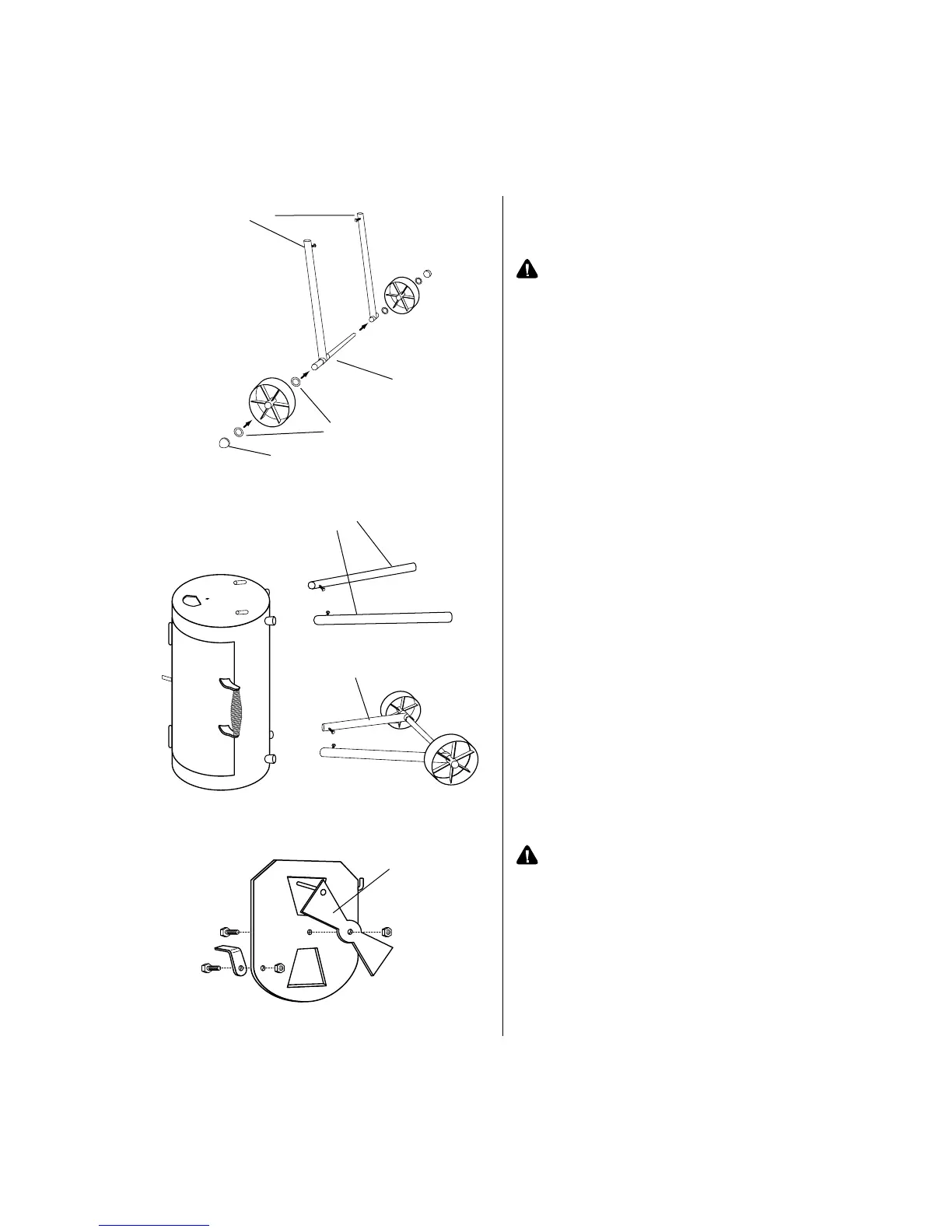

Step 1
With leg screws facing inward, insert
axle rod through both rear leg receivers. Place a
w" washer on either side of a either 52" wagon
wheel and insert on
one end of axle. Repeat on other side. Place axle
caps on each end of axle and hammer into place.
Step 2
Place grill/smoker on end with the
door closed as illustrated. Make sure
that another person is holding the
cooker steady.
Step 3
Install assembled legs onto the leg receivers
closest to ground. Using a
9
⁄
16
" wrench tighten
screws securely.
Step 4
Install front legs onto leg receivers with screws
facing in. Using a
9
⁄
16
" wrench tighten screws
securely.
Step 5
Keeping lid closed and with the help of
an assistant, carefully turn the
grill/smoker to its upright position.
Try to minimize the stress placed on
the legs.
CAUTION: Keep lid closed when setting
unit upright to prevent bodily injury.
Step 6
To install air vent damper, open door and attach
damper to inside of door as illustrated. Do not
overtighten as this will make the air vent difficult to
open and close.
NOTE: Make sure air vent damper handle faces
outside of the door.
Rear Leg Receiver
Axle Rod
Axle Cap
w" Washer
Assembled
Rear Legs
Butterfly
Damper
4
