BRINKS 80 Series - Install Strike

d.
b.

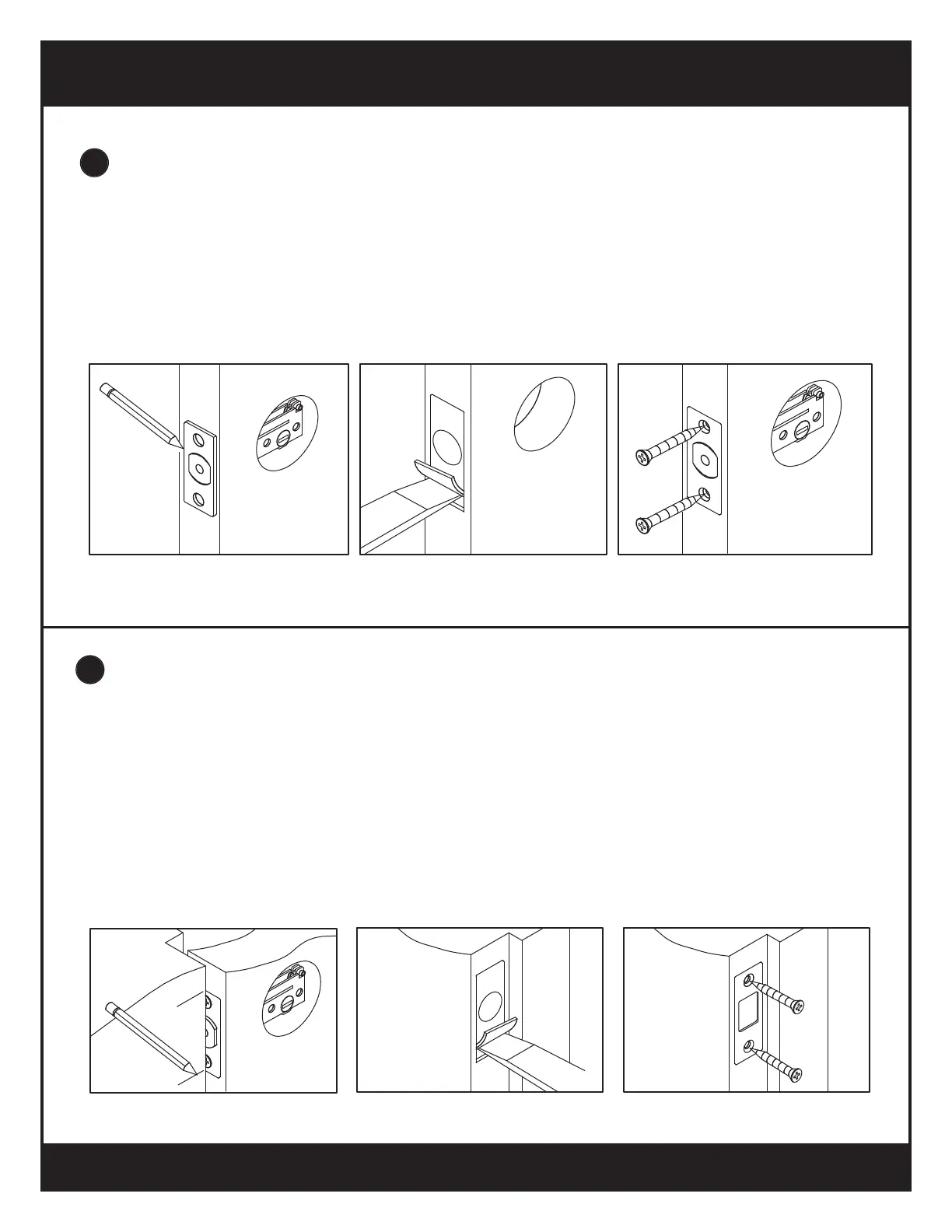

Mark latch screw holes and drill two 1/8" (3 mm) pilot holes for the latch screws.
a.
Insert latch into hole, mark outline of faceplate, and chisel 1/8" (3 mm) deep or until the faceplate is ush with
the door edge.
c.
Install latch into the hole in the edge of the door with the slotted cam at the bottom.
Insert two (S1) latch screws through the holes in the faceplate and tighten rmly.
Install Latch
3
c.
a.
4a
4c
Mark centerline on the door jamb exactly opposite the latch hole in the door edge.
b.
Drill a 1" (25.4 mm) hole 1-1/8" (29 mm) deep in the door jamb.
Position the strike plate over the 1" hole and mark the outline. Chisel about 1/16" (1.6 mm) deep or until strike
plate is ush with door jamb.
d.
Mark strike plate screw holes and drill two 1/8" (3 mm) pilot holes for the (S3) strike plate screws.
Place the strike plate in the prepared position in the door jamb, aligning the screw holes in the strike plate over
the pilot holes. Insert two (S1) latch screws through the holes in the strike plate and tighten rmly.
Install Strike
4d
(S1)
(S3)
4
INSTALLATION INSTRUCTIONS
(
Continued
)
3
