INSTALLATION INSTRUCTIONS
(
Continued
)
c.
a.

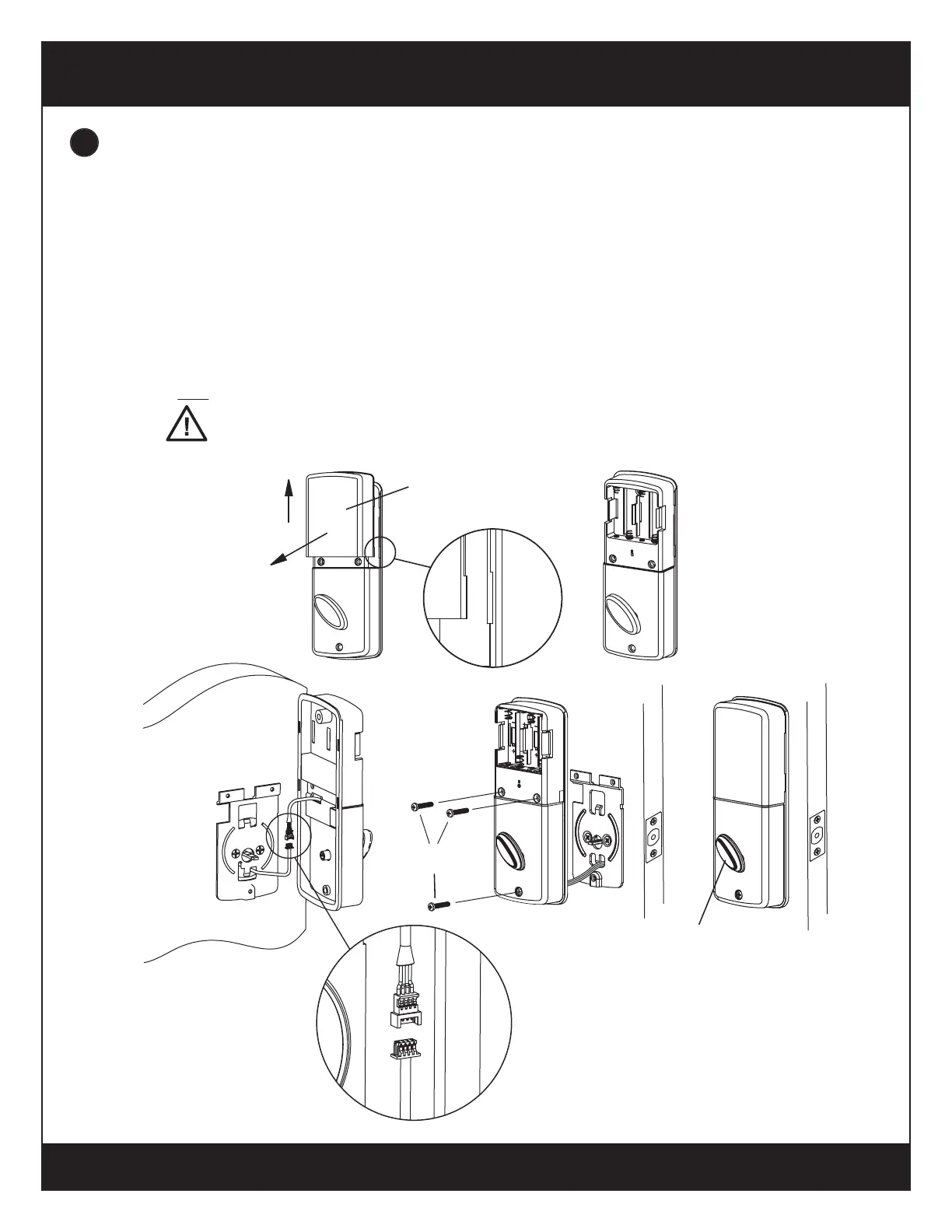

Remove the battery cover by rst pushing it up until the tabs on the cover are aligned with the slots in the module
housing. Then pull the cover out. To reinstall the battery cover, reverse these steps.
b.
Connect the exterior IC Wire to the interior IC Wire by pushing them together. See the illustration for the connec-
tor orientations.
Place the Receiver Module against the door, making sure that the Tailpiece engages the slot in the Turnpiece.
d.
Check deadbolt operation by rotating the Turnpiece back and forth. The bolt should extend and retract freely. If
it does not, the Turnpiece may be in the wrong orientation. See Step 8.
e.
After checking proper mechanical operation, attach the Receiver Module to the Mounting Plate using 3 (S4)
Receiver Screws.
f.
Insert 4 NEW AA 1.5V alkaline batteries using the diagram in the battery compartment and replace the battery
cover.
DO NOT MIX OLD AND NEW BATTERIES!
Install Receiver Module
9
(S4)
Battery
Cover
a
b
c
Turnpiece
5
To Next Page
