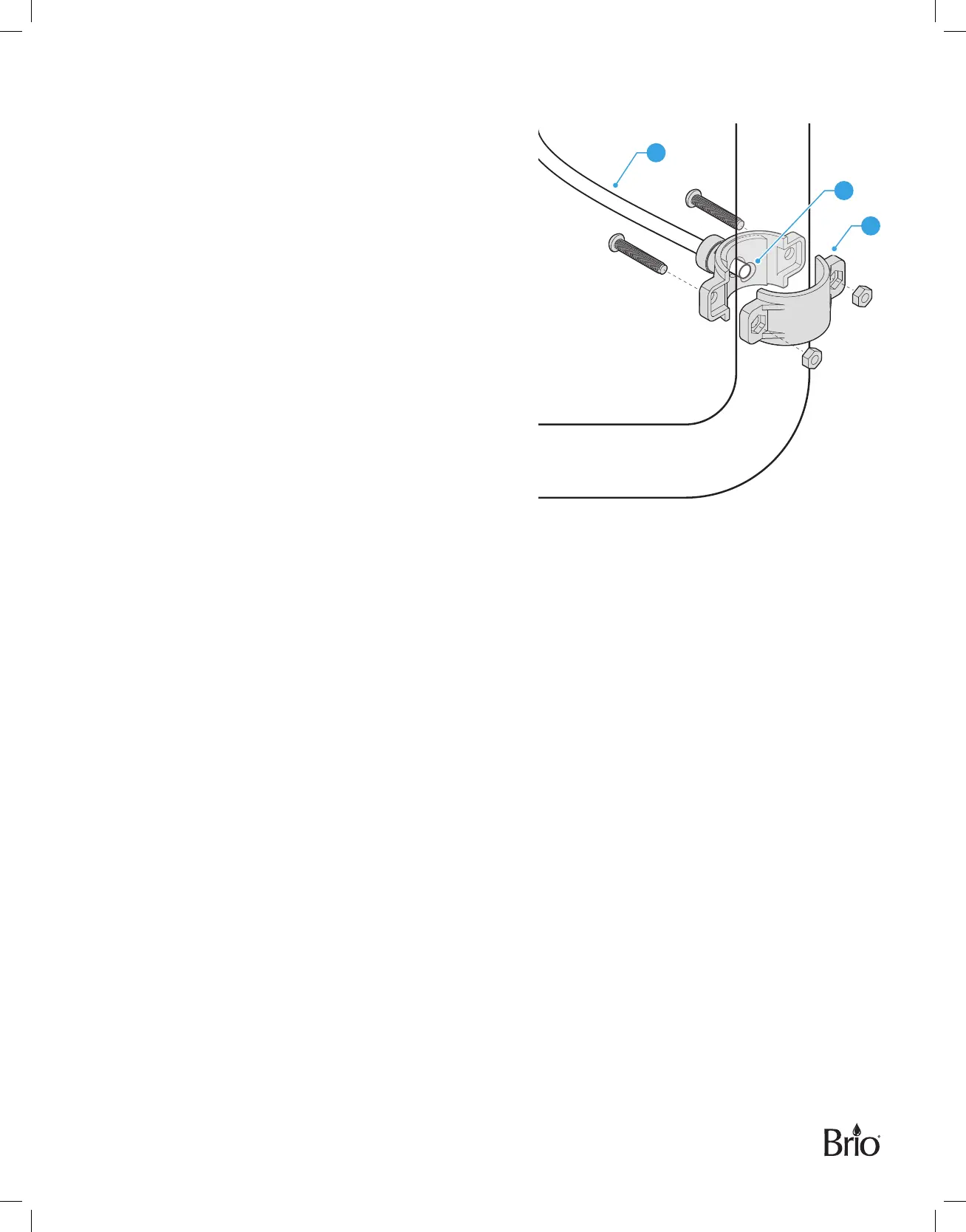

To install the Reverse Osmosis (RO) drain saddle:
A. Determine the location for your drain saddle (H)
and then make a mark on the drain pipe for the
opening(12).
B. Use your drill and a 1/4 in. drill bit to create a hole at
the mark, ensuring you only drill through one side of
the drain pipe.
C. Find the half of the drain saddle (H) with the hole in
the center, remove the backing from the foam gasket,
align the gasket with the hole on the drain saddle(H),
and stick the adhesive side of the gasket to the drain
saddle(H).
D. Position both halves of the drain saddle (H) on the
drain pipe with the saddle’s opening aligned over
the drilled hole, and insert your drill bit through the
saddle(H) and drilled hole to ensure proper alignment.
E. Secure both ends of the drain saddle (H) together
using the bolts and nuts, but do not overtighten.
F. Connect the RO waste water tube (I) to the drain
saddle(H).
I
H
12
