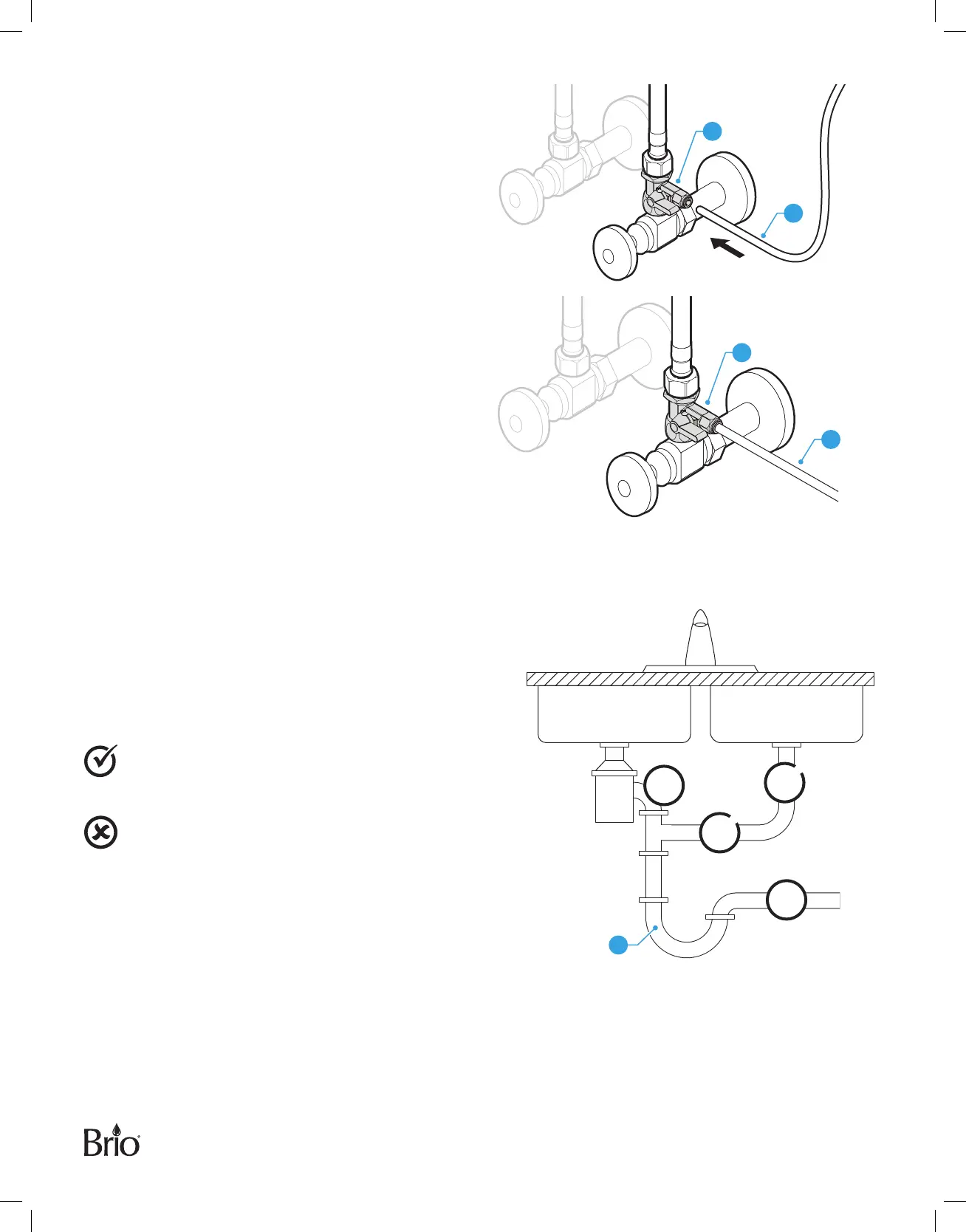

D. Insert the shut-o valve tube (J) straight into
the quick connector piece of the feed water
adapter (D).
E. Tighten the nut on the feed water adapter(D).
D
J
F. Gently tug on the shut-of valve tube (J) to
ensure a secure connection with the feed water
adapter (D).
D
J
3. Install the Reverse Osmosis Drain Saddle
The RO filter assembly requires a drain line connection
to be installed, which removes rejected water to the
sewer. The drain saddle connects the drain line from
the dispenser to your drain pipe. The drain saddle
is designed to fit around a standard 1.5 in. OD (outer
diameter) drain pipe.
Always install the drain saddle above the
P-trap(11). Ensure the drain saddle is in place on
the vertical or horizontal section of the pipe.
To avoid clogging the drain line with debris, do
not install the drain saddle on a section of piping
that is located after the drain pipe meets a
garbage disposal or dishwasher drain.
