3. Attach shower valve
3. Attach shower valve3. Attach shower valve
3. Attach shower valve

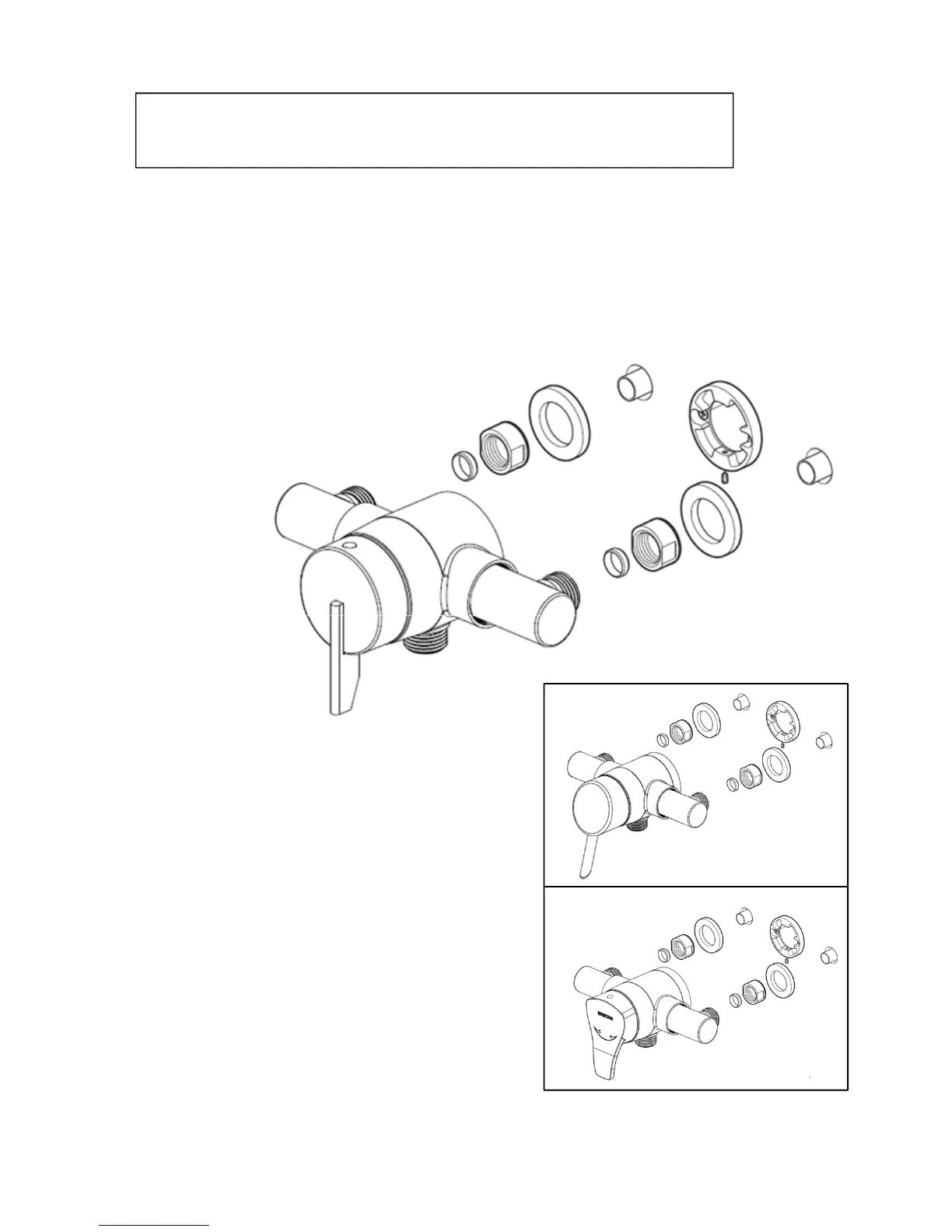

Place the shrouds over the water supply
pipes. Insert the 15mm hot and cold water
supply pipes into the inlet connections and
tighten the nuts. Ensure the olives and
filter are in place.
Secure the shower valve to the backplate
by tightening the backplate grub screw.
Shower Valve Installation cont.
Re-attach the shower valve to the
backplate by tightening the grub screw.
Note:
Note: Note:
Note: The shower valve inlet
positions are shown at the rear as an
example.
See pages 18-20 for installation of
riser rail and shower hose.
