Prior to Installation
This shower valve is supplied with two
small and two large elbows to give varying
centres.
Note:
Note: Note:
Note: The shower valve is supplied
with the small elbows fitted.
Choose elbow configuration to suit
Choose elbow configuration to suitChoose elbow configuration to suit
Choose elbow configuration to suit
Inlet centres
Inlet centresInlet centres
Inlet centres
2 x small elbows – 110-130 centres
2 x large elbows – 136-155
1 small elbow / 1 large elbow – 125-145
All measurements are in millimetres.
Unscrew small
elbow anti-clockwise
15
Need help?
Need help? Need help?
Need help? Give us a call on 0844 701 6273
0844 701 6273 0844 701 6273
0844 701 6273 and speak to one of our trained advisors.

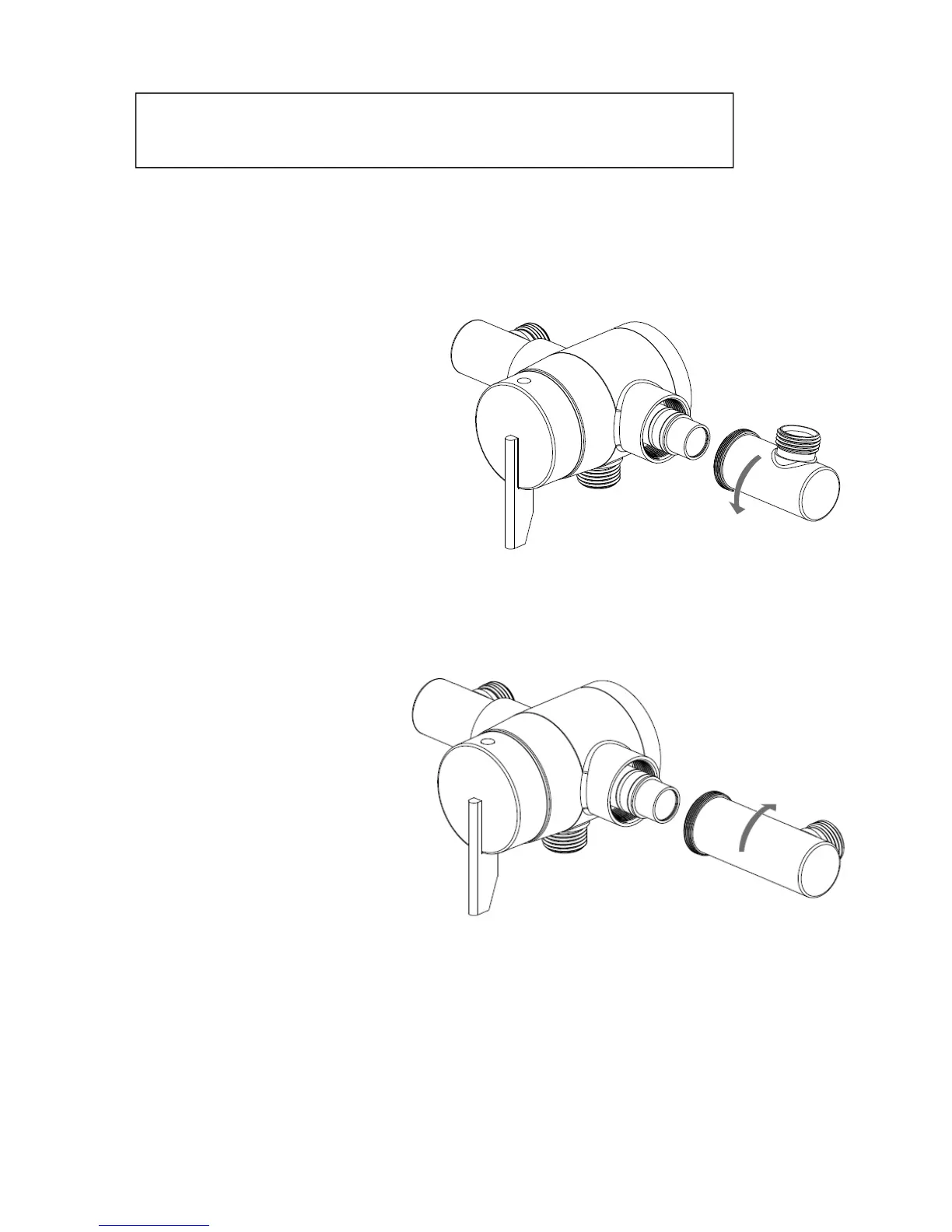

To remove the elbows
To remove the elbowsTo remove the elbows
To remove the elbows
To remove the elbows from the body
unscrew anti-clockwise.
To fit large elbows
To fit large elbowsTo fit large elbows
To fit large elbows
Screw the large elbows clockwise
into the valve body.
Important:
Important: Important:
Important: The elbows must have
at least two complete turns in the
valve body.
Screw in large
elbow clockwise
