1. Mark the position
1. Mark the position1. Mark the position
1. Mark the position
Position the assembled riser rail onto the wall,
bearing in mind the highest maximum position
required for the handset. With the riser rail
vertical, mark the position of the wall brackets
onto the wall surface.
2. Attach wall bracket fixings
2. Attach wall bracket fixings2. Attach wall bracket fixings
2. Attach wall bracket fixings
Remove the wall brackets from the rail and
then remove the fixings from the wall brackets.
Position the fixing bracket in the marked
positions against the wall, ensure they are
vertically in line with each other and mark the
centres of the fixing holes onto the wall.
Warning:
Warning: Warning:
Warning: Please check for any hidden
pipes and cables before drilling holes in the
Installation – Riser Rail
Note:
Note: Note:
Note: If replacing an existing riser
rail, check to see if the existing
holes can be reused or covered by
the new wall brackets. Try to avoid
drilling close to the edge of tiles,
drill in the middle of the tiles or in
the tile joints.

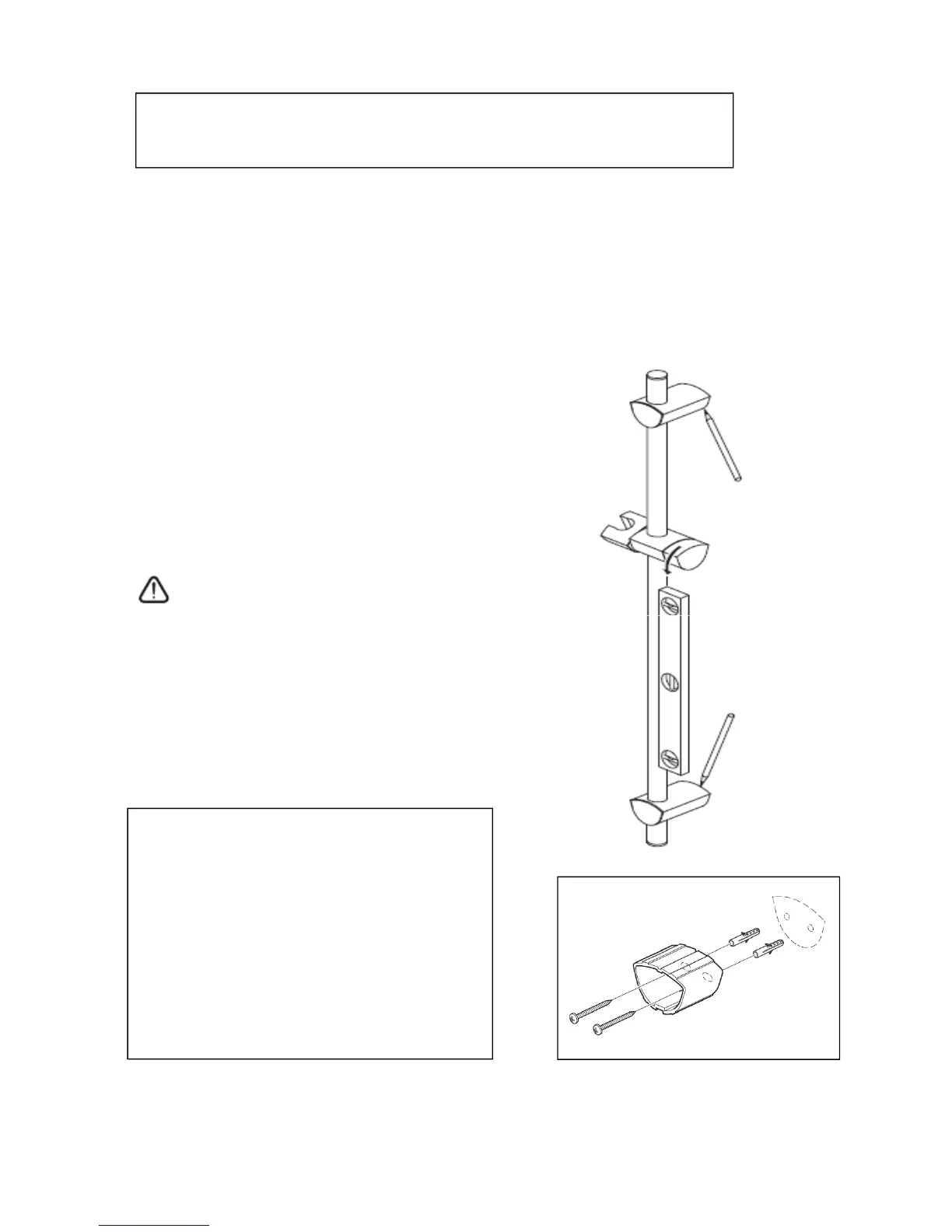

Slider
handle
Wall bracket
pipes and cables before drilling holes in the
wall.
Drill suitable holes and insert the wall plugs.
Securely attach the fixing brackets to the wall
sing the screws.
Tips:
Tips: Tips:
Tips: A piece of insulation or masking tape
positioned where holes are to be drilled and
before marking out the exact position for the
fixing holes will help stop the drill bit from
wandering, particularly on a tiled surface.
When working near a basin, bath or shower
insert plug or cover waste to prevent losing
small parts. Take care not to drop tools /
equipment into basin, bath or shower during
installation.
Wall bracket
Wall bracket
fixing
