Installation – Riser Rail cont.
Rail clamp
Bottom wall
Bracket

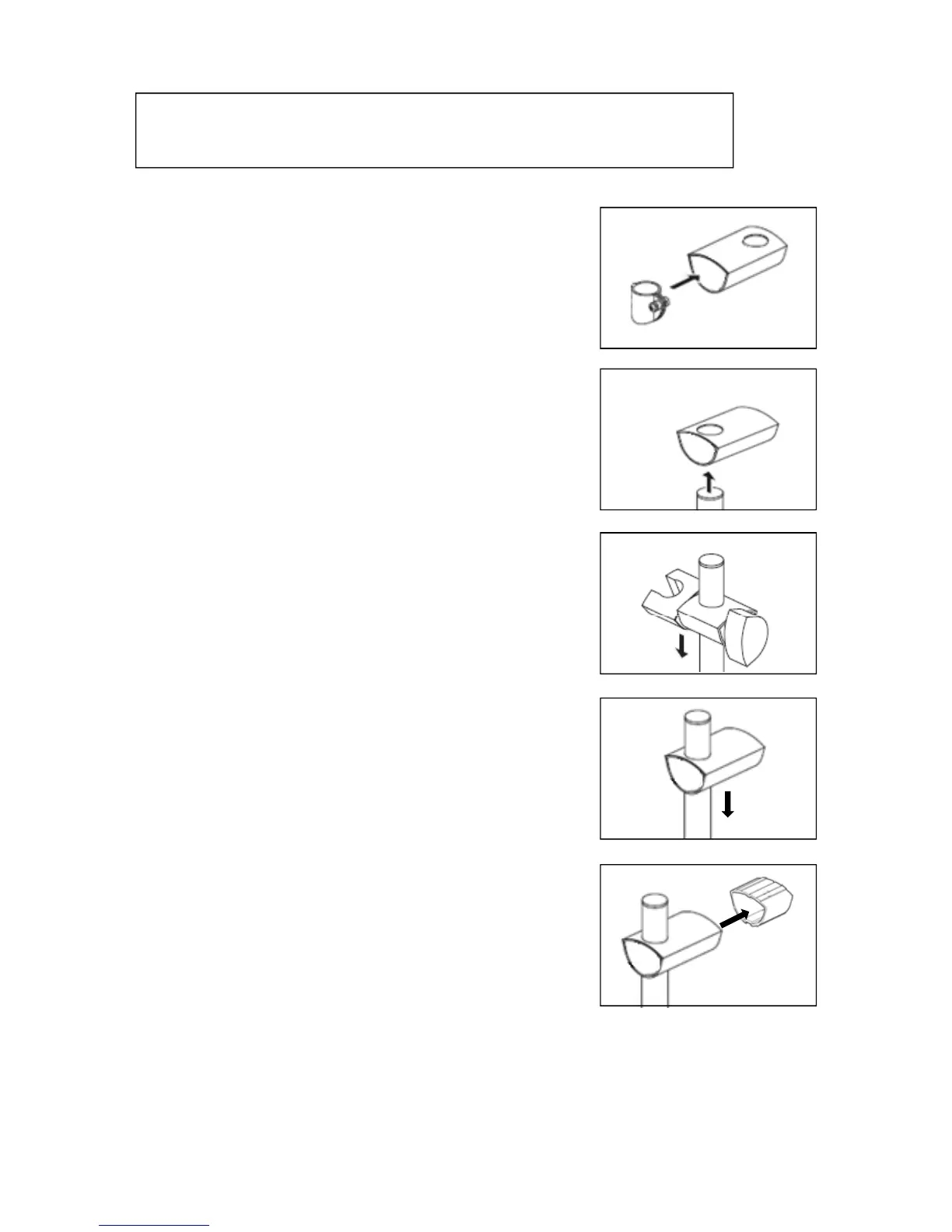

3. Insert rail clamps
3. Insert rail clamps3. Insert rail clamps
3. Insert rail clamps
Insert the rail clamps into both wall
brackets.
4. Insert riser rail
4. Insert riser rail4. Insert riser rail
4. Insert riser rail
Push the riser rail up through the bottom
wall bracket.
Push the slider down onto the riser,
ensuring it is the correct way up - as shown
opposite.
Then push the riser rail up through the top
wall bracket.
5. Tighten rail clamps
5. Tighten rail clamps5. Tighten rail clamps
5. Tighten rail clamps
Centre the riser rail within the wall brackets
and tighten both clamps onto the rail.
and tighten both clamps onto the rail.
6. Fit the riser to the wall
6. Fit the riser to the wall6. Fit the riser to the wall
6. Fit the riser to the wall
Slide the riser brackets over the bracket
fixings attached to the wall.
Tighten the grub screw on the underside of
both top and bottom wall brackets using a
2.5mm hexagonal key.
19
Need help?
Need help? Need help?
Need help? Give us a call on 0844 701 6273
0844 701 6273 0844 701 6273
0844 701 6273 and speak to one of our trained advisors.
