½" Basin & ¾" Bath Taps
½" Basin & ¾" Bath Taps½" Basin & ¾" Bath Taps
½" Basin & ¾" Bath Taps
1. Identify all components are present prior to starting installation.
2. Slide the plinth (8) and O-Ring (9) onto the threaded tail and install the taps to the basin.
3. Using the washer (10) and backnuts (11) secure the taps to the basin by tightening the
backnuts onto the threaded tails. A suitable spanner (not supplied) may be required to
fully tighten the backnuts (11).
4. Connect the hot and cold water supplies to the taps.
5. Turn on the water supplies and open both taps letting the
water flow for a few minutes to check all joints and
connections for any leaks.
2

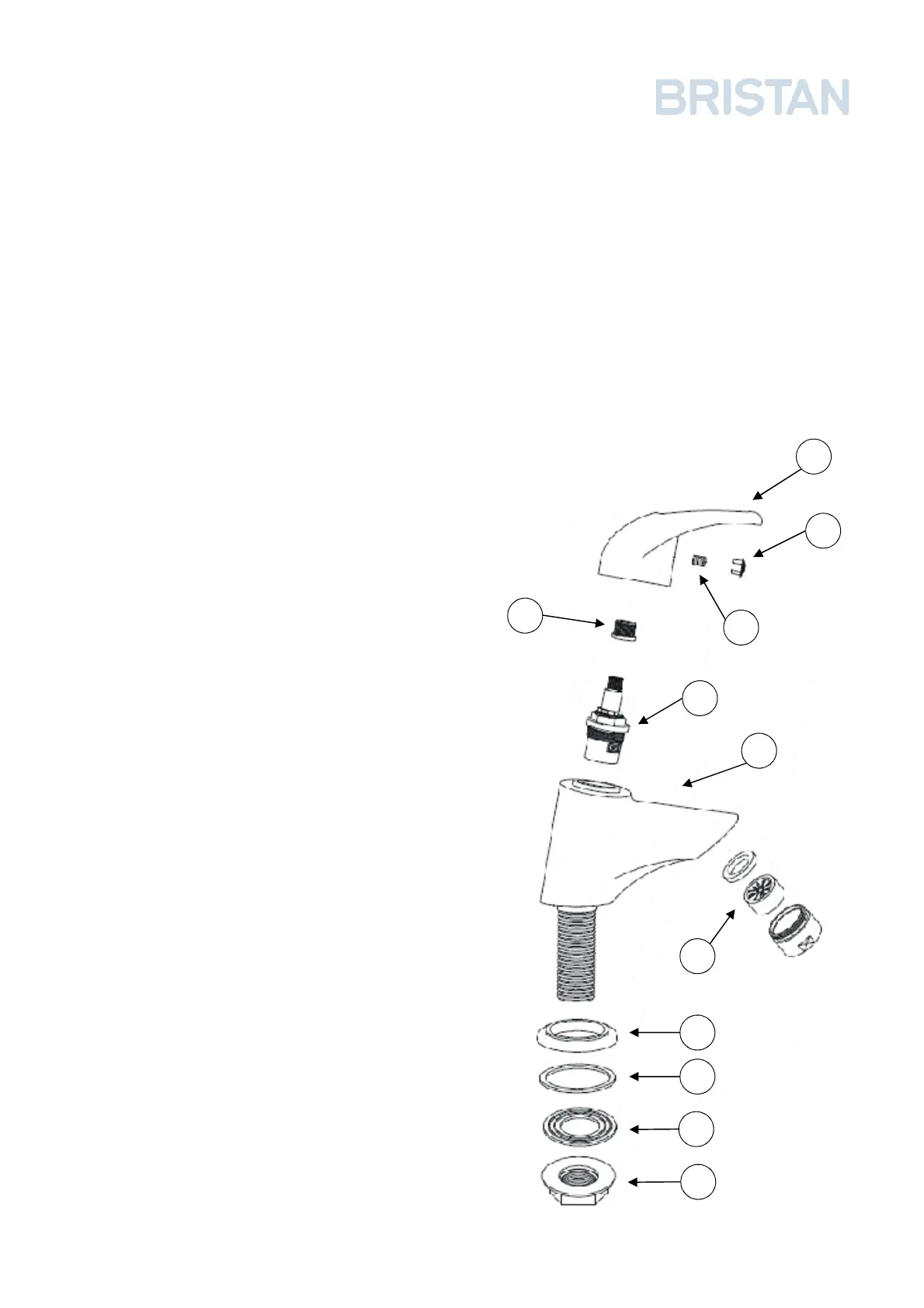

1. Handle x2
2.
Indice
x2
3
1
4
2.
Indice
x2
3. Grub Screw x2
4. Spline Adapter x2
5. Valve x2
6. Tap Body x2
7. Anti-Splash Assembly x2
8. Plinth x2
9. O-Ring x2
10. Washer x2
11. Backnut x2
7
07
5
6
8
9
10
11
