Model 671 User’s Manual INITIAL INSTRUMENT SETUP
Bristol Instruments, Inc. 8
1 Verify that the line power meets the requirements shown below.
• 95 to 260 VAC
• 47 to 63 Hz
• Protective Ground
2 Connect the line-power cord to the power input connector on the instrument’s back
panel (Figure 2.1).
3 Connect the other end of the line-power cord to the power receptacle.

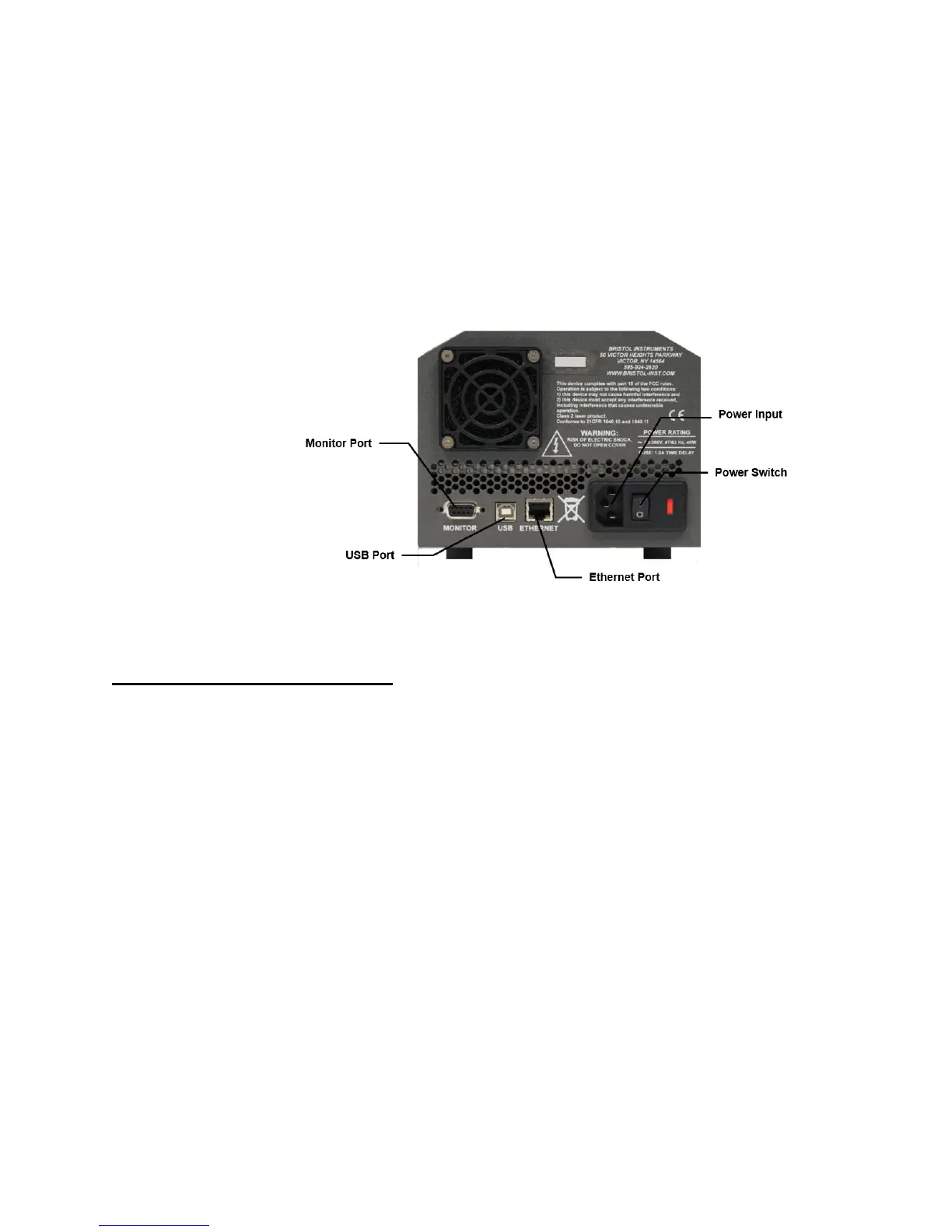

Figure 2.1: Back Panel
Signal Output Connections
The 671 Laser Wavelength Meter has the following connections for signal output and
communications. These connections are located on the instrument’s back panel
(Figure 2.1).
• USB Port - Interface to a PC for instrument control and data reporting.Ethernet
Port – Interface to a PC for instrument control and data reporting.
• DB-9 Monitor Port - Used to monitor the interference fringe pattern and
instrument timing signals with an oscilloscope. A full description is provided in
Appendix D.
1 Connect the USB interface cable to the USB port on the back panel of the instrument.
2 Connect the other end of the USB cable to a USB port on your PC.
