Brita Platinum Performance Series - Diagnostic Screen

27

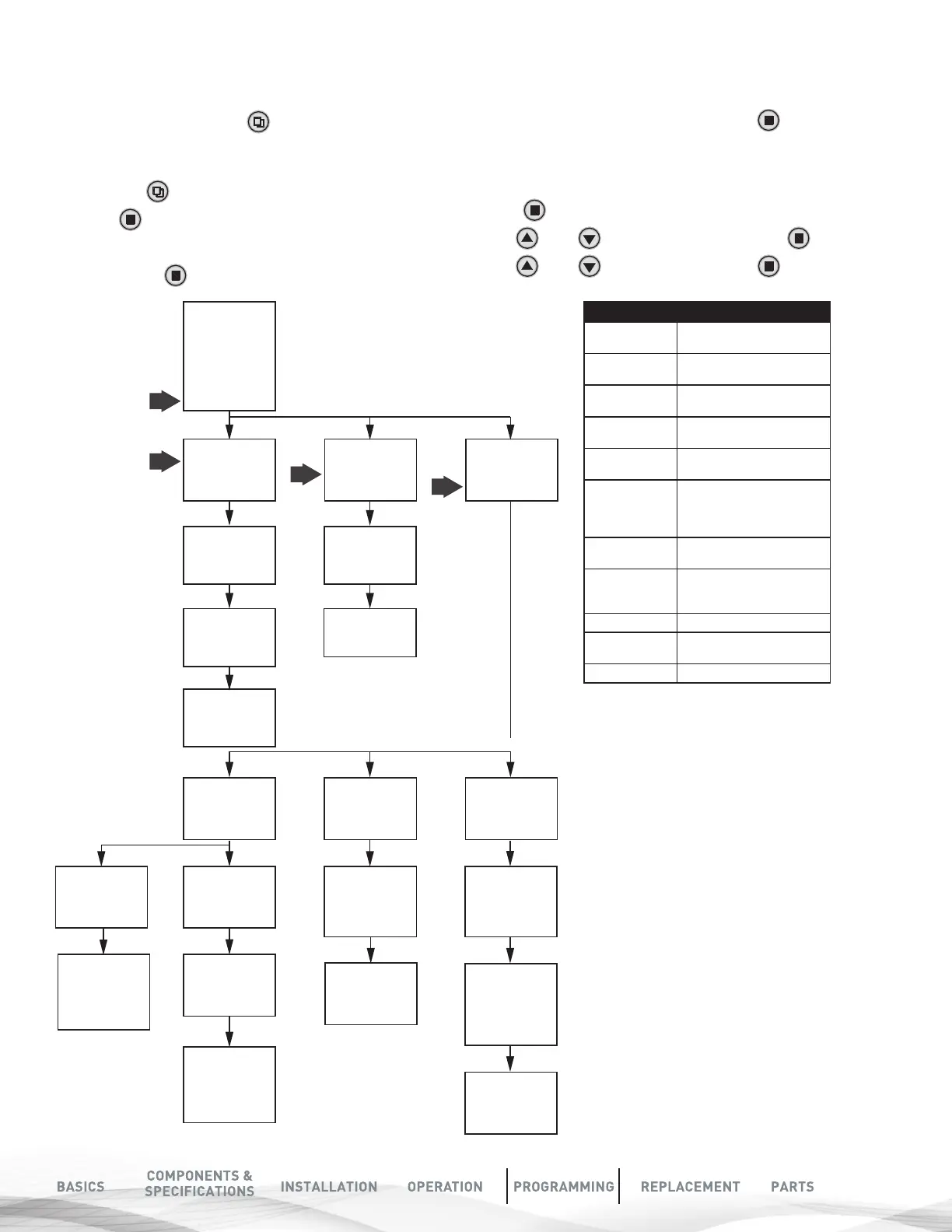

PRESS “MENU” KEY AND SCROLL TO “MAIN MENU”. THEN PRESS “SET” TILL IT
BEEPS. SCROLL TO ADVANCED MENU
DIAGNOSTIC SCREEN
Press “Menu” key . Press - to advance to Main Menu
Press “SET” or until you hear a beep.
Press - to advance to Advanced Menu
Press and hold “SET” 5 seconds or until you hear a beep.
Press - to advance to History Values
Press“SET” or until you hear a beep.
Press “+” or “-” to choose menu option. Press “SET” to enter.
Press “+” or “-” to change option. Press “SET” to accept.
PARAMETER DESCRIPTION
LAST REGEN
ON
Date of last system
regeneration.
USED SINCE
REGEN
Volume used since last
regeneration.
CURRENT
FLOW RATE
The current system
flow rate.
PEAK FLOW
RATE
The peak or highest flow
rate since last regeneration.
SOFTWARE
VERSION
The software version
programmed on the PCB.
RESERVE The calculated reserve
for each day based on the
highest days usage over the
past 4 weeks.
28 DAYS
HISTORY
The volume used for each
of the last 28 days.
USAGE
HISTORY
The usage since system
start up and from the last
reset.
TOTAL USED The total volume used.
TOTAL REGENS The total quantity of
regenerations.
TOTAL DAYS The total days in operation.
= Advanced Menu =

Resin Volume

Rell Rate

Regen. Mode

Backwash Override

Emergency Regen.

Regen. Cycles

History Values
= History Values =

General Diagnostics

Reserve

Usage History
= Usage History =

28 Days History

History Since Startup

History Since Reset
= Usage History =

28 Days History

History Since Startup

History Since Reset
= Usage History =

28 Days History

History Since Startup

History Since Reset
= History Values =

General Diagnostics

Reserve

Usage History
= History Values =

General Diagnostics

Reserve

Usage History
= 28 Days Reset =
NO YES
Press  To Cancel
Press

To Conrm
= History Since Startup =
Peak Flow Rate:
85.22 gpm
Total Used:
123456789 Gallons
= History Since Reset =
Peak Flow Rate:
85.22 gpm
Total Used:
123456789 Gallons
= 28 Days Reset =
Reset Conrm?
Press  To Cancel
Press

To Conrm
= History Since Reset =
Reset Conrm?
Press  To Cancel
Press

To Conrm
Total Regen.s:
0088
Total Days:
0325
= 28 Days History =
Sun Dec 01: 5800 Gal
Mon Dec 02: 5801 Gal
Sat Dec 28: 5806 Gal
= 28 Days History =
Sun Dec 01: 5800 Gal
Mon Dec 02: 5801 Gal
Sat Dec 28: 5806 Gal
= 28 Days Reset =
NO YES
Press  To Cancel
Press

To Conrm
Untreated water:
2123456 Gallons
Total Regen.s:
0088
Total Days:
0325
Last Regen. On:
17-Feb-2016, 02:00AM
Used Since Regen.
0051 Gallons
Sunday: 5800 Gal
Monday: 5801 Gal
Tuesday: 5802 Gal
Wednesday: 5803 Gal
Current Flow Rate:
15.22 gpm
Used Since Regen.
85.22 gpm
Thursday: 5804 Gal
Friday: 5805 Gal
Saturday: 5806 Gal
Peak Flow Rate on:
17-Feb-2016, 12:25PM
Software Version
1.10
Highest record in
last 4 weekdays
Page by page
display
Conrm and return
One by One
