REPLACE METER ASSEMBLY

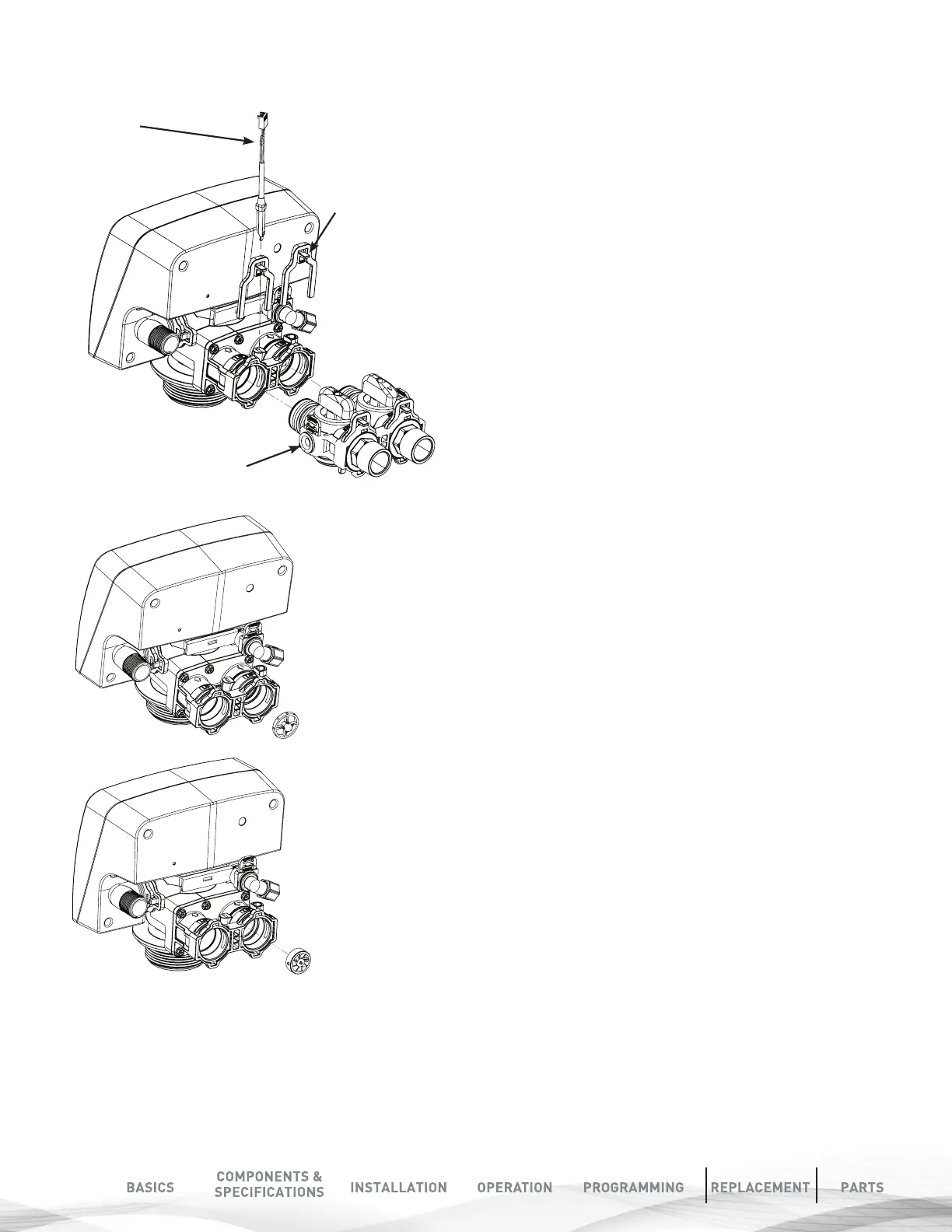

1. Disconnect the meter cable from the meter.
2. Disconnect the valve from bypass by removing clips
3. Remove the coupling adaptor from the valve
4. Remove the meter support and then the impeller out from
the coupling and clean it
5. Replace meter with the help of special tool and
re-assemble the removed components back in the section
Meter
Cable
Coupling Adaptor
3.
1.
2X Clips
2.
4.
5.
